Description
- Model: SP060S-MF2-20-1C1-2S
- Brand: Wittenstein Alpha (formerly Alpha Getriebe)
- Series: SP+ (High Performance Planetary Gearhead)
- Core Function: Precision speed reduction and torque multiplication for servo motors
- Product Type: Coaxial Planetary Gearbox
- Key Specs: 60mm frame size, 2-stage (MF2), 20:1 Ratio, Smooth output shaft (1C1)
- Ratio (i): 20:1
- Frame Size: 060 (60mm square flange)
- Configuration: MF (Standard Version, 2-stage)
- Output Shaft: Smooth shaft (no keyway), designated by “1C1”
- Torsional Backlash: Standard ≤4 arcmin (High-precision positioning)
- Max Acceleration Torque: Approx. 40–50 Nm (Depending on motor input speed)
- Input Interface: 2S (Standard motor mounting kit/coupling)
- Efficiency: ≥95% at full load
- Service Life: 20,000 hours (under nominal conditions)
- Lubrication: Synthetic oil, lubricated for life

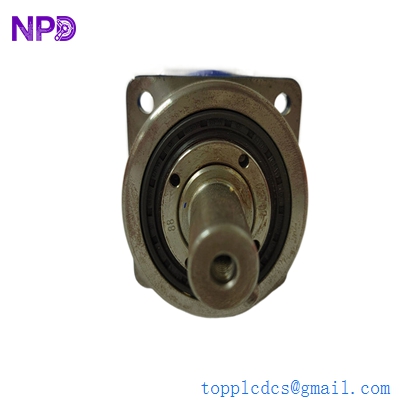

ALPHA SP060S-MF2-20-1C1-2S
Application Scenarios & Pain Points
The Alpha SP+ series is the industry standard for high-dynamic servo applications. It is engineered to handle rapid acceleration and deceleration cycles without developing mechanical “slop” or backlash. In precision robotics or CNC tooling, if a gearbox fails or begins to wear, you lose your “repeatability”—the machine might move to the correct spot once, but it won’t hit it 10,000 times in a row. The smooth shaft (1C1) version is specifically chosen for applications using shrink-disc couplings or bellows couplings to ensure zero-slip torque transmission.
1. Pick-and-Place Robotics
Providing the torque needed for high-speed delta robots or SCADA arms to move heavy payloads with sub-millimeter precision.
2. Packaging & Labeling Machinery
Ensuring the perfect synchronization of conveyors and labeling heads where even a 1-degree error results in misaligned packaging.
3. Semiconductor Manufacturing
Used in clean-room environments for wafer handling where smooth, vibration-free motion is mandatory.
Case Study: The “Lost Step” Mystery
Background: A medical device manufacturer was seeing inconsistent results on an automated filling line. The servo motor reported it was in the correct position, but the filling needles were slightly off-center, causing spills.
The Problem: The original gearbox (a lower-cost alternative) had developed “backlash creep.” Over six months, the internal gears had worn down, turning a 2-arcmin gearbox into a 10-arcmin gearbox. The servo controller couldn’t “see” this mechanical play because it was happening after the motor’s encoder.
The Solution: We supplied a Wittenstein Alpha SP060S-MF2-20. The Alpha series uses plasma-nitrided gears which are significantly harder than standard case-hardened gears. We verified the “2S” input coupling matched their specific Yaskawa servo motor frame.
The Result: The filling accuracy returned to within 0.05mm.
- Avoided Loss: Prevented the loss of expensive pharmaceutical reagents and eliminated the need for manual inspection.
- Takeaway: Not all planetary gearboxes are created equal. In high-cycle applications, the metallurgy of an Alpha gearbox is what prevents “backlash creep.”

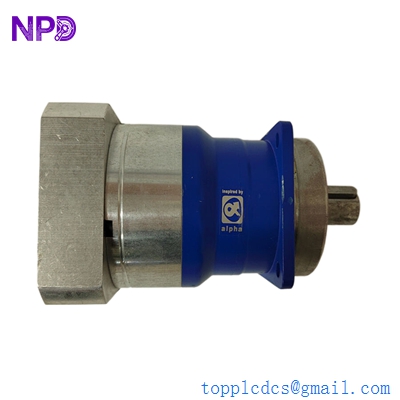

ALPHA SP060S-MF2-20-1C1-2S
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| LP060S-MF2-20 | SP060S-MF2-20 | ⚠️ Mounting | SP+ is higher precision than LP+ | Check flange dims |
| SP060S-MF2-20-0 | SP060S-MF2-20-2S | ✅ Direct | Newer motor mounting revision | Plug & Play |
| SP060-M02-20 | SP060S-MF2-20 | ✅ Direct | Updated “S” (Standard) designation | Plug & Play |
Engineer’s Advice: The “1C1” designation is critical—it means the output shaft is smooth. If your current gearbox has a keyway (typically “1E1”), you will need to change your coupling or add a key, but a smooth shaft is generally preferred for high-precision servo work to avoid imbalance at high speeds.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Gearbox Related? | Quick Check | Action |
| Increased Noise/Whining | Bearing Wear / Low Oil | ✅ High | Check for oil leakage at seals | Replace Gearbox |
| Shaft Slip | Coupling Loose | ❌ Low | Tighten motor-to-gearbox bolts | Re-torque coupling |
| Position Inaccuracy | Backlash Increase | ✅ High | Manually twist shaft; check play | Replace Gearbox |
| High Heat (>80°C) | Overloading / Duty Cycle | ⚠️ Medium | Verify torque vs. data sheet | Reduce cycle or upsize |
Expert Maintenance Tips:
- Alignment is Everything: ❗ Critical! When mounting the servo motor to the 2S input, ensure there is no radial force on the input pinion. Even a 0.1mm misalignment will cause the input bearing to overheat and fail within weeks.
- The “Shrink Disc” Check: Since this is a smooth shaft (1C1) unit, ensure your coupling is tightened to the exact Newton-meter spec provided by the coupling manufacturer. Smooth shafts rely entirely on friction for torque.
- Seal Inspection: Check the output shaft seal for “weeping” (a small amount of oil mist) every 6 months. A small amount is normal for lubrication, but a “drip” means the seal has failed due to contamination or heat.
