Description

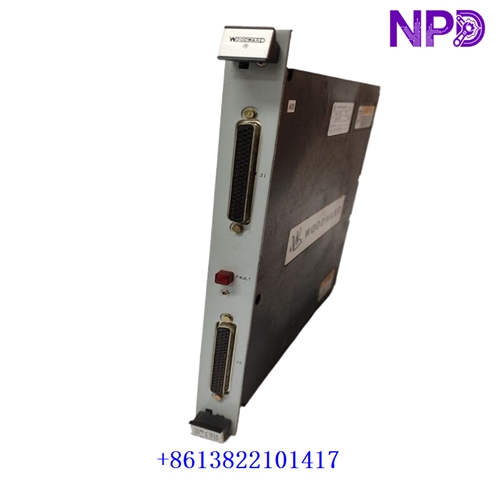

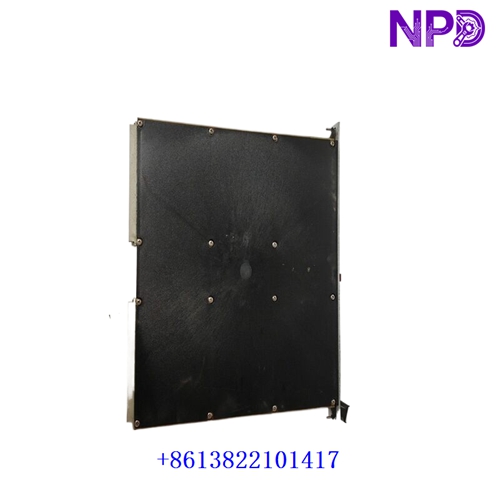

The Woodward 5466-258 is a high-density, simplex discrete input/output module engineered specifically for Woodward’s MicroNet Digital Control and Vertex-Pro platform architectures. It functions as a critical interface bridge between field-mounted switching devices (such as limit switches, valve position contacts, and alarm relays) and the central control processor, managing high-volume discrete signal exchange in power generation and turbine automation applications.
| Parameter | Specification |
| Brand / Manufacturer | Woodward |
| Model / Part Number | 5466-258 |
| Product Type | Simplex Discrete Input/Output (48/24 D I/O) Module |
| Application Series | Woodward MicroNet Plus / MicroNet TMR / Vertex-Pro Systems |
| Discrete Inputs | 48 channels (optically isolated, compatible with standard industrial 18–32 VDC logic levels) |
| Discrete Outputs | 24 channels (relay output configuration capable of directly driving external contactors or solenoids) |
| Field Termination | Interfaces via high-density discrete/analog cables to compatible Field Terminal Modules (FTMs) |
| Chassis Compatibility | Fits standard 8-slot or 14-slot MicroNet / Vertex-Pro rack assemblies |
| Product Status | Industrial Automation Spare Part / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Enclosure Integrity
Inspect the module faceplate, front fault LED indicator, edge connectors, and backplane pins for transit damage, bending, or corrosion.
- ☑ Backplane Slot Alignment
Ensure that the designated chassis slot is clean and free of particulate debris to prevent backplane pin damage during module insertion.
- ☑ Field Wiring & FTM Verification
Confirm that high-density cables linking the module to the Field Terminal Modules (FTMs) are securely locked and correctly designated prior to powering the rack.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Ensure that turbine control enclosures and cabinet climate control systems maintain stable operating temperatures and prevent excessive dust or humidity build-up.
- 🔌 Terminal & Cable Inspection
Periodically check plug-in cable connections and screw terminals on the associated FTM blocks to verify secure mechanical seating and prevent vibration-induced loosening.
Troubleshooting & Common Issues
- ⚠️ Discrete Input State Discrepancies
If field switch changes fail to register in the control logic, verify input power voltage levels (18–32 VDC range), inspect optical isolation channels, and check FTM cable continuity.
- ⚠️ Module Fault Indicator Lit
If the front-panel red fault LED activates, check internal module seating depth, review system diagnostic error codes via application software, and verify stable backplane power rails.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, configuration, and hardware replacement must be performed exclusively by certified technicians trained in industrial turbine and compressor control environments.
- ⚠️ Power & Signal Isolation
Always isolate system power and verify zero-energy state before inserting or removing the I/O module or working on connected field wiring terminals.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the channel capacity of the Woodward 5466-258 module?
A: It is a 48/24 discrete I/O configuration, supporting 48 optically isolated discrete inputs and 24 discrete output channels.
- ❓ Q2: Which control systems utilize this module?
A: It is designed primarily for Woodward MicroNet digital control systems and Vertex-Pro platforms used in gas/steam turbine management and industrial compressor controls.
