Description
Product Description

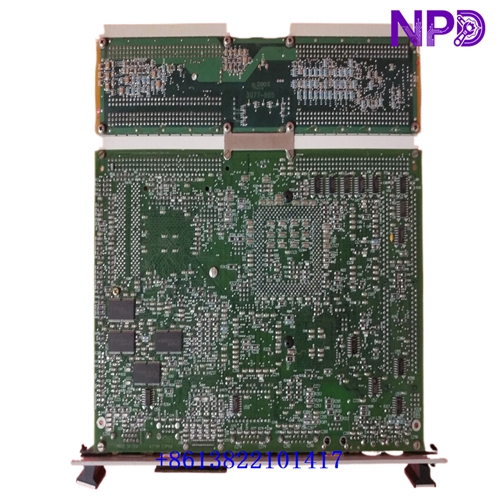

The Woodward 5466-409 is a Pentium CPU module for the MicroNet Digital Control system. It uses a 233 MHz processor with 64 MB RAM and Windows NT 4.0 for legacy industrial control applications. Designed for simplex operation, the module is installed in the MicroNet expansion rack and communicates through Ethernet and dual RS-232 serial ports. The system configuration requires compatible transceiver hardware and application software. Verify the installed firmware, software image, and chassis configuration before replacement.
WOODWARD 5466-409
Product Parameters and Datasheet
– Brand: Woodward
– Model: 5466-409
– Series: MicroNet Digital Control
– Product Name: Pentium CPU Module
– Processor: Intel Pentium, 233 MHz
– Memory: 64 MB RAM
– Operating System: Windows NT 4.0
– System Configuration: Simplex operation

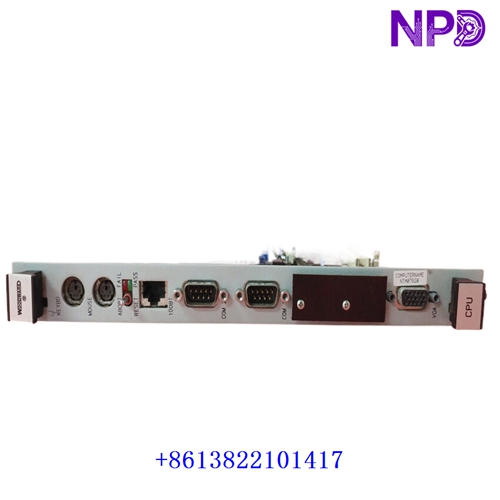

– Communication Interfaces: One Ethernet port and two RS-232 serial ports
– Installation: MicroNet expansion rack
– Associated Hardware: Compatible main and remote transceivers as required by the system configuration
– Service Tool: AppManager
– Operating Temperature: 0°C to 50°C
– Applicable Manuals: Woodward MicroNet manuals 26166V1, 26166V2, and 26166V3
– Product Status: Legacy / inactive; verify availability and condition
– Dimensions: Confirm against the applicable hardware manual
– Country of Origin: Verify from the product label
– Compatibility Note: Confirm software, firmware, transceiver, and chassis compatibility before ordering.
Recommended Woodward Models
1. 5466-407 — Pentium 233 MHz CPU module without operating system
2. 5466-416 — MicroNet Pentium CPU module with dual Ethernet option
3. 5466-419 — NetCon Pentium CPU module with 128 MB RAM
4. 5466-411 — MicroNet Ethernet interface
5. 5466-318 — MicroNet triple-modular-redundant kernel power supply
6. 5466-1000 — MicroNet Plus power supply, 24 VDC input
7. 5466-1001 — MicroNet Plus power supply, AC/DC input variant
8. 5466-353 — NetCon main chassis transceiver
9. 5466-354 — NetCon remote chassis transceiver
10. 5466-355 — NetCon remote chassis transceiver variant
11. 5466-332 — High-density analog I/O module
12. 5466-348 — NetCon 5000B serial I/O module
13. 5466-400 — Isolated 4–20 mA analog input module
14. 5466-404 — Digital speed sensor module
15. 5466-425 — High-density analog I/O module for TMR applications
Check the exact part number, system architecture, software image, and installed interface options before selecting a replacement.
