Description

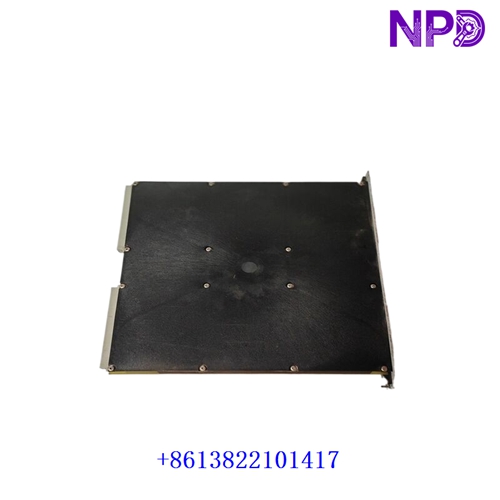

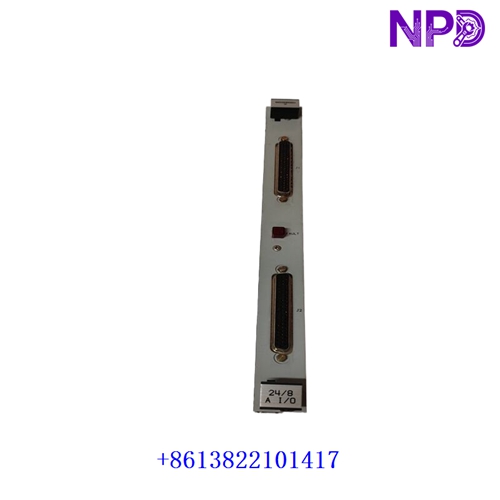

The Woodward 5466-425 is a high-density, microprocessor-based Analog Input/Output module designed for Woodward’s MicroNet and Vertex-Pro industrial control ecosystems. It acts as an advanced interface module for acquiring, conditioning, and processing critical analog variables (such as pressure, temperature, valve position, and speed signals) in power generation and turbine automation plants.
| Parameter | Specification |
| Brand / Manufacturer | Woodward |
| Model / Part Number | 5466-425 |
| Product Type | High-Density Analog I/O Module |
| Application Series | Woodward MicroNet / MicroNet Plus / MicroNet TMR Platforms |
| Channel Capacity | 24 Analog Input channels (divided into timed data collection banks) |
| Input Current Range | 0 to 25 mA (optimized for standard 4–20 mA loops) |
| Update / Scan Time | Approx. 5 ms system update cycle |
| Internal Burden Resistors | 200 \Omega precision input resistors |
| Chassis Compatibility | Standard MicroNet rack assembly (interfaces via Field Terminal Modules / FTMs) |
| Product Status | Industrial Automation Spare Part / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Faceplate Integrity
Inspect the outer module enclosure, front fault LED indicators, high-density backplane connector pins, and locking mechanisms for any transit damage, bending, or wear.
- ☑ Backplane Slot Alignment
Ensure that the target rack slot is clean, unobstructed, and free of foreign debris to prevent pin deformation during module insertion.
- ☑ FTM & Cabling Verification
Confirm that internal multi-core ribbon or shielded cables linking the module to the appropriate Analog Field Terminal Modules (FTMs) are securely seated and properly locked.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Verify that the control cabinet’s climate control systems maintain stable operating temperatures and keep ambient humidity levels within safe, non-condensing ranges.
- 🔌 Terminal & Wiring Inspection
Periodically check screw terminations and signal shielding on the corresponding FTM blocks to guarantee tight mechanical connections and eliminate ground loops.
Troubleshooting & Common Issues
- ⚠️ Module Fault LED Illuminated
If the front-panel fault LED remains active after system startup, check if the module is fully seated in the rack backplane, verify that the internal power rails are stable, and review application software diagnostics.
- ⚠️ Erratic Analog Readings or Signal Drift
If sensor inputs fluctuate unexpectedly, check loop power supplies, verify signal cable shielding/grounding integrity, and inspect configuration settings (such as factory calibration and resistor parameters in GAP programming blocks).
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, configuration, and hardware maintenance must be executed exclusively by authorized technicians trained in industrial turbine control architecture and electrical safety.
- ⚠️ Power & Loop Isolation
Always isolate system control power and safely disconnect external loop power sources before inserting or removing the module from an active rack backplane to prevent electrical arcing.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the Woodward 5466-425 module?
A: It functions as a high-density analog I/O card designed to handle a large volume of precise analog measurements (such as pressure, speed, and temperature loops) for turbine and engine control logic.
- ❓ Q2: How are input channels structured for data acquisition?
A: The 24 analog channels are sampled in sequenced data banks (for instance, timed collections occurring at set intervals after system ticks like the MFT pulse) to optimize processor performance and loop response times.
