Description
The Woodward 8440-1713 D is a sophisticated, high-end generator set controller from the easYgen-3200 series. This P1 (Package 1) model is designed to provide comprehensive control, protection, and monitoring for a wide variety of power generation applications, from simple stand-by power to complex parallel operations of up to 32 units.
Product Parameters (Datasheet)
- Model Number: 8440-1713
- Revision: D
- Series: easYgen-3200-P1
- Input Voltage: 12/24 VDC (8 to 40 VDC continuous)
- Power Consumption: Max. 12 W
- Measuring Voltage: 120/480 VAC (True RMS)
- Measuring Current: 1 A or 5 A (Secondary CT)
- Interface Ports: * CANbus (CANN-Open & J1939)
- RS-485 (Modbus RTU)
- RS-232 (Configuration)
- Ethernet (Modbus TCP)
- I/O Count: * 10 Discrete Inputs
- 12 Relay Outputs
- 3 Analog Inputs
- 2 Analog Outputs
- Protection Rating: IP66 (Front panel with gasket)
- Operating Temperature: -20°C to +70°C (-4°F to 158°F)

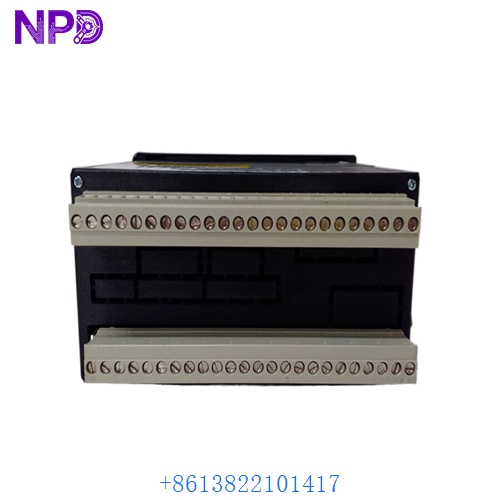

WOODWARD 8440-1713 D
WOODWARD 8440-1713 D
WOODWARD 8440-1713 D
Country of Origin
This controller is engineered and manufactured by Woodward, Inc. in Germany or the USA, adhering to global standards for power distribution and engine control.
Application Fields
The 8440-1713 D is a versatile unit utilized in:
- Emergency Standby Power: Ensuring seamless power transition for hospitals and data centers.
- Distributed Generation: Managing microgrids and local power production.
- Island Parallel Operation: Synchronizing and load-sharing between multiple generator sets.
- Mains Parallel Operation: Coordinating power between the grid and local generators (Peak shaving/Export).
- Marine Power: Controlling shipboard auxiliary engines and emergency generators.
- Rental Power: Providing flexible control for mobile power modules.
Product Usage Instructions
- Mounting: Install the unit into a standardized 1/4 DIN cutout in the control panel. Use the provided clamps to secure the housing and ensure the IP66 gasket is properly seated.
- Wiring: Connect the 3-phase voltage sensing and current transformer (CT) leads to the backplane. Ensure the CT polarity is correct to maintain accurate power and power factor readings.
- Communication: Connect the CANbus for J1939 engine communication and the RS-485/Ethernet link for remote SCADA or PLC monitoring.
- Configuration: Use the Woodward ToolKit software via the RS-232 or USB service port to set engine parameters, breaker logic, and synchronization windows.
- Testing: Utilize the “Test Mode” to simulate mains failure and verify the automated start/stop and synchronization sequence before going live.
Product Technical Description
Technically, the easYgen-3200 series acts as a “Single-Box” solution for power management. It integrates engine-generator control with advanced protection features, including over/under voltage, frequency, reverse power, and loss of excitation. The 8440-1713 D features Woodward’s proprietary “LogicsManager,” which allows users to program complex sequences using Boolean logic without needing an external PLC. It supports a wide range of language options and features a large graphical display for real-time visualization of the synchroscope and engine vitals.
Q&A (Common Questions)
Q: How many generators can I parallel using this controller? A: The easYgen-3200 series supports load sharing and synchronization for up to 32 generators in a single network via CANbus.
Q: Does this model support remote monitoring? A: Yes, it features an onboard Ethernet port supporting Modbus TCP, allowing for remote monitoring via a web browser or a central SCADA system.
Q: Can I use the 8440-1713 D with different engine brands (Cummins, CAT, Volvo)? A: Yes, it is engine-independent. It communicates via J1939 with almost all modern Electronic Control Units (ECUs) and can control legacy mechanical engines using its analog outputs and relays.
Q: What is the difference between Package 1 (P1) and Package 2 (P2)? A: P1 (this model) provides the core parallel and protection features. P2 typically adds more complex mains-parallel functions and advanced grid protection features.
Similar Model Recommendations
- Woodward 8440-1714 (easYgen-3200-P2 variant)
- Woodward 8440-2050 (easYgen-3500 series)
- Woodward 8440-1934 (easYgen-2500 series)
- Woodward 8440-1800 (LS-5 series Circuit Breaker Controller)
- Woodward 8444-1018 (High-end easYgen-3200 series revision)
For technical support or to request a quote for the Woodward 8440-1713 D, please contact our power management specialists.
