Description

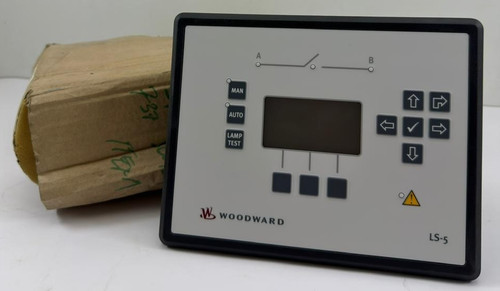

The Woodward LS-521 (8440-2150A) is a highly advanced Circuit Breaker Control Module designed for power management in complex utility and industrial generation systems. It serves as a sophisticated interface between the generator controller and the circuit breaker, providing precise synchronization, protective relaying, and monitoring. This module is a key component in the Woodward easYgen-3000™ series ecosystem, allowing for reliable and automated breaker operations, such as synchronizing, dead-bus closing, and peak shaving.
Key Technical Specifications
- Primary Function: Dedicated breaker control and synchronization for power generation applications.
- Compatibility: Integrates seamlessly with the easYgen-3000 series controllers and Woodward’s power management network.
- Synchronization: Features automatic synchronization (voltage, frequency, and phase angle matching) for smooth connection to a live bus.
- Monitoring: Real-time metering of bus and generator electrical parameters (Voltage, Frequency, Phase Angle).
- Communication: Includes CAN bus interfaces for high-speed data exchange with Woodward controllers and Ethernet/Modbus for SCADA integration.
- Protective Features: Includes integrated ANSI-compliant protection functions such as under/over-voltage, under/over-frequency, and synch-check.
- Logic Execution: Supports customizable breaker logic, including auto-reclosing, command interlocking, and manual/automatic mode switching.
- Hardware Interface: Equipped with high-visibility LEDs for status (Open/Closed/Tripped) and local diagnostic feedback.
- Construction: Designed for harsh industrial environments with vibration resistance and broad temperature operating ranges.
- Scalability: Designed for multi-breaker configurations, enabling sophisticated load-sharing and power management across multiple generator sets.
Integration and Application
The LS-521 (P1 variant) is intended for use in applications where the breaker must be managed as a distinct control entity, often where the main engine controller is physically separated from the circuit breaker cabinet. Key roles include:
- Synch-Check Supervision: Acting as a safety interlock to prevent the breaker from closing if the generator and grid are out of phase.
- Load Management: Coordinating with Woodward’s power management software to execute peak shaving or base-loading commands.
- Event Logging: Providing a detailed timestamped history of all breaker operations and fault events for post-incident analysis.
Related Woodward Power Management Components
To maintain a high-performance power plant control scheme, the 8440-2150A is typically integrated with:
- easYgen-3200XT: The primary engine-generator controller that issues the commands to the LS-521.
- Woodward Power Management Network (CAN): The digital bus that links the generator controllers to the LS-521.
- Potential Transformers (PTs): Required for the module to sense bus and generator voltages for synchronization.
- Current Transformers (CTs): Used for measuring current for metering and protective relaying.
- Circuit Breaker Auxiliary Contacts: Essential for providing the module with physical feedback on the breaker’s open/closed state.
- ToolKit Software: The engineering suite used to configure the LS-521 synchronization parameters.
- Remote HMI: For centralizing breaker status and control on a plant-wide graphical dashboard.
- Power Supply Modules: Redundant 24VDC supplies to ensure breaker control availability during outages.
- Interconnection Relays: Auxiliary relays used for physical breaker trip/close coil activation.
- Analog I/O Modules: If the application requires additional monitoring of environmental conditions (e.g., ambient temp, fuel levels).
