Description

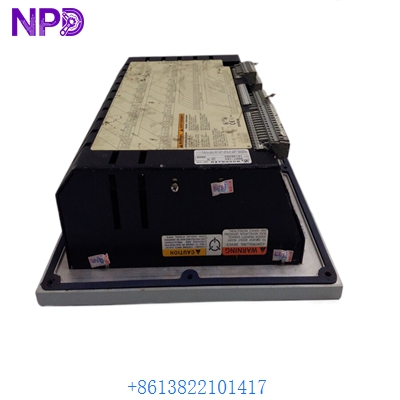

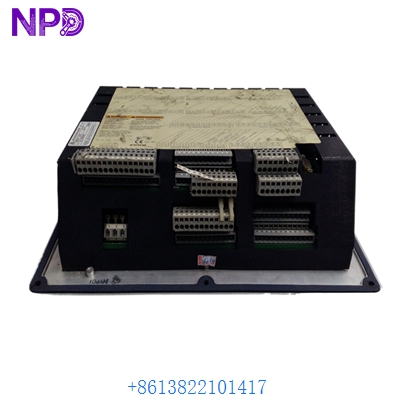

The 9907-164 is a 2301A series electronic load sharing and speed control unit designed for use with diesel or gas engines and steam or gas turbines in power generation and mechanical drive applications.
Technical Parameters
- Model Series: 2301A Load Sharing & Speed Control
- Input Voltage: 18-40 VDC (24V Nominal)
- Speed Range: 500 Hz to 25,000 Hz
- Output Signal: 0-200 mA Actuator Current
- Control Type: Isochronous or Droop Load Sharing
Dimensions & Weight
- Width: 190 mm
- Height: 230 mm
- Depth: 40 mm
- Net Weight: 1.2 kg (2.65 lbs)
Environmental Certifications
- Compliance: CE Marked, CSA Certified for Class I, Div 2
- Operating Temp: -40°C to +70°C
- Shock/Vibration: MIL-STD-810C tested
- Humidity: 95% at 38°C (non-condensing)
Application Fields
- Parallel generator set operations
- Marine propulsion and auxiliary power
- Industrial power plants and microgrids
- Compressor and pump station control
Product Q&A
- Q: Is this a Low Voltage or High Voltage model?
- A: The 9907-164 is a Low Voltage model, operating on a 24V DC power supply.
- Q: Does it support forward or reverse acting actuators?
- A: It is field-selectable for both forward and reverse acting actuators.
- : What type of speed sensor is required?
- A: It requires a Magnetic Pickup (MPU) with a minimum 1.0 Vrms output.
