Product Description

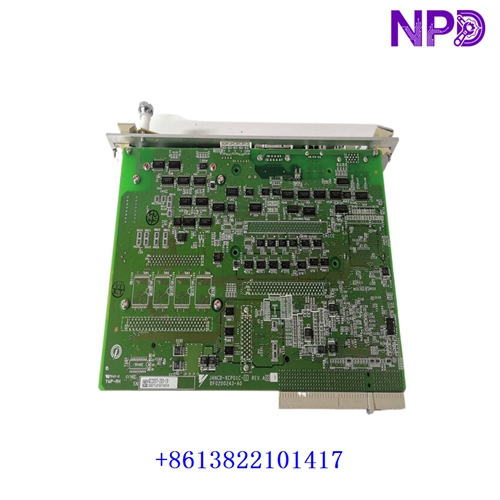

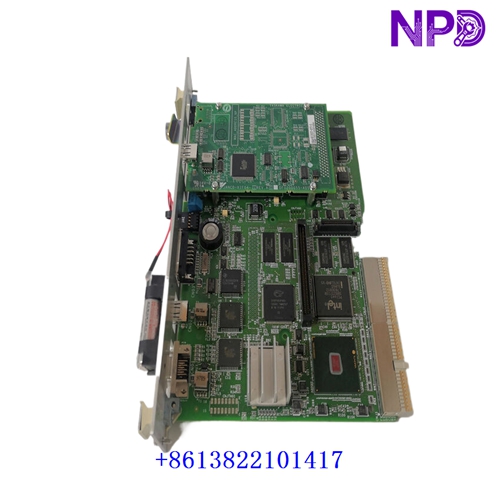

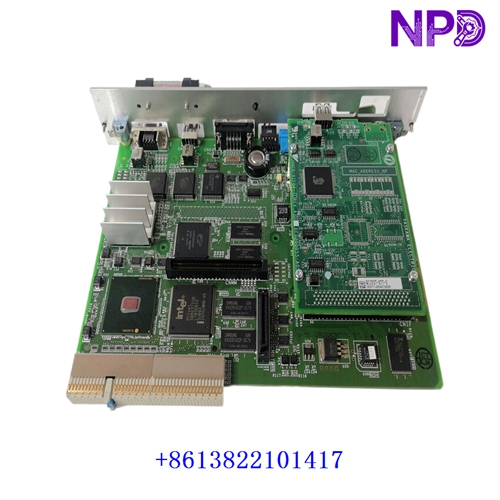

The Yaskawa JANCD-XCP0101C-1 is identified in industrial spare-parts listings as a control circuit board associated with Yaskawa automation and robot-control equipment. Control boards in this family provide processing and interface functions that support communication between the robot controller and its associated hardware.
This part number closely resembles the Yaskawa JANCD-XCP01C-1 control PCB used in Motoman XRC robot controllers, but the codes are not identical. Confirm the complete part number printed on the board, controller model, revision, and connector arrangement before ordering or installing a replacement. Do not assume the two models are interchangeable.
JANCD-XCP0101C-1
Product Parameters and Datasheet
Brand: Yaskawa
Model: JANCD-XCP0101C-1
Product Name: Robot Control Circuit Board
Product Series: JANCD-XCP family; exact series designation requires confirmation
Product Type: Industrial Control PCB
Application: Robot controller and industrial automation maintenance
Controller Compatibility: Verify the exact Yaskawa controller model and board revision
Processor: Not independently verified for this exact part number
Memory: Not independently verified for this exact part number
Communication Interfaces: Verify the physical interfaces and supported protocols from the board documentation
Installation: Controller-specific internal board slot; confirm mounting and connector layout
Dimensions: Not verified; consult the applicable mechanical drawing
Weight: Not verified; confirm the supplied unit
Place of Manufacture: Verify from the product label
Country of Origin: Verify from the product label
Power Requirements: Supplied by the compatible controller; verify the board’s electrical specifications
Product Status: Availability and condition to be confirmed
Discontinued: Current lifecycle status not verified
Compatibility Note: Compare the full model number, suffix, PCB revision, connector locations, firmware requirements, and controller model against the original board before purchasing. Use qualified personnel and follow the manufacturer’s power-isolation and electrostatic-discharge precautions.
Recommended Yaskawa Models
1. JANCD-XCP01C-1 — Control PCB associated with Motoman XRC robot controllers; verify the model-code difference carefully.
2. JANCD-XCP01-1 — Earlier XRC system control board; confirm revision and controller compatibility.
3. JANCD-XCP02B-1 — XRC sensor board; verify its specific application.
4. JANCD-XCP02B-2 — Conveyor-tracking board for applicable Yaskawa robot systems.
5. JANCD-XIF04-1 — Interface board used in certain XRC controller configurations.
6. JANCD-XEW01-1 — Robot welding interface board for compatible systems.
7. JANCD-XEW02 — Related Yaskawa robot interface board; verify exact specifications.
8. JANCD-GCP01 — Legacy control board for selected Yaskawa systems.
9. JANCD-GIO02 — Yaskawa I/O circuit board.
10. JANCD-SP17B — Yaskawa printed circuit board for compatible equipment.
11. JANCD-GSR01 — Yaskawa control-system circuit board.
12. JANCD-GMM12 — Yaskawa circuit board assembly.
13. JANCD-EIO02B — Yaskawa multi-component I/O board.
14. JANCD-XSL02 — Yaskawa circuit board; confirm system application.
15. JANCD-XTU01 — Yaskawa power-related circuit board; verify controller compatibility.
These are related Yaskawa board references, not guaranteed direct replacements. Match the original part number and robot-controller configuration before selecting an alternative.
