Description
- The YASKAWA JGSM-06 (Part Number 73051-00060) is a specialized communication interface card designed for Yaskawa industrial control systems. It facilitates high-speed data transmission between controllers and peripheral devices using the Memobus protocol, ensuring synchronized operation in complex multi-axis motion control applications.
Product Parameters
- Communication Protocol: Memobus (Modbus Compatible)
- Interface Type: RS-485 / RS-422
- Baud Rate: Up to 76.8 kbps
- Power Consumption: 250 mA at 5 VDC
- Station Addressing: 1 to 31 (via DIP switches)
- Connector Type: 5-pin or 9-pin terminal block
Product Specifications
- Origin: Japan
- Discontinued Status: Yes (Legacy Component)
- Weight: 0.18 kg
- Dimensions: 130 x 80 x 25 mm
- Datasheet: Available upon request

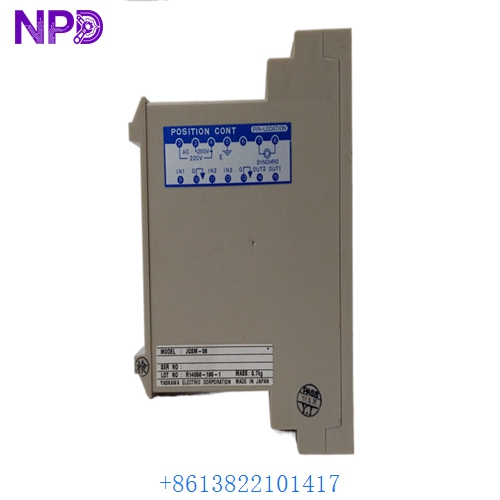

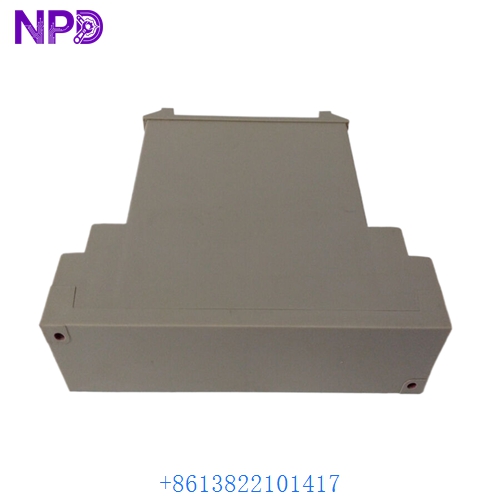

Yaskawa JGSM-06 73051-00060
Yaskawa JGSM-06 73051-00060
Yaskawa JGSM-06 73051-00060
Application Fields
- Robotics: Coordinating communication between robot controllers and external PLCs.
- CNC Machining: Data exchange for spindle drives and tool changers.
- Conveyor Systems: Synchronized speed control for distributed motor drives.
- Material Handling: Interfacing automated storage and retrieval systems (AS/RS).
Product Q&A
Q: What is the primary function of the JGSM-06 module? A: It acts as a gateway, allowing Yaskawa hardware to send and receive control commands over a Memobus network.
Q: How is the station address configured on this module? A: The address is typically set manually using onboard DIP switches located on the side or back of the card.
Q: Is it compatible with modern MP-series controllers? A: This is a legacy module often found in older systems; for MP-series integration, a conversion gateway or newer communication option card is usually required.
