Description
YASKAWA JGSM-06 is a position controller module from Yaskawa’s VS System series for industrial automation and motion control applications.
Product Overview
The JGSM-06 converts synchro transmitter (selsyn) signals into proportional DC voltage outputs for precise position feedback.
It features front panel controls and power status LED for easy operation and monitoring.

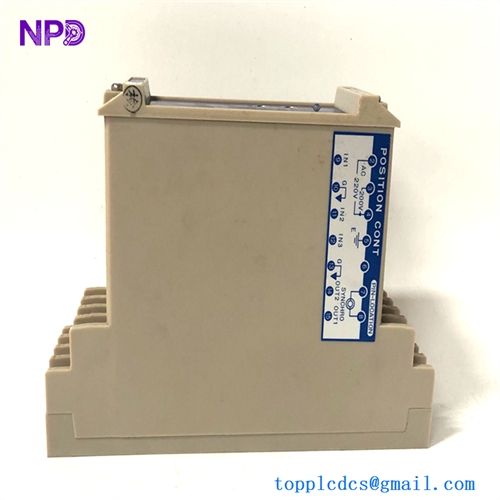

YASKAWA JGSM-06
Key Specifications
| Parameter | Details |
|---|---|
| Type | Position controller (selsyn to DC converter) |
| Input | Synchro transmitter signals (60° rotation) |
| Output | DC voltage proportional to angle |
| Signal Mixing | Minimizes deviation from reference signal |
| Power Supply | 24 V DC standard |
| Interfaces | Front panel controls, status LED |
| Dimensions | Compact DIN rail/rack mount |
| Operating Temp | 0°C to +55°C |
| Weight | Approx. 1.4 lbs (0.65 kg) |
The datasheet details synchro input specifications and DC output characteristics.
Origin
Manufactured by Yaskawa Electric Corporation in Japan.
Applications
- Automatic control systems requiring position feedback.
- VS System module integration for multi-axis coordination.
- Industrial machinery with synchro-based position sensing.
Usage Method
- Mount in control cabinet on DIN rail or rack system.
- Connect synchro transmitter (selsyn) input to field device.
- Wire DC output to PLC analog input or control system.
- Apply 24 V DC power and verify power LED status.
- Adjust front panel controls for signal calibration if required.
Technical Notes
Designed as system control device combining with other VS modules for complete automation solutions.
Similar Models
| Model | Description |
|---|---|
| JGSM-04 | Earlier position controller version |
| JGSM-08 | Enhanced position controller |
| VS-626PC5 | VS System main controller |
| VS-616PC3 | Compact VS controller |
| CP-716PC5 | Multi-axis position controller |
