Description

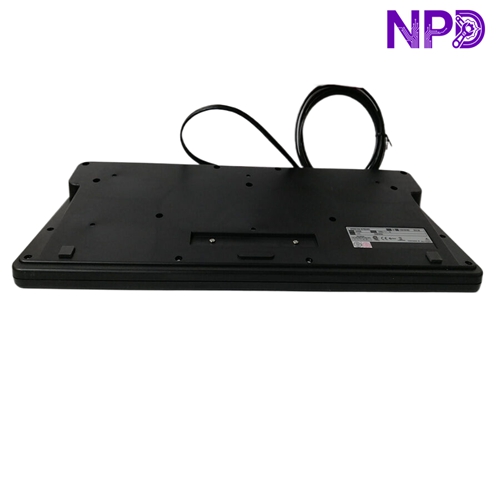

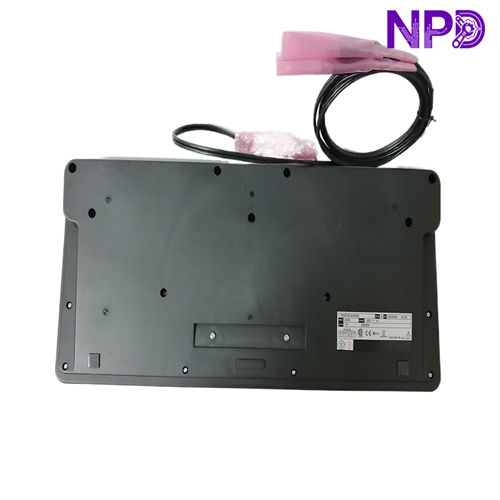

The YOKOGAWA AIP830-111 is a high-performance Integrated Operation Keyboard designed specifically for the CENTUM VP Distributed Control System (DCS). It serves as the primary tactile interface for process operators, allowing for precise control and monitoring of complex industrial plant operations. With its ergonomic layout, dedicated function keys, and high-durability construction, the AIP830 provides a seamless and responsive user experience, enabling operators to manage alarm responses, setpoint adjustments, and control loops with high efficiency.
⚙️ Technical Specifications
- Device Type: Operator Keyboard (Human-Machine Interface)
- System Compatibility: YOKOGAWA CENTUM VP DCS
- Input Method: Tactile membrane/mechanical keys with high-durability switches
- Key Configuration: Dedicated process control keys, numeric keypad, and programmable function keys
- Connectivity: High-speed interface to the Human Interface Station (HIS)
- Communication Interface: Dedicated port for seamless integration with HIS workstation
- Power Consumption: Low-voltage power supply via workstation connection
- Construction: Industrial-grade, dust-resistant, and spill-resistant design
- Operating Temperature: 0∘C to +50∘C
- Mounting: Desktop or console-flush mounting options
📋 Recommended YOKOGAWA CENTUM VP Series Components
- HIS (Human Interface Station): The main workstation PC for process visualization
- AIP827: Alternative operator keyboard model for specific console setups
- AIP831: Integrated operation keyboard with extended features
- FCS (Field Control Station): Core controller for managing process I/O
- CP461: Processor module for high-speed control execution
- AAI141: Analog input module for sensor signal acquisition
- AAO141: Analog output module for control element adjustment
- ADI141: Digital input module for status monitoring
- ADV141: Digital output module for command signaling
- Vnet/IP Switch: Network communication hardware for DCS data transmission
