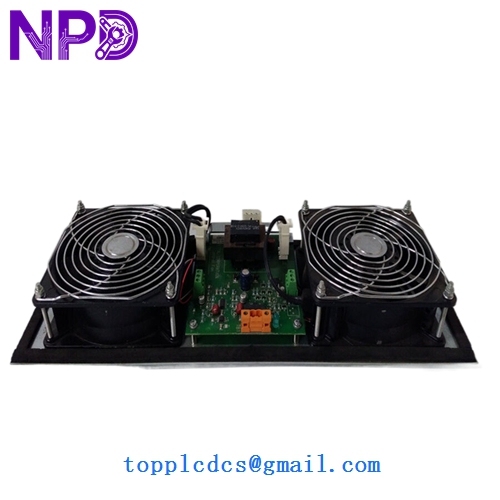

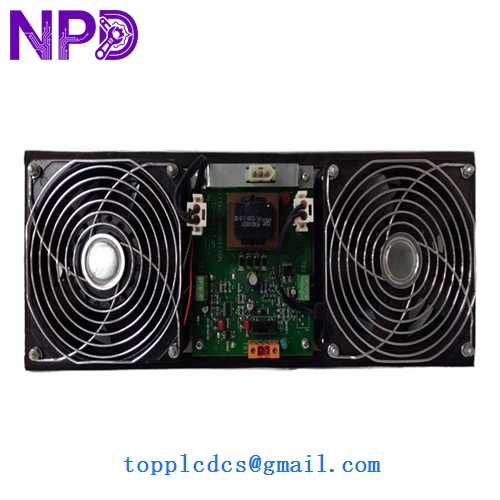

Description
- Model: 51303940-150
- Brand: Honeywell (USA)
- Series: TDC 3000 / TPS / Experion PKS (High-Level Process Manager)
- Core Function: Interfaces high-level analog field signals (1–5V or 4–20mA) with the controller.
- Product Type: High-Level Analog Input (HLAI) Module
- Key Specs: 16 Channels | 1-5V DC Input | 24V DC Field Power
- Number of Channels: 16 (Single-ended or Differential depending on FTA)
- Input Signal Range: 1 to 5 VDC (Standard) or 4 to 20 mA (with 250 Ω resistor at FTA)
- A/D Resolution: 12-bit to 16-bit (System configuration dependent)
- Input Impedance: > 10 MΩ
- Common Mode Rejection: 60 dB @ 60 Hz
- Power Requirements: +5 VDC and +24 VDC from the power supply backplane
- Accuracy: ±0.05% of Full Scale
- Isolation: Galvanic isolation via opto-couplers to the I/O bus
- Compatibility: Used with High-Level Process Manager (HPM), Advanced Process Manager (APM), and EHPM systems.
Application Scenarios & Pain Points
The 51303940-150 is a staple in Honeywell legacy and hybrid systems. It is the primary “ear” of the TDC 3000 system, listening to pressure transmitters, flow meters, and level sensors across the plant. Because many refineries and chemical plants still run on TDC 3000 architecture, these modules are essential for maintaining operations. A failure in an HLAI card can cause “Bad PV” (Process Variable) alarms across 16 different loops, potentially causing a DCS to lose control of an entire distillation column or reactor section.
Typical Application Scenarios:
- Refinery Process Monitoring Collecting 4-20mA signals from crude units and crackers to feed the HPM (High-Level Process Manager).
- Power Plant Instrumentation Monitoring boiler feed water levels and steam pressure where high-density I/O is required.
- Legacy Migrations Serving as the I/O interface in EHPM (Enhanced High-Level Process Manager) cabinets during a phased migration to Experion PKS.
Engineering Case Study: The “Full Rack” Fault
Background: A petrochemical plant in Texas experienced a sudden loss of 16 critical temperature points. The DCS displayed a “Card Fail” status for the HLAI module in Slot 4 of the I/O file.
The Problem: The 51303940-150 had suffered a localized component failure in its +5V logic regulator. Because this card was part of a non-redundant I/O link, the operator lost all visibility of a cooling tower’s return temperatures.
The Solution: We provided a replacement 51303940-150. Since this is a “smart” I/O card, it holds its calibration constants but receives its specific channel configuration from the HPM memory upon boot-up.
Result: The customer hot-swapped the module. Within 30 seconds, the HPM pushed the configuration to the card, the “OK” LED went steady green, and all 16 process variables returned to the operator console. A potential emergency shutdown was avoided.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 51303940-150 | 51303940-100 | ⚠️ Hardware | Older manufacturing revision | Check firmware compatibility |
| 51303940-150 | 51303940-250 | ✅ Direct | Newer/Enhanced revision | Drop-in replacement |
| 51303940-150 | 51403479-150 | ❌ Incompatible | Low Level Analog Input (LLAI) | Designed for T/C and RTD only |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 51303940-150 | Quick Check | Action |
|---|---|---|---|---|
| “Card Fail” Alarm | Logic failure | ✅ High | Check “Status” LED on the card faceplate. | Replace module if LED is Red/Off. |
| PV stuck at 0% or 100% | Blown FTA fuse | ⚠️ Medium | Check 24V supply at the Field Termination Assembly. | Replace 1/16A fuse on FTA. |
| Drifting Readings | A/D Converter aging | ✅ High | Use a fluke meter to compare mA to DCS value. | Recalibrate channel or replace card. |
| Multiple Channel “Bad” | Cable/Backplane | ⚠️ Medium | Check the 50-pin cable to the FTA. | Re-seat cable or check for bent pins. |
Engineer’s Pro-Tip: “When you’re dealing with the 51303940-150, always remember that the 250-ohm dropping resistor (which converts 4-20mA to 1-5V) is located on the FTA (Field Termination Assembly), not on the card itself. If you’re getting a reading of 0.0 but your field meter shows 12mA, check the FTA fuse first. Also, if you’re swapping this card in a live system, make sure the ‘I/O Link’ is stable. A loose 50-pin ribbon cable can cause the HPM to drop the whole link, not just one card. If you need the specific pinout for the 50-pin connector, I have the Honeywell ‘I/O Installation’ manual ready to go.”
I can also provide the matching FTA (Field Termination Assembly) or the 50-pin interface cables if your current hardware shows signs of corrosion or damage.
