Description
The Alstom 502476L (Assembly Number KCEU14201F51PEB) is a high-performance Drive Control Unit (DCU) utilized in Alstom’s industrial drive systems and rolling stock traction control applications. It serves as the primary processing hub for regulating power conversion and motor torque.
Product Parameters (Datasheet)
- Model Number: 502476L
- Assembly Code: KCEU14201F51PEB
- Series: Alstom ALSPA / Traction Drive Series
- Processor Type: Integrated DSP/FPGA-based control logic
- Input Voltage: Internal DC supply (typically 15V / 24V derived from the rack backplane)
- Communication Interface: Fiber-optic links for high-speed PWM firing and WorldFIP or Ethernet for system-level control
- I/O Capacity: High-speed digital inputs for encoder feedback and analog inputs for current/voltage sensing
- Protection: Conformal coating (PEB/PEB designated) for resistance against industrial dust and moisture
- Operating Temperature: -25°C to +70°C (Extended industrial/traction range)
Country of Origin
This control module is engineered and manufactured by Alstom (Power and Transport divisions) in France, designed to meet stringent European railway and industrial safety standards.

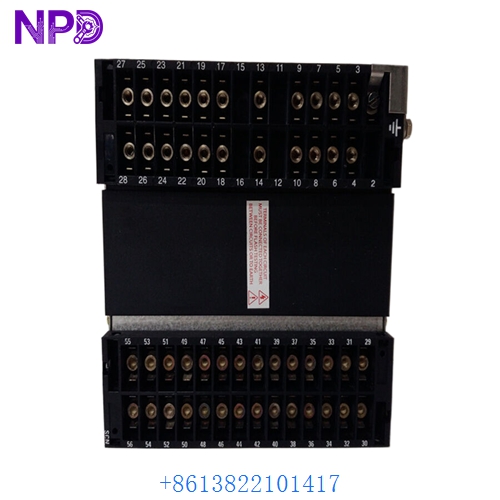

ALSTOM 502476L KCEU14201F51PEB

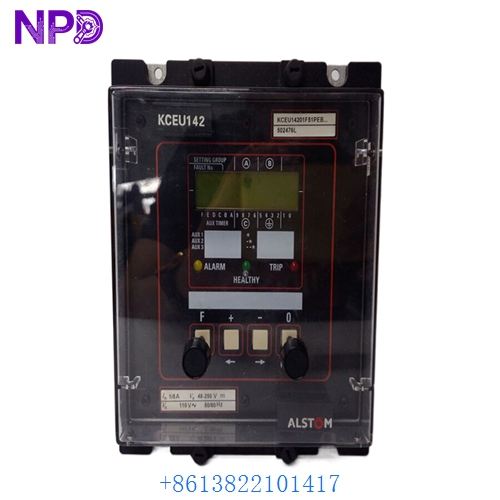

ALSTOM 502476L KCEU14201F51PEB

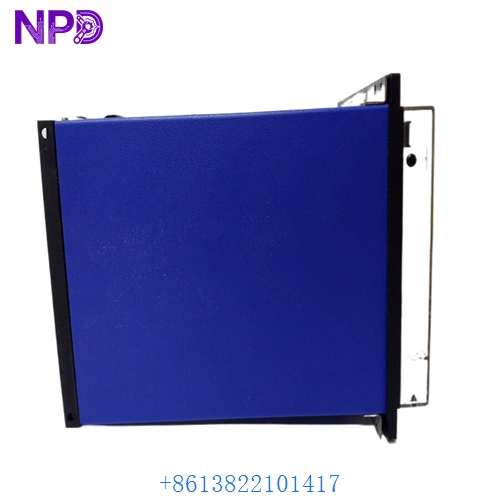

ALSTOM 502476L KCEU14201F51PEB
Application Fields
The KCEU14201F51PEB is a critical component in high-power energy management:
- Rail Traction: Controlling AC/DC traction motors in locomotives and high-speed trains (TGV/Eurostar series).
- Power Electronics: Managing IGBT firing sequences in large-scale VFDs (Variable Frequency Drives).
- Renewable Energy: Integrated into wind turbine converters for grid synchronization.
- Marine Propulsion: Coordinating electric motor drives for large vessel propulsion systems.
- Heavy Industry: Controlling high-power motors in steel rolling mills and mining hoists.
Product Usage Instructions
- Installation: Insert the module into the designated ALSPA or Traction control rack. Ensure the extraction levers are fully locked to engage the backplane pins.
- Fiber-Optic Connection: Connect the fiber-optic cables to the TX/RX ports. These links are used for high-speed switching commands; ensure the fiber ends are clean to prevent signal attenuation.
- Grounding: Verify that the rack chassis is properly grounded. The 502476L uses the chassis ground for EMI shielding of sensitive control circuits.
- Firmware Verification: Before operation, confirm that the firmware version on the KCEU card matches the system configuration using the Alstom maintenance tool (e.g., P80).
- ESD Precautions: This board contains high-density CMOS components. Use a grounded wrist strap whenever handling the module outside of its rack.
Product Technical Description
The KCEU14201F51PEB is the “intelligence” of the power converter. Technically, it executes the Vector Control or Direct Torque Control (DTC) algorithms required to drive large induction or permanent magnet motors. It samples phase currents and voltages at microsecond intervals, calculates the necessary PWM (Pulse Width Modulation) pattern, and transmits these firing commands via fiber optics to the IGBT gate drivers. The “PEB” suffix denotes a specific environmental protection level, ensuring the circuitry remains operational in the presence of conductive pollution or vibration.
Q&A (Common Questions)
Q: Can I swap a 502476L with a different KCEU model? A: While they may look identical, the firmware and sub-revision (indicated by the F51PEB code) are often specific to the motor type or power rating. Swapping without verification can lead to synchronization failure.
Q: What does a red “FLT” LED on the front panel signify? A: A red Fault LED usually indicates a processor self-test failure, a loss of communication with the gate drivers, or a power supply rail deviation.
Q: Are the fiber-optic ports interchangeable? A: No. Each port is mapped to a specific phase or feedback loop (e.g., Phase U, Phase V, or Encoder). Refer to the system wiring diagram for correct mapping.
Q: Is this board compatible with the ALSPA P320 system? A: Yes, the KCEU series modules are frequently used as the specialized drive controllers within the broader ALSPA P320 automation architecture.
Similar Model Recommendations
- Alstom 502476H (Standard hardware variant)
- Alstom KCEU14201F51P (Non-conformal coated version)
- Alstom 502480G (Gate Driver Interface Module)
- Alstom 502462 (Traction Processor Card)
- Alstom KCEU14202 Series (Updated high-speed revision)
For technical support or to procure the Alstom 502476L, please contact our industrial drive specialists.
