Description
The Alstom AB121 is a high-performance programmable controller and processing module designed for demanding industrial automation, power generation, and turbine control systems. Engineered to fulfill critical processing, real-time tracking, and communication overhead, this module handles intricate control logic, processes digital and analog field inputs, and executes fast-acting safety parameters. Its robust industrial design ensures long-term operational continuity, high electromagnetic interference (EMI) immunity, and minimal maintenance requirements in harsh processing plants and utility substations.
Technical Specifications and Datasheet
- Manufacturer: Alstom (GE Grid / Converteam Solutions)
- Model Designation: AB121
- Product Type: Programmable Logic Controller / System Control Board
- Dimensions: 12.0 cm x 8.0 cm x 3.0 cm (4.72 in x 3.15 in x 1.18 in)
- Weight: 0.38 kg (0.84 lbs)
- Country of Origin: France
- Power Supply Input: 24 VDC Nominal (Accepts standard 18-32 VDC)
- Power Consumption: 15W maximum (varies based on I/O allocation)
- Memory Capacity: Up to 128KB non-volatile flash memory
- Communication Interface: Modbus RTU / Ethernet via RS-485 and fieldbus channels
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 5% to 95% non-condensing

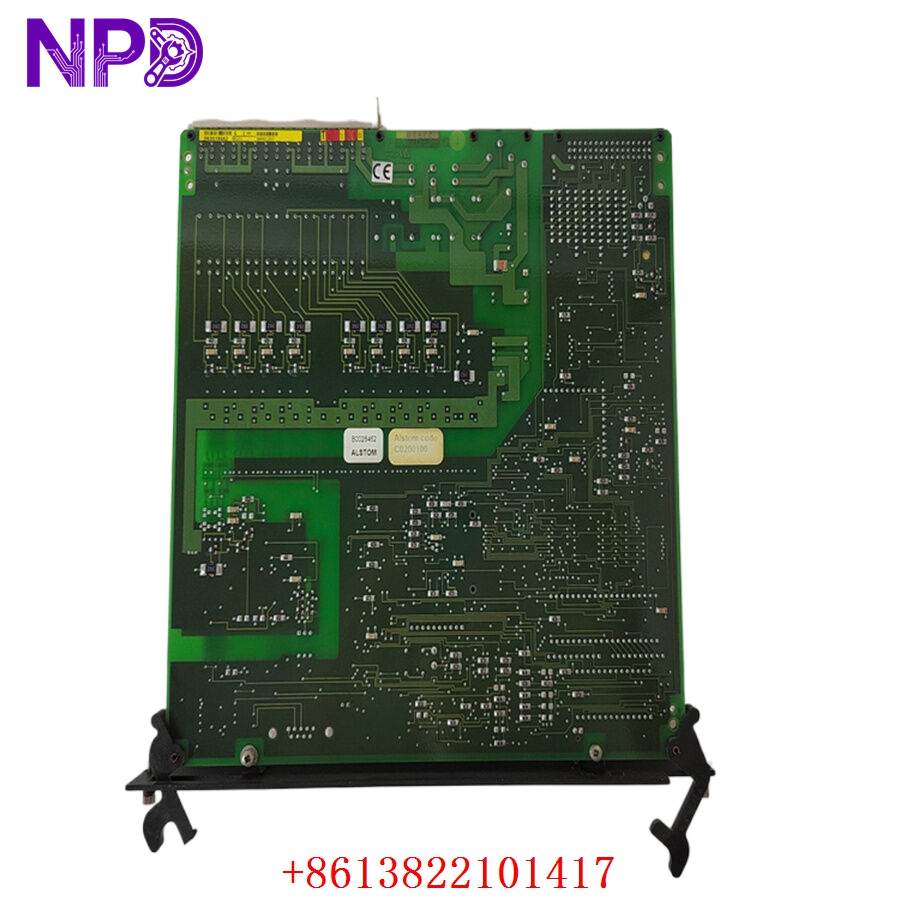

ALSTOM AB121

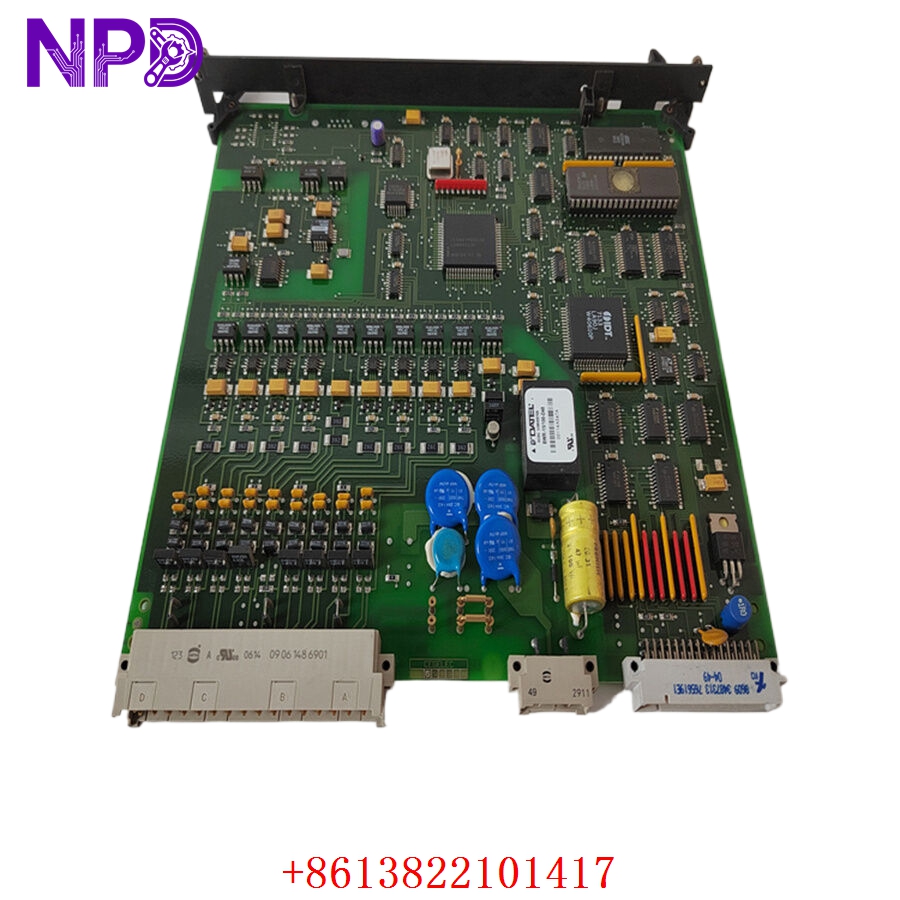

ALSTOM AB121

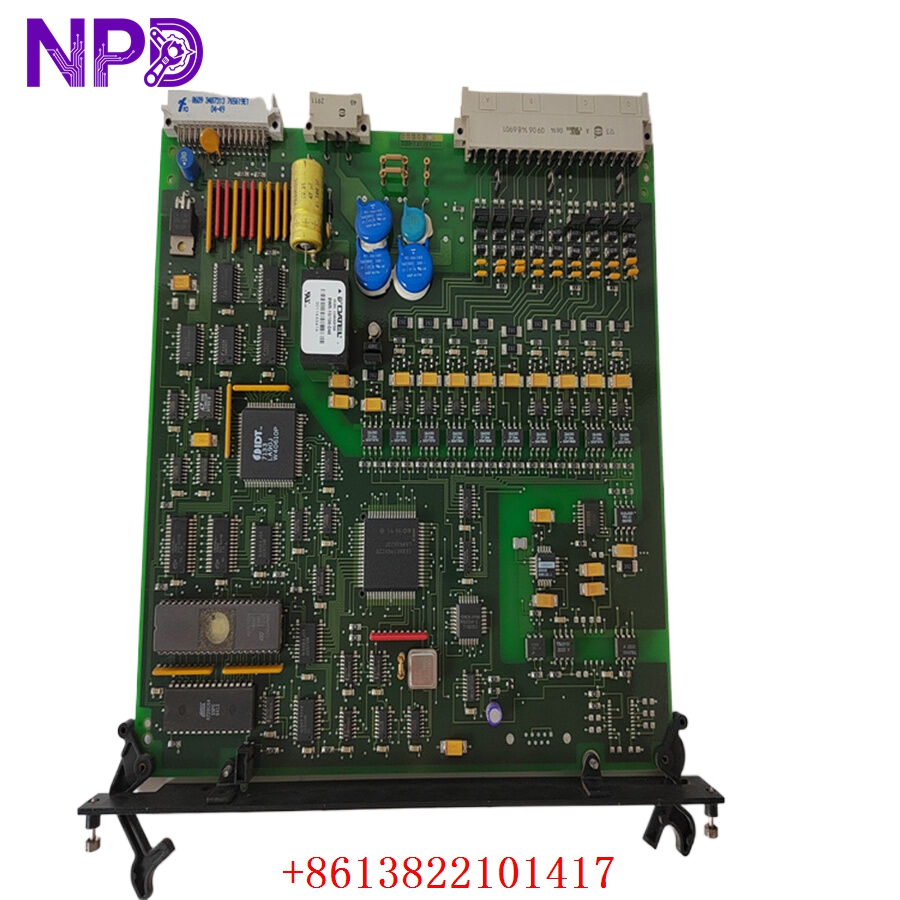

ALSTOM AB121

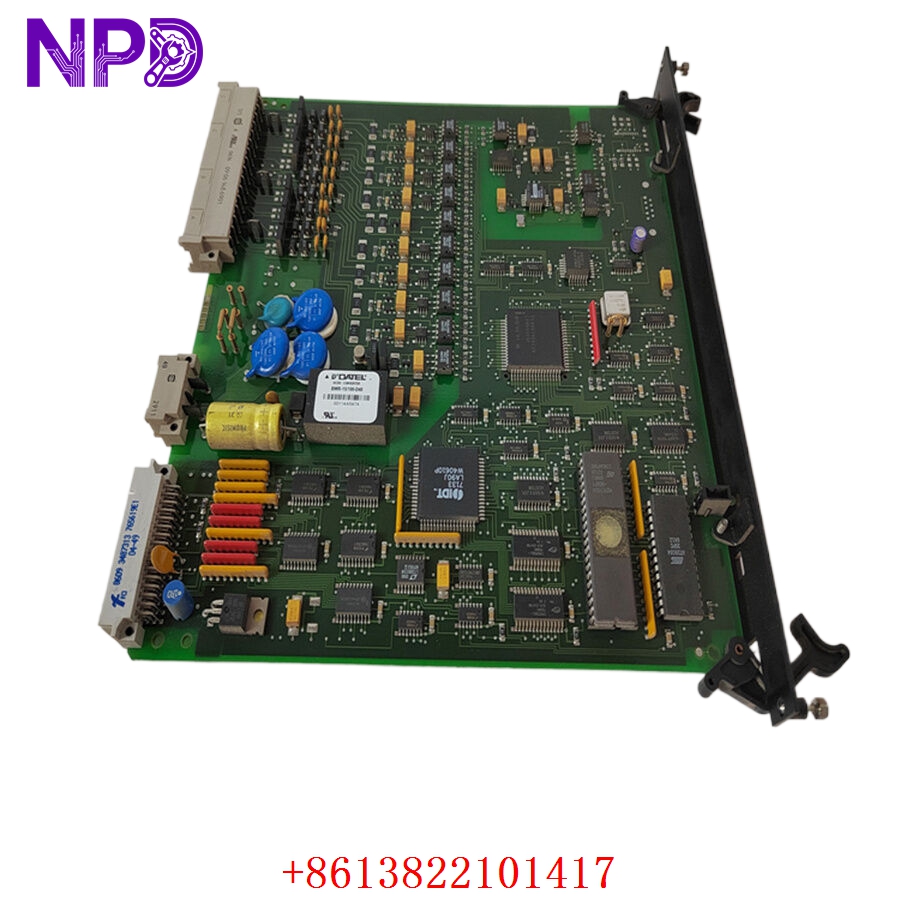

ALSTOM AB121
Application Fields
The Alstom AB121 control board is widely integrated within high-availability industrial infrastructures:
- Gas & Steam Turbine Control: Managing critical operations including startup sequences, safe shutdown procedures, and real-time load distribution.
- Power Generation Facilities: Overseeing excitation regulation, protection synchronization, and feeder management networks.
- Petrochemical Refineries: Operating as a central processing node for high-speed process loops and distributed pump arrays.
- Heavy Manufacturing Assemblies: Regulating large synchronous motor drives, automated rolling mills, and complex conveyor networks.
Product User Instructions
- Physical Mounting: Ensure the module is safely mounted within an appropriately grounded, IP-rated industrial electrical cabinet. Secure all mounting brackets to eliminate structural vibration strains.
- Field Termination Wiring: Attach all sensor lines and communication networks using shielded, twisted-pair cables. Ground the cable shields at the control cabinet end only to mitigate ground loops and signal distortions.
- Power Configuration: Connect a regulated 24 VDC power supply line to the device terminals. Integrating a fast-acting external line fuse matching the maximum draw is recommended to defend internal micro-circuitry against voltage anomalies.
- System Programming & Syncing: Connect to the engineering console via the designated Modbus or Ethernet interface port. Upload the plant-specific ladder logic or structured text parameters, confirming node configurations match the master database framework before live activation.
Frequently Asked Questions (Q&A)
Q1: What are the primary functions of the AB121 board within a turbine system?
A1: Within gas and steam turbine layouts, the AB121 continuously tracks critical parameters such as internal temperatures, fuel pressures, and rotation speeds, dynamically adjusting actuator outputs to safely maintain consistent power performance.
Q2: Does the AB121 board support hot-swapping under live power conditions?
A2: No, it is highly recommended to isolate all backplane and auxiliary power feeds prior to extracting or seating this processing card. Live plugging risks exposing sensitive micro-components to voltage arcs, which can cause hardware faults or memory loss.
Q3: How do I handle a persistent communication dropout error on this unit?
A3: First, inspect the network cable terminations and verify the matching protocol settings (such as baud rate and node ID mappings). If physical integrity is assured, evaluate terminal resistor states and check for ambient high-voltage cable interference.
