Description
The GE IC698ETM001 is a high-speed Ethernet Transmitter Module designed for the PACSystems RX7i controller platform. This module provides robust, industrial-grade connectivity, allowing the RX7i system to communicate over 10/100 Mbps Ethernet networks. It supports various protocols, including SRTP (Service Request Transport Protocol) and Ethernet Global Data (EGD), making it a vital component for peer-to-peer data exchange and HMI/SCADA integration. By offloading communication tasks from the main CPU, the IC698ETM001 ensures high system performance and deterministic control.
Technical Specifications and Datasheet
- Product Model: IC698ETM001
- Manufacturer: GE Fanuc (Emerson)
- Series: PACSystems RX7i
- Module Type: Ethernet Communication Module
- Data Rate: 10/100 Mbps (Auto-negotiating)
- Protocols: TCP/IP, UDP/IP, SRTP, EGD, Modbus TCP (Client/Server)
- Interface: RJ-45 Shielded Twisted Pair (10Base-T/100Base-TX)
- Dimensions: 130 mm x 35 mm x 210 mm
- Weight: 0.62 kg
- Country of Origin: USA
- Power Consumption: 1.5 Amps @ +5 VDC (from backplane)

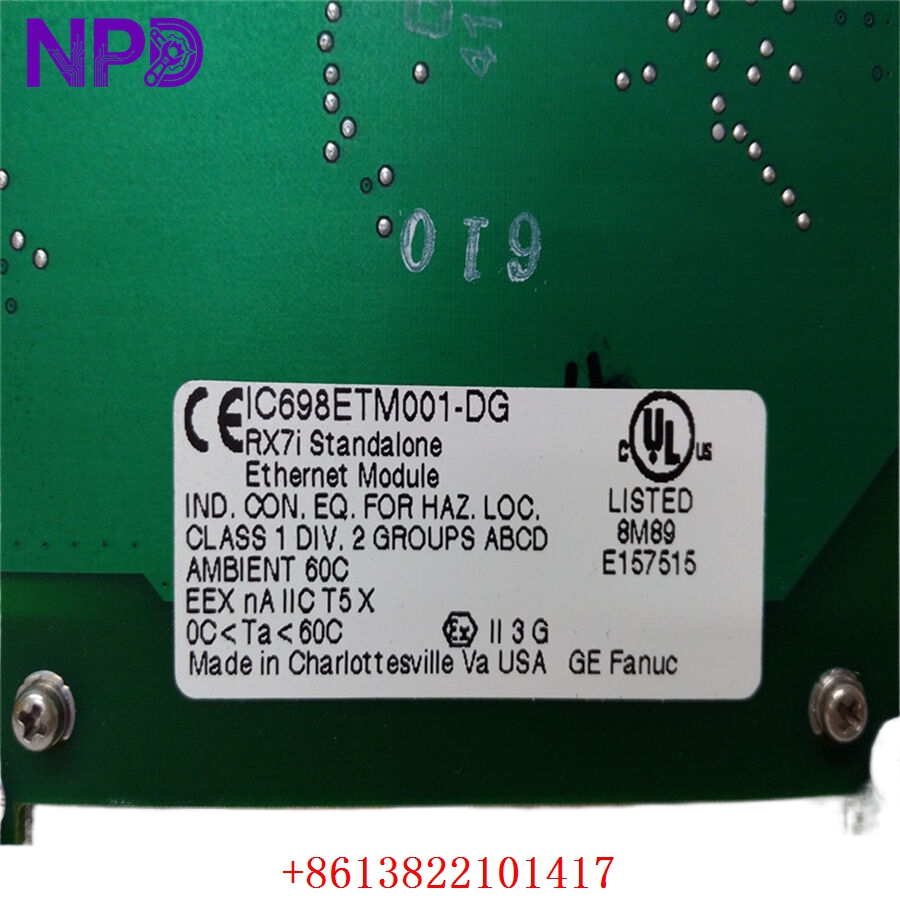

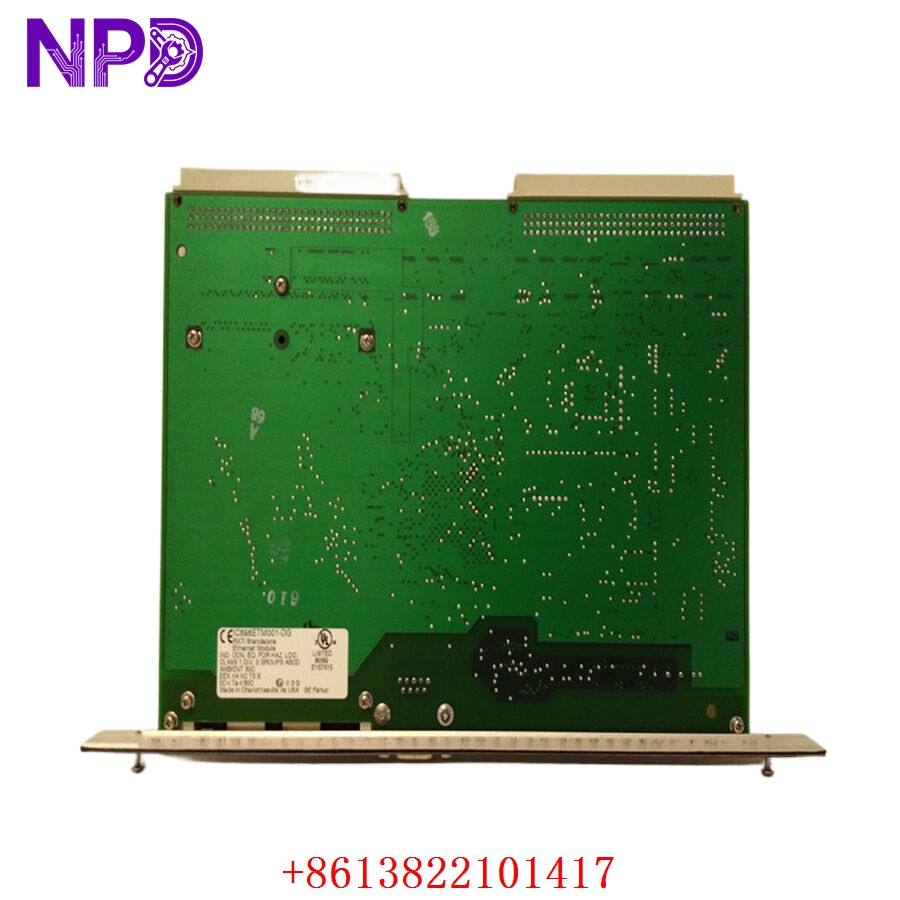

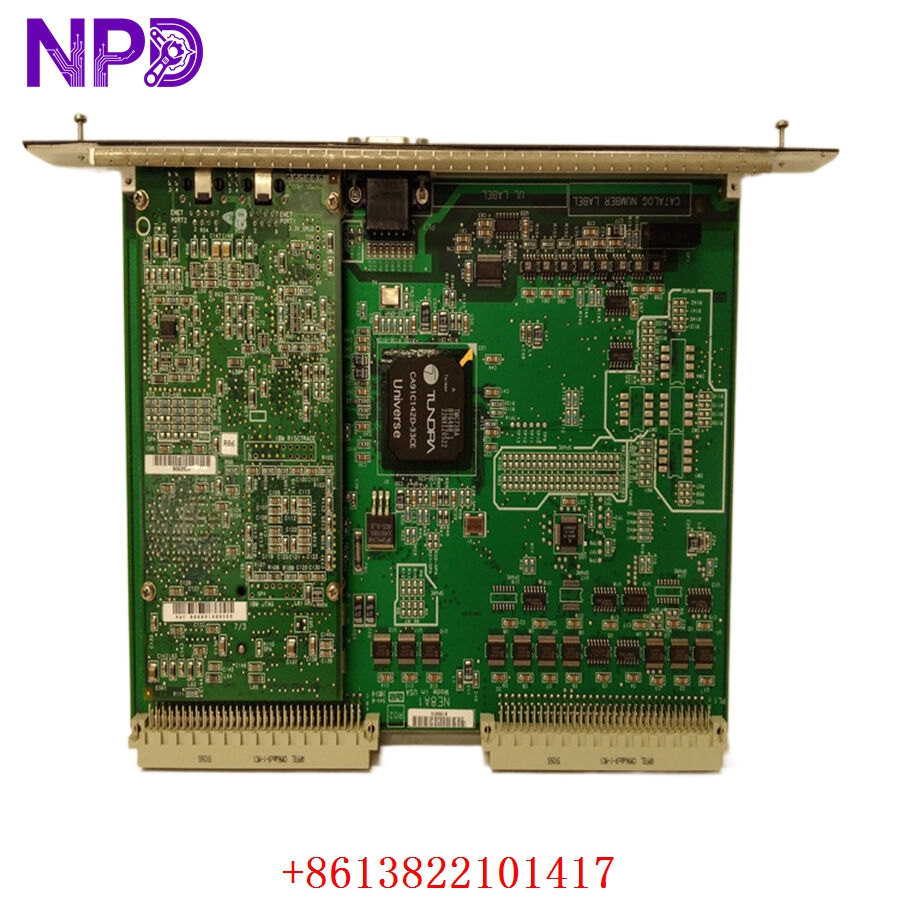

GE IC698ETM001
GE IC698ETM001
GE IC698ETM001
GE IC698ETM001
Application Areas
The IC698ETM001 is used in complex, networked industrial environments such as:
- Plant-Wide Networking: Connecting multiple PACSystems controllers for synchronized plant operations.
- HMI/SCADA Connectivity: Providing the primary data link between the controller and operator interfaces like iFIX or CIMPLICITY.
- Remote Asset Management: Facilitating data logging and remote diagnostics across long-distance Ethernet infrastructures.
- Substation Automation: Utilizing EGD for high-speed multicast data sharing in utility and power applications.
Product Instructions
The IC698ETM001 module must be installed in a standard VME64 slot within a PACSystems RX7i chassis, such as the IC698CHS009. Ensure the PLC rack power is switched off before inserting the module. Once seated and secured, configuration is performed using Proficy Machine Edition software. Users must define the IP address, subnet mask, and gateway, as well as configure specific EGD exchanges or SRTP connections within the software’s hardware configuration tool. The module features front-panel LEDs including “Module OK,” “LAN Online,” and “Internal OK” to provide immediate diagnostic status of the network link and hardware health.
Frequently Asked Questions (Q&A)
Q: Can the IC698ETM001 support redundant network paths? A: While a single module provides one physical port, high availability can be achieved by using two IC698ETM001 modules in a redundant RX7i CPU configuration to ensure network persistence.
Q: Does this module support the Modbus TCP protocol? A: Yes, the IC698ETM001 supports Modbus TCP as both a client and a server, allowing it to interface with a wide variety of third-party industrial devices.
Q: Is it necessary to use a specific type of Ethernet cable? A: To maintain industrial noise immunity and meet regulatory standards, it is highly recommended to use Cat5e (or higher) shielded twisted-pair (STP) cabling.
