Description
The GE IS420UCSBH4A is a high-performance, fanless UCSB controller designed for the PACSystems and Mark VIe control platforms. It functions as the primary processing heart of the control system, executing complex logic and managing communication with I/O modules via the high-speed, Ethernet-based IONet. Built with a robust, compact architecture, the UCSB controller is engineered to provide reliable performance in demanding industrial environments, supporting various redundancy levels to ensure maximum system uptime.
Product Specifications
- Model Identification: Mark VIe UCSB Controller (Part Number: IS420UCSBH4A)
- Processor: 600 MHz Intel Celeron
- Operating System: QNX Neutrino (Real-time OS)
- Memory: 128 MB DDR2 SDRAM
- Storage: 128 MB internal Compact Flash
- Input Voltage: 18 to 30 V DC (24V DC nominal)
- Communication: Dual 10/100 Ethernet IONet ports
- Dimensions: 145 mm x 48 mm x 195 mm
- Weight: 0.85 kg
- Country of Origin: USA

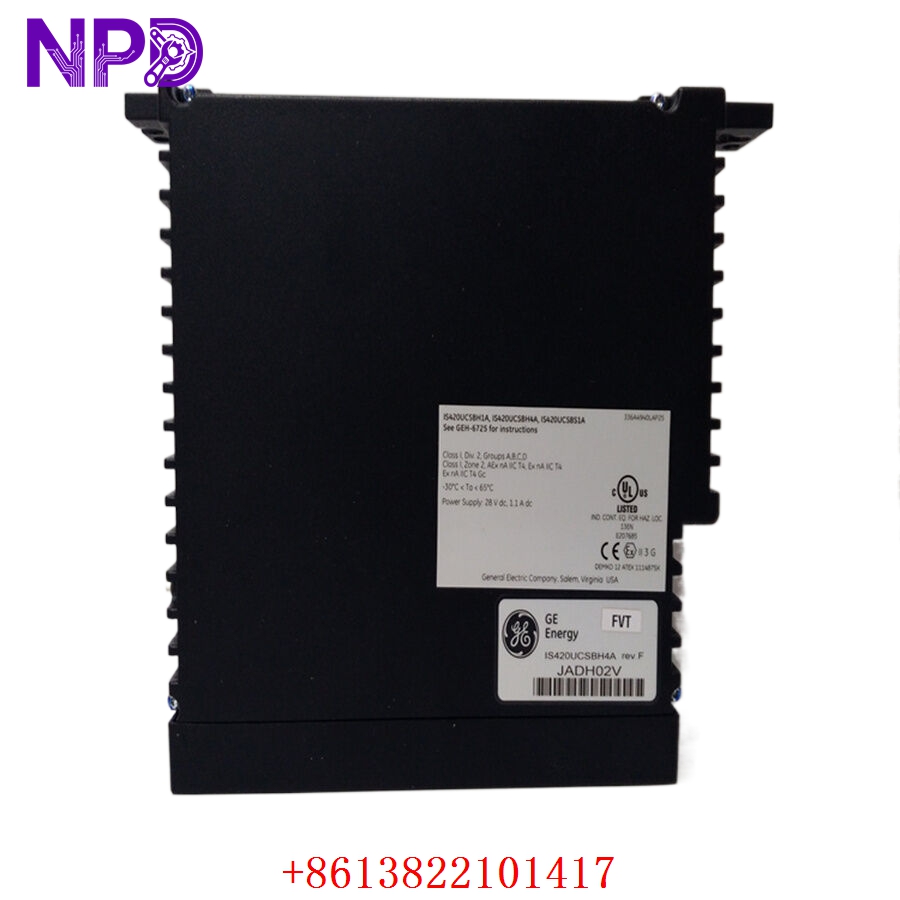

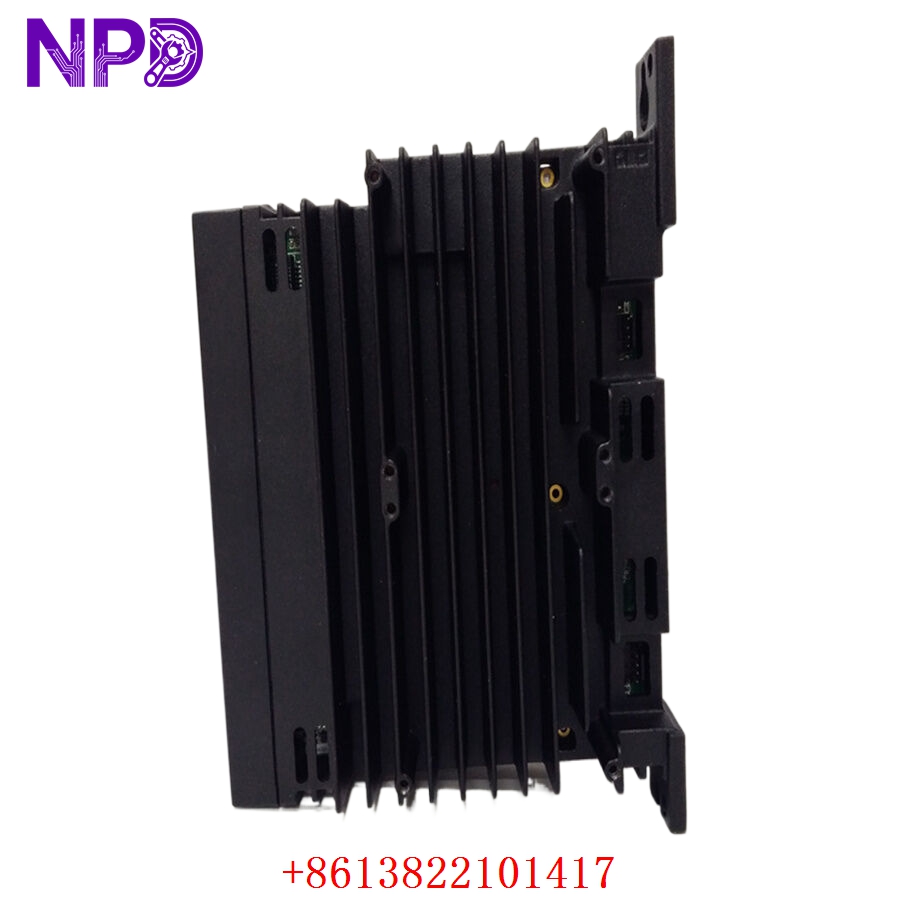

GE IS420UCSBH4A
GE IS420UCSBH4A
GE IS420UCSBH4A
Application Fields
The GE IS420UCSBH4A is a critical component in large-scale power and infrastructure projects, including:
- Gas & Steam Turbines: Providing precise speed and load control for power generation units.
- Combined Cycle Plants: Managing the complex synchronization between heat recovery steam generators and turbines.
- Oil & Gas Compression: Controlling large-scale centrifugal compressors in pipeline and LNG facilities.
- Hydroelectric Power: Governing water flow and generator output in renewable energy plants.
- Industrial Process Control: Serving as a master controller for large-scale distributed I/O networks.
Product Operation Instructions
- Mounting: The UCSB is designed to be base-mounted within a control cabinet. Ensure the module is secured to the mounting base to prevent vibration-related issues.
- Powering Up: Connect the 24V DC power source. The controller will initiate a boot sequence using the QNX real-time operating system.
- Network Integration: Connect the controller to the IONet switches using high-quality Ethernet cables. This allows the UCSBH4A to communicate with the Distributed I/O modules (PDIO, ADIO, etc.).
- Firmware & Software: Use the GE ToolboxST software suite to configure the controller. It is vital to ensure that the firmware version on the UCSBH4A matches the project version in ToolboxST to prevent communication errors.
- Redundancy Configuration: This module supports Simplex, Dual, and Triple Modular Redundancy (TMR). In TMR setups, three UCSB units work in parallel with a voting mechanism to ensure the highest safety integrity.
Q&A: Common Questions
Q: What is the advantage of the fanless design in the IS420UCSBH4A? A: The fanless design significantly increases reliability by eliminating a common mechanical failure point and preventing the intake of dust and contaminants into the module’s internal electronics.
Q: Can I swap a UCSB controller while the system is running? A: In redundant configurations (Dual or TMR), a single controller can be replaced while the remaining controllers maintain process control. However, strict procedures in the Mark VIe maintenance manual must be followed to avoid a system trip.

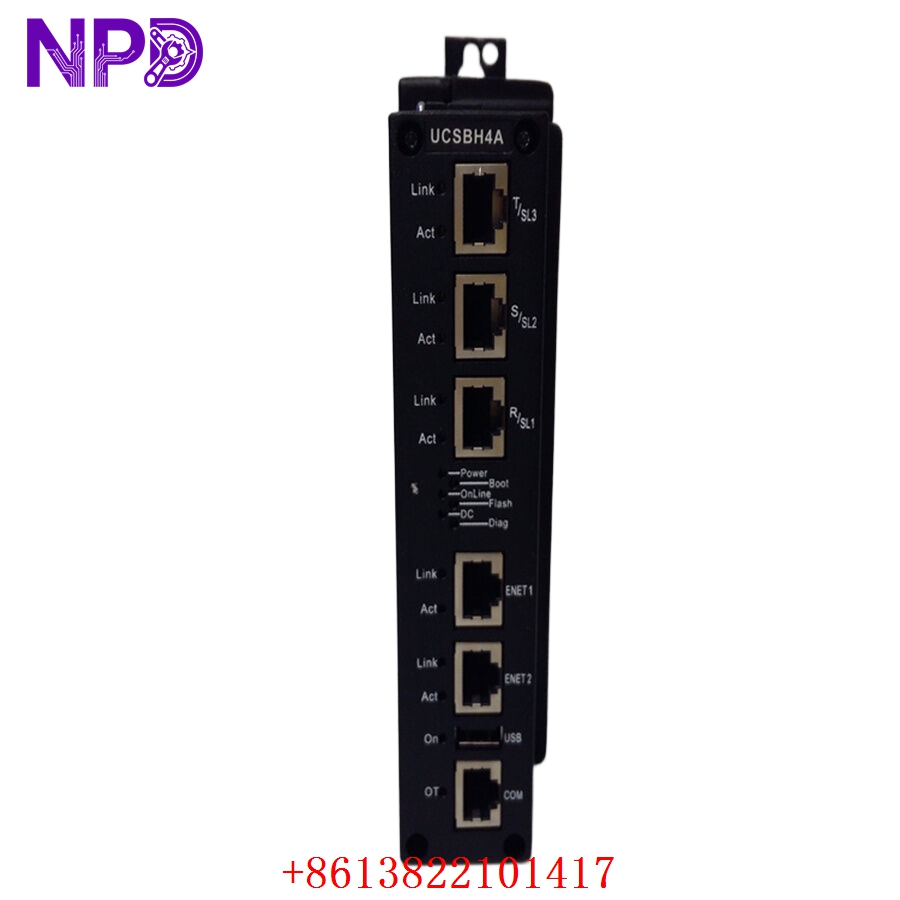

Q: How do I check the status of the controller? A: The module features front-panel LED indicators for Power, Online, and Flash status. Detailed diagnostic information is also available through the “Live View” feature in the ToolboxST software.
