HIMA F8652X HIQUAD Central Module

Description

• Model: HIMA F8652X (998652002)
• Brand: HIMA (Germany)
• Series: HIQUAD (H41q / H51q Systems)
• Core Function: Central Module (CPU) for managing safety-critical logic
• Product Type: Central Processing Unit (CPU)
• Key Specs: 32-bit Microprocessor SIL 3 Rated Multitasking Support

• Safety Rating: SIL 3 according to IEC 61508
• Processor: 32-bit high-performance RISC architecture
• Memory: Includes Flash EPROM and RAM for logic execution
• Operating Voltage: 5 V DC (from backplane)
• Self-Diagnostics: Integrated hardware/software watchdog and memory testing
• Communication Interfaces: RS 485 (for programming/communication)
• Redundancy: Supports Dual-Channel (1oo2) or Quad-Channel (2oo4) architecture
• Clock Frequency: Specific to system bus synchronization
• Operating Temperature: 0 °C to +60 °C
• Form Factor: Standard HIMA 19-inch rack-mount module

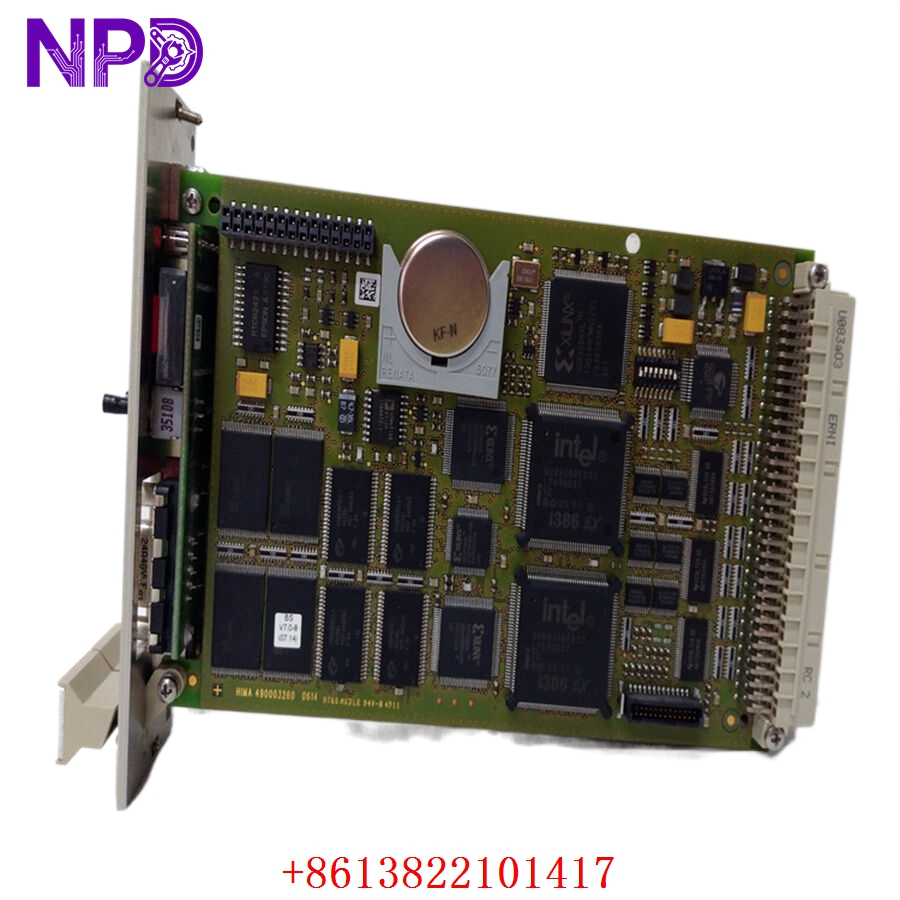

HIMA F8652X

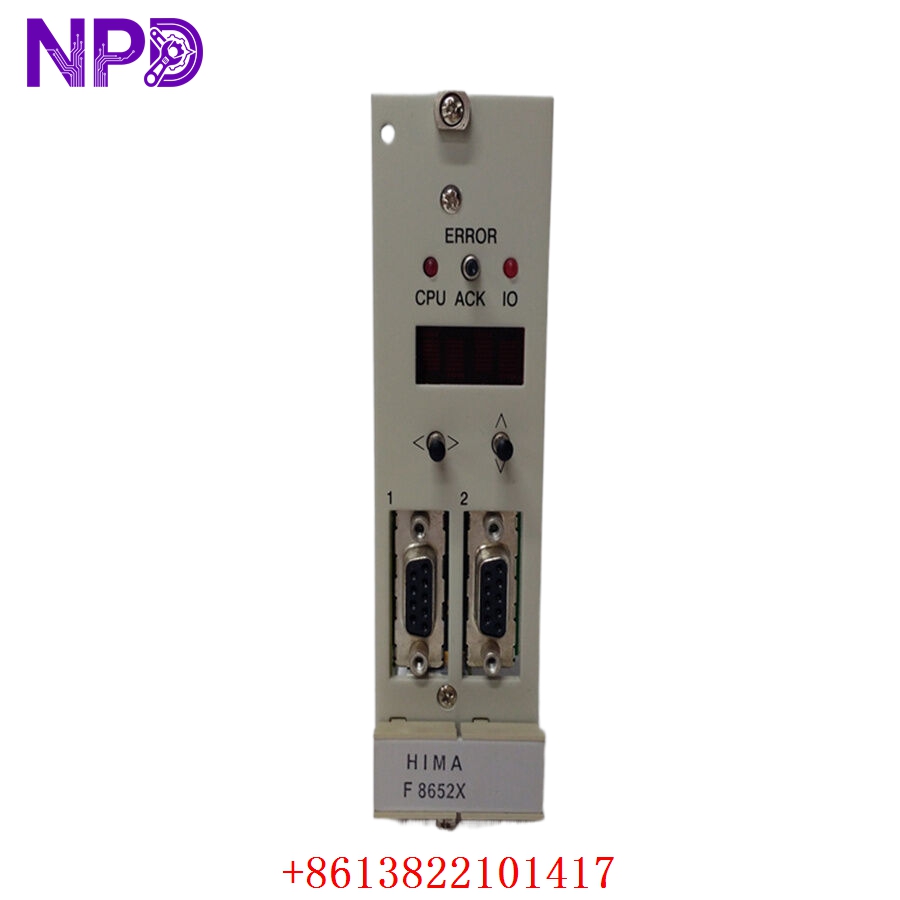

HIMA F8652X

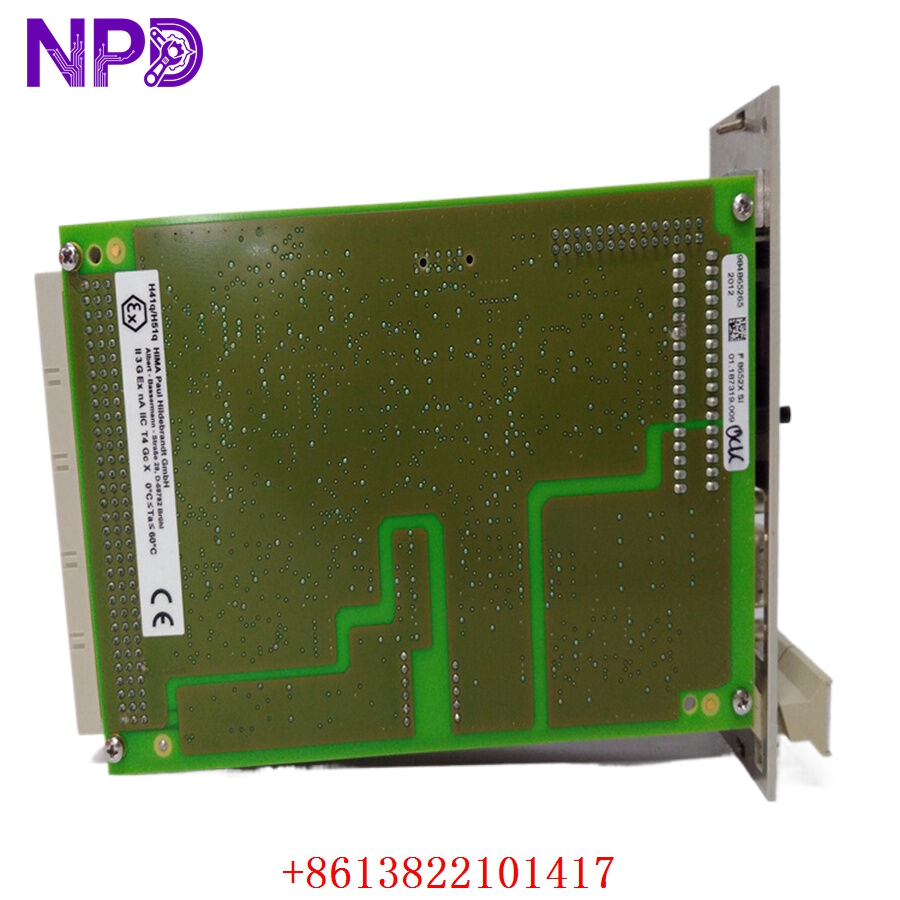

HIMA F8652X

HIMA F8652X

Application Scenarios & Pain Points

In legacy HIQUAD systems like the H41q or H51q, the F8652X is the “brain.” If this module fails, the entire safety sub-rack goes dark. These systems are typically found in aging offshore platforms or large-scale refineries where “ripping and replacing” the entire DCS/SIS is a multi-million dollar project. The pain point here isn’t just the hardware cost—it’s the scarcity. Finding a vetted, functional CPU for a 20-year-old system is often the only way to keep a plant operational and compliant with safety regulations.

Typical Application Scenarios:

1. Refining & Petrochemical – Safety Instrumented Systems (SIS)

   The core logic solver for high-pressure emergency shutdown loops where failure is not an option.

2. Offshore Platforms – Fire & Gas (F&G) Systems

   Managing complex logic for gas detection and deluge activation across multiple zones.

3. Chemical Processing – Reactor Protection

   Ensuring exothermic reactions are monitored and quenched instantly if parameters exceed safe limits.

4. Pipeline Management – Sectionalizing Valve Control

   Controlling remote valve stations across long distances via redundant communication links.

Case Study: The “Brain Dead” Platform

Background:

A gas compression station in the Middle East was using an H51q system to manage surge protection. During a routine maintenance cycle, the primary F8652X failed its self-test and locked the system in a “Stop” state.

The Problem:

The OEM had officially moved this series to “Limited Support” years ago. The onsite team had one spare, but it was found to have a corrupted Flash EPROM. Without a working CPU, the station couldn’t restart, costing the operator approximately $200,000 per day in deferred production.

The Solution:

We provided a fully tested F8652X with a verified battery-backed RAM and clean diagnostic logs. Before shipping, we matched the hardware revision to their existing rack to ensure zero communication lag.

The Result:

The module was hand-carried to the site. The engineer swapped the module, reloaded the application program via the RS 485 port, and the station was back online within 72 hours of the initial failure.

SOP Quality Transparency

For a CPU module like the F8652X, “looking good” isn’t enough. It has to think correctly.

1. Inbound Verification:

   We perform a deep visual audit under magnification to check for “leaking” capacitors or heat-stressed components on the internal PCB. We cross-reference the 998652002 part number against the specific hardware revision (e.g., Rev. 1.x or 2.x).

2. Live System Simulation:

   We don’t just power it on. We seat the module into an ABB/HIMA H51q test rack.

   • Boot Sequence: We monitor the hex-code display or LED indicators during the self-test phase.
   • Programming Test: We connect via a programming cable and verify that we can download, run, and “Force” I/O points in the safety logic.
   • Redundancy Handover: If the client is running a redundant setup, we test the module’s ability to sync and take over the bus without dropping the load.
3. Memory & Battery Check:

   We replace the internal CMOS/RAM battery if it’s below 3.0 V. We verify the Flash EPROM can be written to and erased multiple times without “Bit-flip” errors.

4. Environmental Stress:

   The module undergoes a 48-hour burn-in at 45 °C. This flushes out “infant mortality” failures in the silicon that might occur after years of sitting in a warehouse.

5. Final Outbound:

   We provide a Test Report showing the diagnostic buffer results. The module is shipped in a hard-shell ESD-safe container to prevent physical shock during transit.

Technical “Pitfall” Guide

If you’re about to slide a new F8652X into a live rack, stop and read this. I’ve seen these modules get fried or fail to sync because of small oversights.

1. Hardware Revision Incompatibility ❗

   Not all F8652X modules are created equal. Over its 20+ year lifespan, HIMA released several revisions. If your backplane or existing redundant partner is an older “Rev A” and you try to pair it with a “Rev D,” the system might refuse to sync.

   The Fix: Check the revision suffix on your old module’s sticker. Ensure the “new” module matches or is a factory-approved successor.

2. The “Wait, Where’s My Program?” Trap:

   The F8652X stores logic in volatile memory backed by a battery. If you pull a module from storage and put it in a rack, it will be empty.

   The Fix: Ensure you have the latest project backup (*.prj or *.piz) and a working programming cable (RS 485). You cannot just “swap and go” with a CPU; you must reload the logic.

3. DIP Switch Settings (S1/S2) ❗

   Behind the front plate or on the side, there are DIP switches that define the station address and communication baud rate.

   The Fix: Take a photo! Use your phone to document every single switch position on the failed module. If the address is off by even one digit, the module will be invisible to the rest of the DCS.

4. Grounding & Backplane Pins:

   The HIQUAD racks use long-pin Euro-connectors. It is shockingly easy to bend a pin if you don’t slide the module in perfectly level.

   The Fix: Clean the backplane with compressed air first. Slide the module in until you feel the connector engage, then use the front-panel screws to “seat” it fully. Never force it.

Troubleshooting Quick Reference

Final Recommendation: If the F8652X shows a persistent red error light after a cold start, don’t waste time trying to “reset” it. Usually, this indicates a failure in the 32-bit processing core or the parity-check circuit. For SIL 3 systems, the safest and fastest route is always hardware replacement.
