Description
- Model: HIMA Z7138
- Brand: HIMA (Germany)
- Series: HIQUAD / HIMatrix Series
- Core Function: Monitoring and distribution of system supply voltages (24V DC)
- Product Type: Monitoring and Power Distribution Module
- Key Specs: SIL 3 Rated Dual-Channel Monitoring Status Signaling
Key Technical Specifications
| Attribute | Specifications |
| Input Voltage | 24 V DC (Main and Backup supplies) |
| Monitoring Range | 18 V DC to 30 V DC (Adjustable/Fixed thresholds) |
| Current Consumption | Approx. 50 mA (Internal logic) |
| Safety Integrity | SIL 3 (IEC 61508) |
| Output Contacts | Potential-free relay contacts for signaling |
| Status Display | Integrated LED (Green for Power OK, Red for Fault) |
| Protection | Reverse polarity and overvoltage protection |
| Operating Temp | 0°C to +60°C |
| Mounting | Standard HIMA sub-rack / DIN-rail adapter |
| Dimensions | 4 units wide (Standard HIMA format) |

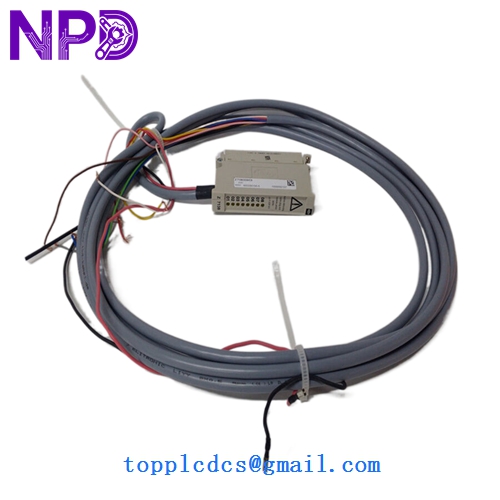

HIMA Z7138 933330100

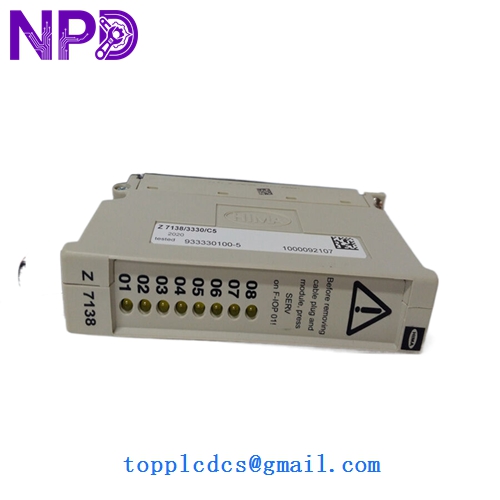

HIMA Z7138 933330100

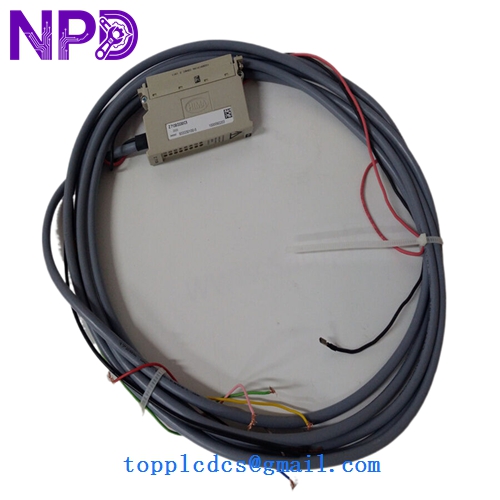

HIMA Z7138
Application Scenarios & Pain Points
The HIMA Z7138 is the “Watchdog” of the safety system’s power rail. In a SIL 3 environment, if the voltage drops below a certain threshold, the safety modules may behave unpredictably. The Z7138 ensures that the system is alerted the moment power integrity is compromised. The primary pain point with this module is Contact Wear and Oxidation. In humid or corrosive environments (like chemical storage areas), the signaling relay contacts inside the Z7138 can oxidize, leading to “False Power Alarms.” This can cause the ESD system to trip the entire plant unnecessarily because the safety controller “thinks” it has lost power when the actual issue is just a degraded monitoring contact.
Typical Application Scenarios:
- Emergency Shutdown (ESD) Systems
Continuously monitoring the 24V DC bus that powers critical I/O modules and processors.
- Burner Management Systems (BMS)
Ensuring that the power to gas valves and ignition sequences remains within safe operating limits.
- Fire and Gas (F&G) Panels
Providing a central monitoring point for redundant power supply units to ensure 24/7 readiness.
Case Study: The “Nuisance Trip” Mystery
Background: A mid-sized refinery experienced three random plant trips in one week. The diagnostic logs showed “System Power Failure,” yet the power supplies appeared to be functioning perfectly.
Problem: The culprit was an aging HIMA Z7138 module. The internal monitoring circuit had become hyper-sensitive to minor voltage ripples, causing the relay to chatter for milliseconds—long enough to trigger a global safety shutdown.
Solution: 我们提供了经过完全测试的 HIMA Z7138 备件进行更换。
Result: Once the new module was installed, the nuisance trips stopped. The plant returned to stable operation, saving the company an estimated $150,000 per day in avoided downtime.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| Z7138 | Z7138 | ✅ Direct | N/A | 1:1 Replacement | Base |
| Z7138 | Z7127 | ⚠️ Partial | Different voltage range | Check threshold settings | -10% |
| Z7138 | F8650 | ❌ Incompatible | Full Power Supply Unit | Rack change required | +300% |
Engineer’s Note: While the Z7138 is a simple-looking module, its calibration is vital. If you are replacing a unit in a critical system, ensure the threshold jumpers (if applicable) on the side of the board match your original configuration exactly.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| Fault LED Red | Voltage Out of Range | ⚠️ Medium | Measure 24V DC at the input terminals | Check PSU first; if PSU OK, replace Z7138 |
| No Signaling Output | Relay Contact Stuck | ✅ High | Use an ohmmeter to check contact state | Replace module |
| Intermittent Alarms | Ripple / Noise on Line | ⚠️ Medium | Check for failing capacitors in the PSU | Filter the line or replace Z7138 |
| Module “Dead” (No LEDs) | Internal Fuse Blown | ✅ High | Check if 24V is present at the backplane | Replace module |
❗ Critical Warning: The Safety Loop Trap
The HIMA Z7138 is often hard-wired into the “Global Safety Loop.” Pulling this module while the system is live will likely trigger a full plant shutdown unless the loop is bypassed correctly in the software or via physical jumpers. Always consult your safety logic diagram before attempting a hot-swap.
SOP Quality & Testing Protocol:
Each HIMA Z7138 is tested using a Variable DC Power Source and a HIMA Test Rack. We simulate “Under-voltage” and “Over-voltage” conditions to verify the exact trip points of the signaling relays. We also perform a Contact Resistance Test to ensure the signaling path is clean and reliable. A full Test Report documenting the trip thresholds and relay performance is provided. Video of the module responding to voltage fluctuations is available upon request.
