Description
The Hitachi LYD000A is a high-density Digital Output Module designed for the Hitachi HI-FLOW and H-Series Programmable Logic Controllers (PLCs). This module is typically used to drive peripheral devices such as solenoid valves, motor starters, and indicating lamps in industrial automation environments.
Product Parameters (Datasheet)
- Model Number: LYD000A
- Module Type: Digital Output (DO)
- Output Type: Transistor (Sink or Source depending on wiring configuration)
- Number of Points: 32 or 64 Channels (Series dependent)
- Rated Voltage: 12-24 VDC
- Max Load Current: Typically 0.1A to 0.5A per point
- Response Time: < 1 ms (Off to On / On to Off)
- Isolation: Optocoupler isolation between internal logic and field side
- Connector Type: High-density 40-pin or 37-pin connector (requires external terminal cable)
- Status Indicators: LED display for each output channel

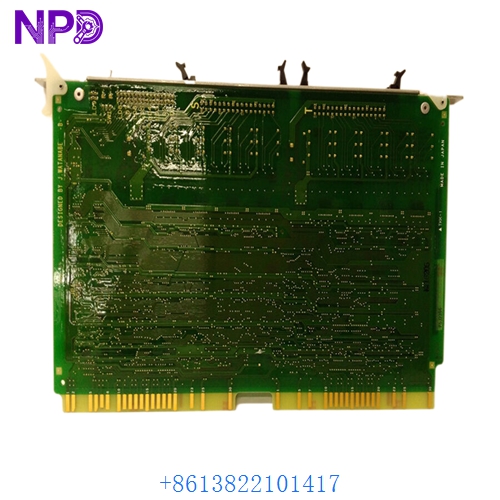

HITACHI LYD000A
HITACHI LYD000A
Country of Origin
This module is engineered and manufactured by Hitachi, Ltd. in Japan, ensuring high precision and long-term reliability for heavy industrial use.
Application Fields
The LYD000A is a staple in high-speed manufacturing and infrastructure:
- Automotive Assembly: Controlling pneumatic cylinders and indexing tables on robotic lines.
- Semiconductor Tools: Managing precise chemical dispensing valves and wafer handling.
- Power Substations: Triggering remote signaling relays and status indicators.
- Water Management: Controlling small-scale actuators and chemical dosing pumps.
- Textile Machinery: Driving high-frequency solenoids for pattern control.
Product Usage Instructions
- Mounting: Ensure the PLC rack is powered down. Slide the LYD000A into the designated I/O slot. Ensure the top and bottom latches click into place to maintain the backplane connection.
- Field Wiring: Use a compatible pre-wired cable (Hitachi specialized interface cable) to connect the high-density module front connector to an external terminal block.
- Power Supply: Connect an external 24 VDC power supply to the common terminals on the terminal block to provide power for the output loads.
- Addressing: In the Hitachi programming software (e.g., ActWin), assign the I/O address based on the slot position.
- Diagnostic Check: Use the module’s front LEDs to verify the output status. If an LED is lit but the field device is not responding, check the external fuse and field wiring for an open circuit.
Product Technical Description
Technically, the LYD000A utilizes high-speed Optoisolation to protect the PLC’s central processor from electrical surges and noise generated by inductive field loads. The transistor-based switching allows for a significantly higher switching frequency and longer lifespan compared to traditional relay modules, as there are no mechanical parts to wear out. It is designed for “Continuous Duty” applications where outputs may toggle thousands of times per hour. The module also features internal protection circuitry to mitigate the effects of back-EMF when driving inductive loads like small coils.
Q&A (Common Questions)
Q: Can I drive a 110V AC solenoid directly with this module? A: No. The LYD000A is a DC output module (12-24 VDC). To control AC loads, you must use an interposing relay between the module and the AC device.
Q: What is the difference between LYD000A and LYD000B? A: Usually, these suffixes denote minor hardware revisions or different connector styles. “A” is often the standard version, while later revisions might include improved short-circuit protection.
Q: Why are all the LEDs on the module flashing? A: This usually indicates a “Bus Error” or a failure of the module to communicate with the CPU. Verify that the module is seated correctly and that the rack power supply is stable.
Q: Is the LYD000A hot-swappable? A: Most Hitachi H-series racks do not support hot-swapping. Always power down the system before removing or inserting modules to prevent damage to the backplane.
Similar Model Recommendations
- Hitachi LYD000B (Updated revision)
- Hitachi LXD000A (Digital Input companion)
- Hitachi LAY000A (Analog Output module)
- Hitachi HIDIC H-Series CPUs (Compatible processors)
- Hitachi LCH000A (Communication module)
For technical support or to procure the Hitachi LYD000A, please contact our automation specialists.
