Description
Product Introduction
⚙️ Product: TC-505-02-4M5
🏷️ Brand: ICS Triplex / Rockwell Automation
🔌 Product Type: Trusted TMR I/O SmartSlot Cable
🛡️ System: Trusted TMR Safety System

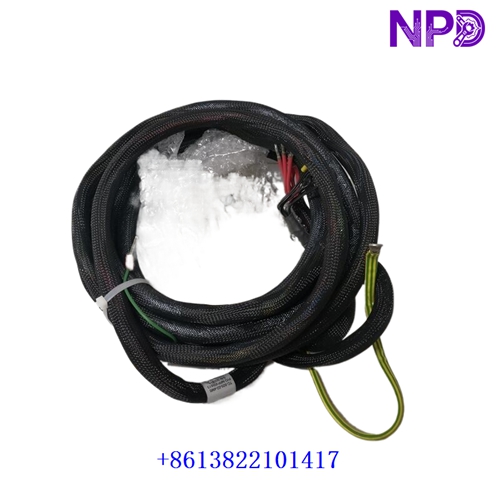

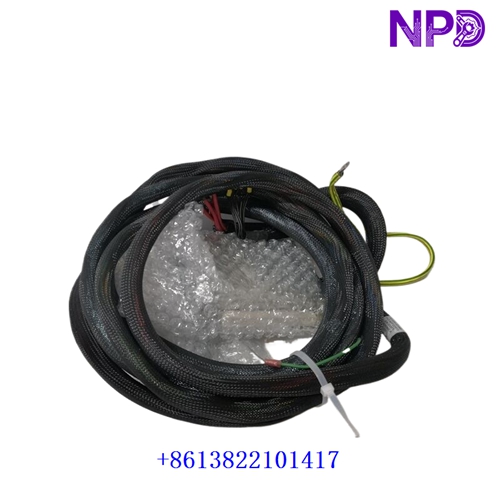

The ICS Triplex TC-505-02-4M5 is a Trusted TMR I/O SmartSlot cable assembly used to connect compatible Trusted I/O modules with Field Termination Assemblies (FTAs) or VFTAs. The “02” designation identifies the LSZH cable insulation type, while “4M5” indicates a 4.5-meter cable length.
🔗 The cable is designed for industrial safety and critical-control installations where reliable signal transmission between the I/O module and field termination equipment is required. It is suitable for Trusted TMR architectures used in safety instrumented systems, emergency shutdown systems, and other high-availability applications.
🛠️ Before installation, verify the complete TC-505-02-4M5 ordering code, cable length, insulation type, connector configuration, compatible Trusted I/O module, and FTA/VFTA model.
Product Datasheet
🔹 Model: TC-505-02-4M5
🔹 Brand: ICS Triplex / Rockwell Automation
🔹 Product Type: Trusted TMR I/O SmartSlot Cable Assembly
🔹 System: ICS Triplex Trusted TMR
🔹 Cable Length: 4.5 m
🔹 Cable Type: LSZH, Type 02
🔹 Architecture: Triple Modular Redundant (TMR)
🔹 Connection: Trusted SmartSlot I/O Module to FTA/VFTA
🔹 Application: Safety I/O Signal Transmission
🔹 Maximum Recommended Length: 15 m
🔹 Installation: Pre-terminated Cabinet / Panel Wiring
🔹 Dimensions: Approx. 115 × 39 × 130 mm packaged*
🔹 Weight: Approx. 0.5–0.8 kg*
🔹 Country of Origin: USA / Configuration Dependent*
*Packaging dimensions and weight vary between suppliers and shipping configurations. The cable specification and 4.5 m length are supported by available Trusted SmartSlot documentation.
Typical Applications
🛡️ Safety Instrumented Systems (SIS)
🚨 Emergency Shutdown (ESD) systems
🔥 Fire and Gas protection systems
🏭 Process safety control
⚡ Power generation protection
🛢️ Oil and gas automation
🔄 Trusted TMR system maintenance and replacement
Installation & Use
🛠️ Confirm that the cable is compatible with the specific Trusted I/O module and FTA/VFTA before installation. Check the 4.5 m cable length and Type 02 LSZH construction against the cabinet wiring requirements.
🔌 Connect the SmartSlot cable firmly between the I/O module and the appropriate field termination assembly. Avoid excessive bending, pulling, or mechanical stress on the connectors. For installations exceeding the recommended cable length, consider signal voltage drop, crosstalk, and noise effects.
📊 After installation, inspect connector seating and cable routing, then verify I/O channel communication and field signal operation through the Trusted system diagnostics.
⚠️ Because the cable may form part of a safety-related I/O path, complete the applicable loop checks and functional verification before returning the safety system to service.
