Description
The KOKUSAI CXP-544A, often utilized in conjunction with the KOMS-A2 series controller architecture, is a specialized precision measurement and control interface designed for semiconductor manufacturing equipment. Specifically engineered for use in KOKUSAI ELECTRIC (formerly Hitachi Kokusai Electric) thermal processing systems, such as vertical diffusion and LPCVD (Low-Pressure Chemical Vapor Deposition) furnaces, this unit manages the precise delivery and monitoring of process gases. It serves as a high-speed communication gateway, ensuring that the mass flow controllers (MFCs) and pressure sensors within the furnace system maintain the extreme process uniformity and repeatability required for advanced wafer fabrication.
Product Specifications
- Model Number: CXP-544A
- Series: KOMS-A2 (Gas Control/Monitoring System)
- Manufacturer: KOKUSAI ELECTRIC
- Function: MFC Interface and Gas Flow Monitoring Module
- Dimensions: 280 mm x 150 mm x 80 mm (Chassis-integrated card format)
- Weight: 0.95 kg (2.09 lbs)
- Country of Origin: Japan
- Communication Interface: Dedicated KOMS-A2 proprietary bus
- Control Loops: Multi-channel analog input/output (MFC command and feedback)
- Operating Environment: Controlled cleanroom semiconductor fabrication facility
- Calibration Standard: Factory-calibrated for high-precision gas flow ranges

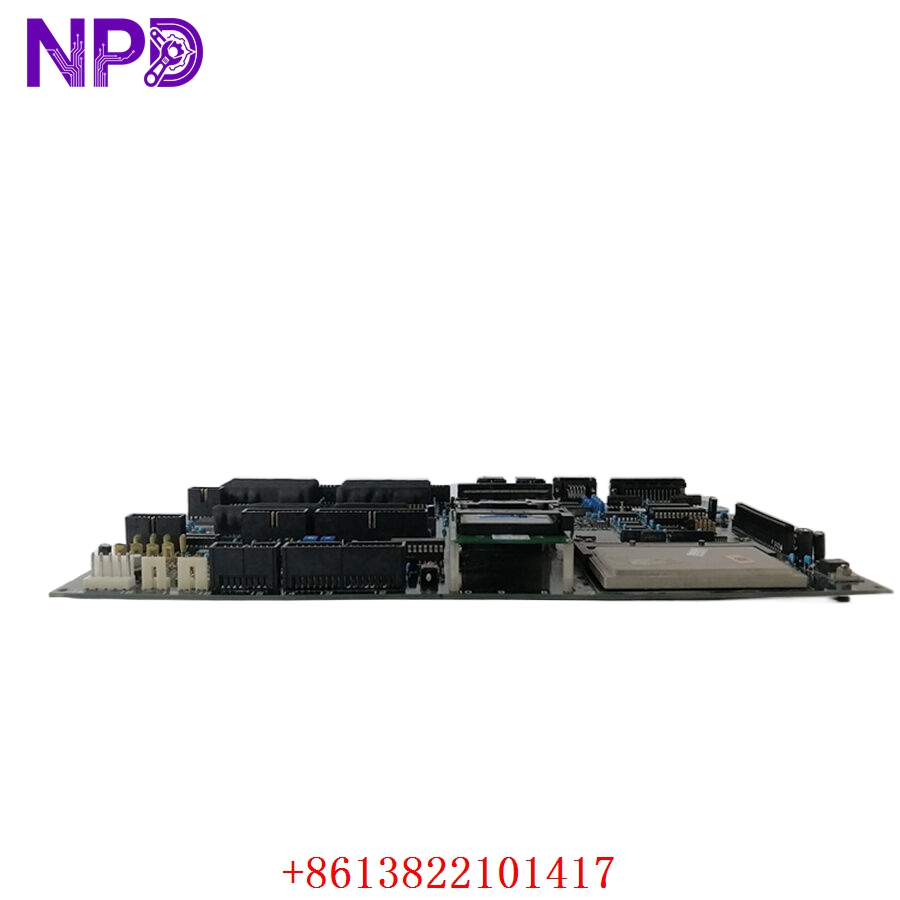

KOKUSAI CXP-544A KOMS-A2

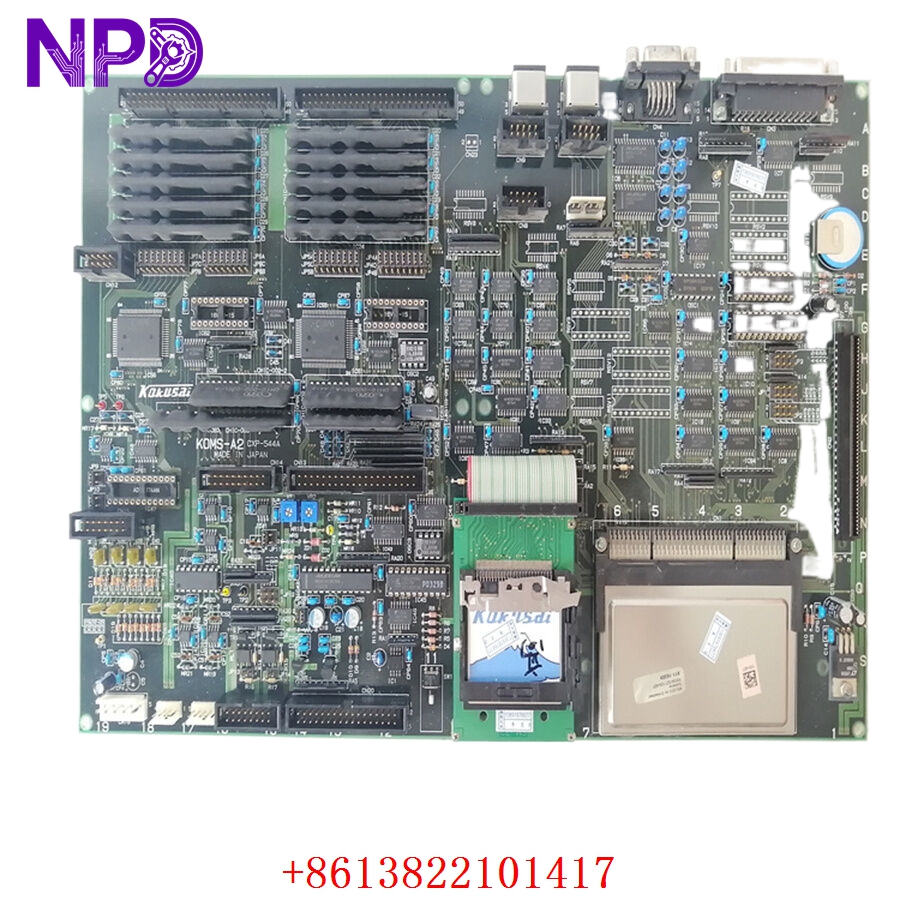

KOKUSAI CXP-544A KOMS-A2

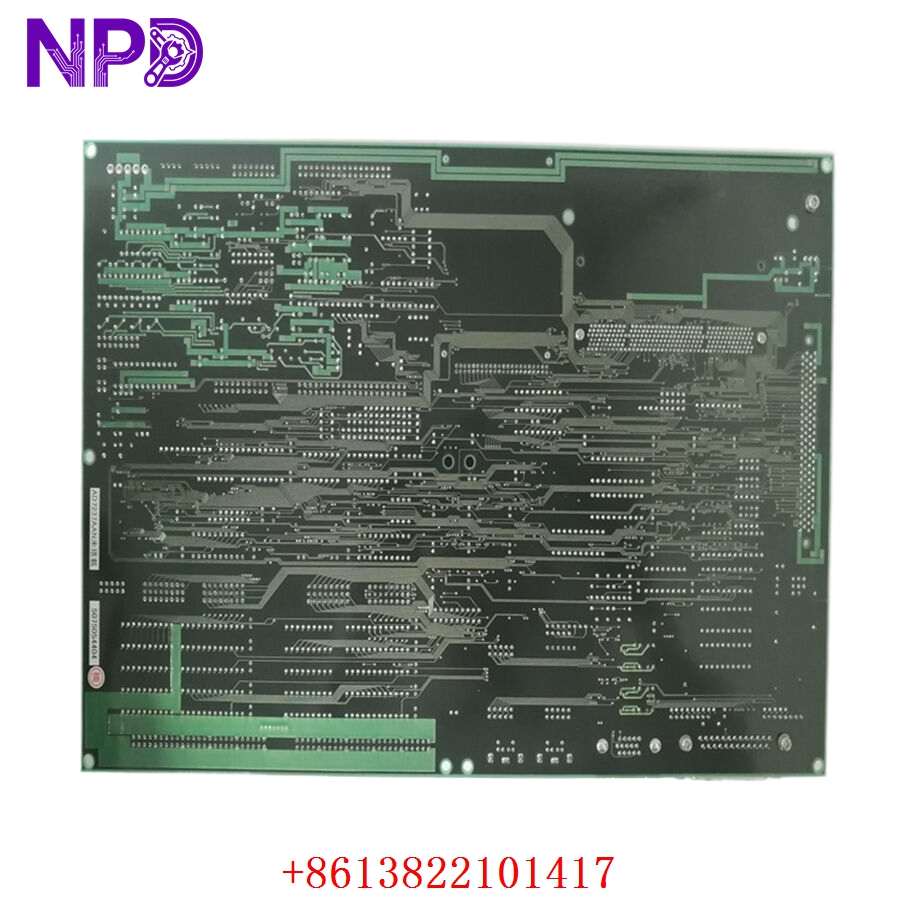

KOKUSAI CXP-544A KOMS-A2
Applications
- Vertical Thermal Furnaces: Manages multi-zone gas injection profiles during diffusion, oxidation, and deposition steps in semiconductor wafer production.
- CVD/LPCVD Systems: Provides the high-speed loop response necessary for maintaining stable pressure and gas stoichiometry during thin-film deposition.
- Semiconductor Gas Cabinets: Interfaces with critical mass flow controllers to monitor gas consumption and detect flow anomalies in real-time.
- Process Gas Delivery: Regulates carrier gases and reactive precursors, ensuring precise delivery required for advanced node (e.g., 7nm, 5nm) process requirements.
Product Usage Instructions
- Safety Precautions: Due to the nature of semiconductor process gases (which may be flammable, toxic, or corrosive), ensure the gas supply is fully purged and locked out before removing or servicing the CXP-544A module.
- Module Installation: This unit is designed to be housed within a KOMS-A2 controller rack. Slide the module into the designated rack slot, ensuring the backplane connectors are correctly aligned. Secure the module using the front-panel captive screws to maintain proper system grounding.
- Signal Integration: Connect the Mass Flow Controller (MFC) analog cables to the designated ports on the rear of the rack or the front-facing terminal strip. Confirm that the command (setpoint) and monitor (feedback) signals are mapped correctly according to your KOKUSAI system wiring schematics.
- System Calibration: Access the KOKUSAI system controller terminal to perform flow calibration. The CXP-544A requires accurate scaling of the analog signals (typically 0–5V or 4–20mA) to ensure the physical gas flow matches the process setpoint.
Frequently Asked Questions (Q&A)
- Q: Is the CXP-544A compatible with third-party mass flow controllers? A: While the module is built for KOKUSAI-specific integration, it interfaces with standard analog signal ranges. However, using non-standard or non-validated MFCs may lead to communication or response-time discrepancies, which can impact process uniformity on sensitive semiconductor nodes.
- Q: What do the status indicators on the KOMS-A2 front panel signify regarding this module? A: The indicators typically monitor communication health between the master controller and the CXP-544A. A steady light confirms normal bus communication, while a flashing light usually indicates a timeout error or a loss of feedback from the attached flow controllers.
- Q: Can the CXP-544A be repaired if a single channel fails? A: Because this hardware is designed for mission-critical semiconductor fabrication, individual channel repair is generally not recommended or possible. If a channel failure occurs, the entire module must be replaced and recalibrated to maintain the integrity of the thermal furnace process.
- Q: How does the CXP-544A maintain gas flow stability during pressure fluctuations? A: The module operates within the high-speed KOMS-A2 feedback loop. It processes MFC feedback at high sample rates, allowing the controller to adjust flow setpoints dynamically in response to detected pressure drifts, thereby keeping the overall deposition or diffusion rate stable.
