Description
- Part Number: AUE-1108 (303102)
- Manufacturer: Kongsberg Maritime
- Series: K-Chief 600 / DataChief C20
- Input Channels: 8 Configurable Analog Inputs
- Signal Types: RTD (Pt100), Thermocouple (Type J, K), 0–10 V, 0/4–20 mA
- Resolution: 16-Bit
- Communication: Dual redundant CAN bus (Process Bus)
- Operating Voltage: 24 VDC (Nominal)

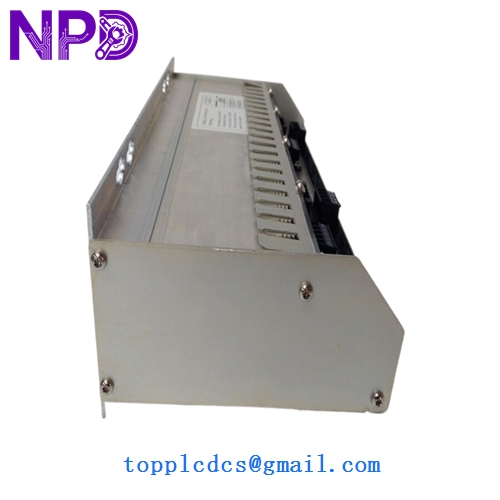

KONESBERG AUE-1108
Product Description
The Kongsberg AUE-1108 is a versatile Analog Universal Engine module designed for marine automation and monitoring systems. It is a core component of the K-Chief 600 and DataChief C20 architectures, providing high-precision data acquisition for engine room monitoring and cargo handling systems.
The “Universal” designation refers to its ability to handle multiple sensor types on a single module. Each of the 8 channels can be independently configured via software to interface with different signal sources, such as temperature sensors (RTDs and Thermocouples) or pressure transmitters (4–20 mA). The module is built into a rugged, marine-grade housing and communicates with the main controller via a redundant CAN bus, ensuring high availability in critical maritime environments.
Application Areas
- Main Engine Monitoring: Tracking cylinder exhaust temperatures and cooling water pressures.
- Auxiliary Machinery: Monitoring lubrication oil systems for generators and compressors.
- Tank Gauging: Interfacing with level transmitters for fuel, ballast, and cargo tanks.
- Bridge Systems: Providing centralized data for Integrated Navigation and Automation Systems (INAS).

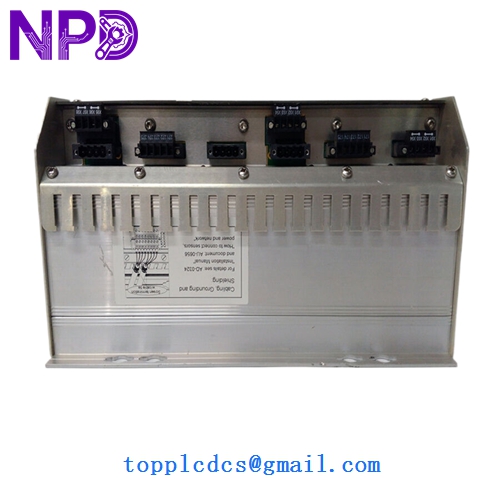

KONESBERG AUE-1108
Product Specifications
- Weight: 0.55 kg
- Mounting: 35mm DIN rail
- Protection Rating: IP20 (Requires installation in a marine-approved enclosure)
- Diagnostics: Internal self-test with LED status for power, communication, and channel faults
- Country of Origin: Norway
Operating Precautions
- Redundant Wiring: Always connect both CAN A and CAN B ports to the process bus. The AUE-1108 is designed to switch seamlessly between buses to prevent data loss in the event of a cable failure.
- Configuration Tool: Channel settings must be matched in the Kongsberg system configuration software. Ensure the jumper settings (if applicable) or software parameters correctly reflect the sensor type to avoid damage to the input circuitry.
- Grounding: In marine environments, proper shielding and grounding are critical. Ensure the module’s ground terminal is connected to the cabinet’s instrument earth to minimize signal noise from shipboard power systems.
- Temperature Limits: While designed for engine room environments, ensure the module is not mounted directly against high-heat surfaces. Maintain adequate ventilation within the I/O cabinet to ensure long-term stability of the analog-to-digital converters.

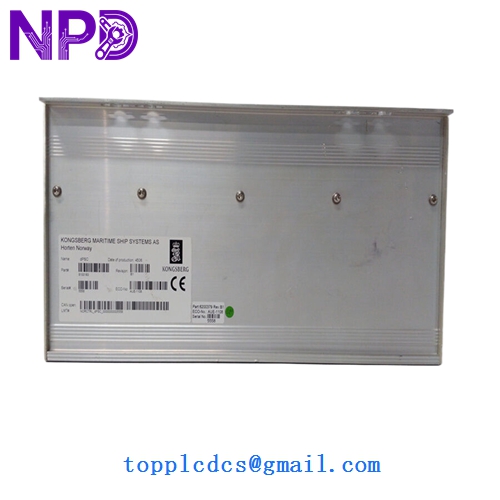

KONESBERG AUE-1108
Recommended Similar Products
| Model Number | Product Description | Channels |
|---|---|---|
| DUE-1108 | Digital Universal Engine Module | 8-ch Digital |
| AUI-1108 | Analog Universal Input Module | 8-ch Input |
| MPC-700 | Marine Process Controller | Main CPU |
| RB-1108 | Relay Board Module | 8-ch Output |
| AUE-1116 | High-Density Analog Module | 16-ch Input |
