Description

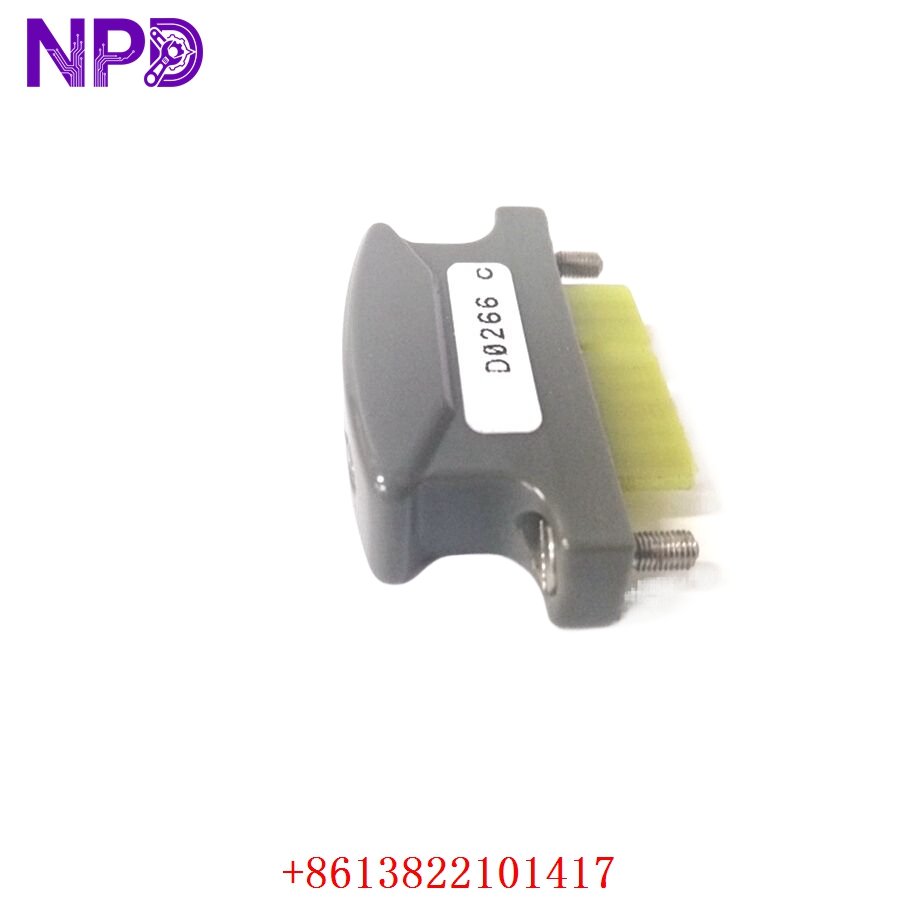

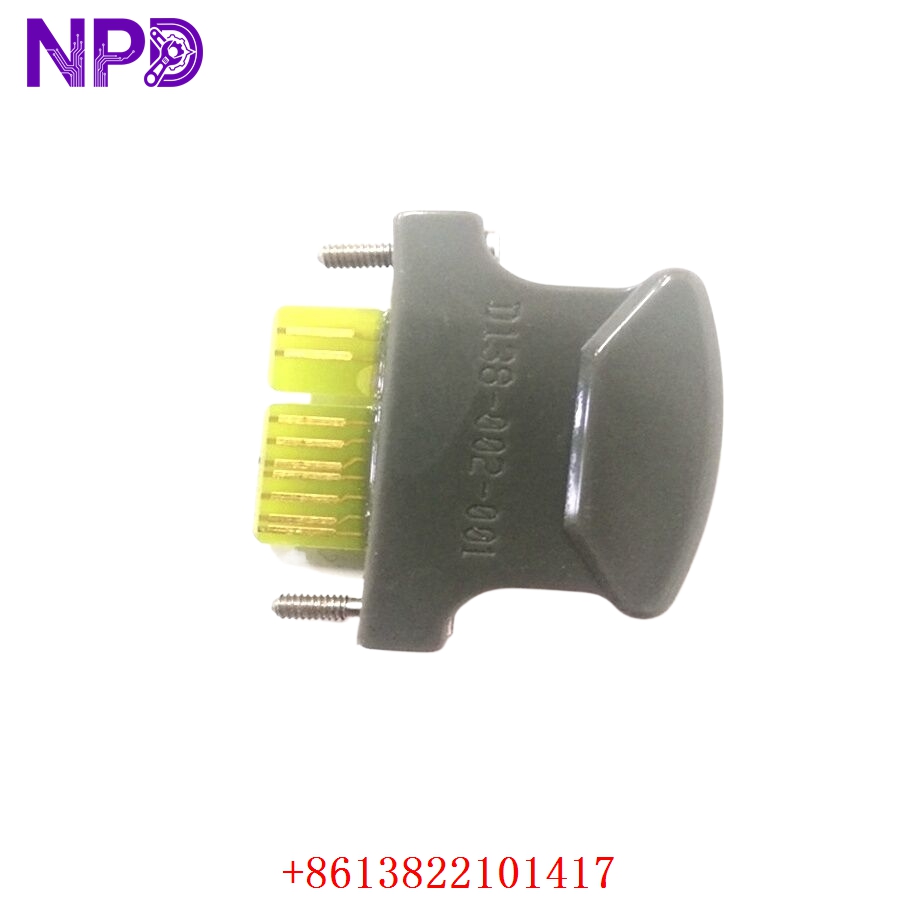

- Model: MOOG D138-002-001
- Brand: MOOG
- Series: D138 Servo Electronics Series
- Core Function: Controls electro-hydraulic servo valve positioning
- Product Type: Servo Valve Control Module
- Key Specs: Analog command input, closed-loop control, hydraulic servo interface
The D138-002-001 is commonly installed in high-response hydraulic systems where precise valve positioning matters. You’ll often find it in:
- Steam turbine control skids
- Steel mill servo systems
- Test benches
- Injection molding machines
- Aerospace hydraulic simulation equipment
Its job sounds simple — convert command signals into stable hydraulic movement — but in real operation, servo electronics live under constant thermal and vibration stress.
And honestly, servo problems rarely announce themselves clearly.
Typical field symptoms include:
- Hydraulic oscillation
- Valve hunting
- Slow actuator response
- Position drift
- Intermittent startup faults
Maintenance teams sometimes replace the hydraulic valve first, only to discover later that unstable servo electronics caused the issue all along.
From a spare parts strategy perspective, servo controllers deserve higher criticality ranking because:
- Lead time variability for MOOG legacy electronics has increased
- Unexpected failure can stop entire hydraulic production lines
- Troubleshooting time is usually expensive
- Emergency air freight costs escalate quickly during outages
For critical hydraulic applications:
- Maintain at least 1 tested spare onsite
- Store modules in climate-controlled cabinets
- Perform annual live testing on stored inventory
- Track firmware and calibration records carefully
Many plants now treat D138-series inventory as lifecycle insurance rather than ordinary spare stock.
Key Technical Specifications
- Product ID: D138-002-001
- Series: D138 Servo Electronics
- Product Type: Electro-Hydraulic Servo Controller
- Input Signal Type: Analog command input
- Feedback Support: Position feedback loop
- Control Method: Closed-loop servo control
- Output Interface: Servo valve drive output
- Supply Voltage: 24 V DC typical industrial supply
- Signal Compatibility: ±10 V analog control
- Response Characteristics: High-speed dynamic response
- Mounting Method: Rack/panel mounting
- Cooling Method: Passive industrial convection cooling
- Operating Temperature: Industrial operating environment
- Protection Features: Overcurrent and signal protection
- Application Compatibility: Hydraulic motion and positioning systems
- Communication Type: Hardwired analog control interface
- Environmental Protection: Industrial cabinet installation
- Typical Applications: Turbine control, motion simulation, hydraulic actuation
