Description
The ProSoft 5302-MBP-MCM4 is a specialized communication module designed for the Schneider Electric (Modicon) Quantum PLC platform. It acts as a gateway, allowing the Quantum backplane to interface with Modbus Plus networks and multiple Modbus Serial devices simultaneously.
Product Parameters (Datasheet)
- Model Number: 5302-MBP-MCM4
- Platform Compatibility: Schneider Electric Modicon Quantum
- Communication Ports: * 1 Modbus Plus (MBP) Port
- 4 Modbus Serial (RS-232/422/485) Ports
- Backplane Current Load: 800 mA @ 5 VDC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95% (Non-condensing)
- LED Indicators: Module Status, Backplane Transfer, Serial Port Activity (Link/Active)

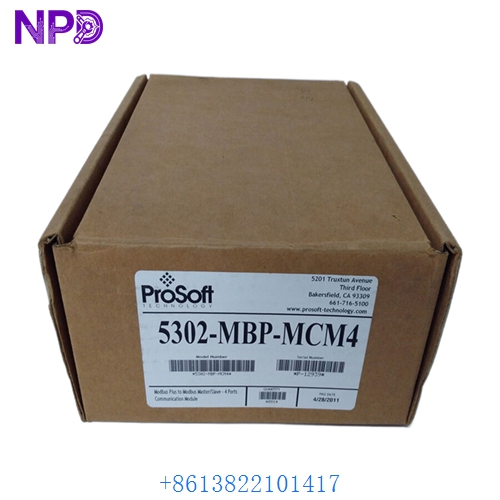

PROSOFT 5302-MBP-MCM4
PROSOFT 5302-MBP-MCM4
PROSOFT 5302-MBP-MCM4
Country of Origin
This module is manufactured by ProSoft Technology in the United States, specializing in industrial connectivity solutions for legacy and modern PLC platforms.
Application Fields
The 5302-MBP-MCM4 is primarily used to bridge disparate communication standards in industrial settings:
- Legacy System Integration: Connecting older Modbus serial devices (meters, drives, and protection relays) to a Quantum-based Modbus Plus network.
- SCADA Connectivity: Acting as a data concentrator for four separate serial loops, delivering data to a centralized HMI via the Quantum backplane.
- Oil & Gas: Interfacing flow computers and tank gauging systems with the main plant controller.
- Water/Wastewater: Managing communications between remote telemetry units (RTUs) and the central PLC.
Product Usage Instructions
- Hardware Setup: Insert the module into any available slot in the Quantum rack. Ensure the module is firmly seated before powering on the rack.
- Jumper Settings: Check the physical jumpers on the module side to select the serial communication standard (RS-232, RS-422, or RS-485) for each of the four MCM ports.
- Configuration: Use the ProSoft Configuration Builder (PCB) software to define the Modbus master/slave settings, baud rates, parity, and data mapping.
- Network Connection: Connect the Modbus Plus cable to the MBP port using standard global connectors. Connect serial devices to ports 1 through 4 using the appropriate pinout.
- PLC Logic: Implement the necessary “MSTR” blocks or backplane transfer logic in the Quantum software (Concept, ProWORX, or Unity Pro/Control Expert) to exchange data with the module’s internal memory.
Product Technical Description
The 5302-MBP-MCM4 functions as a sophisticated protocol converter. Technically, it manages five independent communication tasks: one high-speed Modbus Plus node and four Modbus Serial ports. The “MCM4” designation signifies its capability to act as a Modbus Communication Master or Slave on four separate serial channels. The module includes an internal database that stores data from the serial devices, which the Quantum CPU then accesses via high-speed backplane transfers. This reduces the processing load on the PLC CPU by handling the complex serial timing and protocol wrapping within the ProSoft hardware.
Q&A (Common Questions)
Q: Can I use all four serial ports as Modbus Masters? A: Yes, each of the four serial ports is independently configurable. You can have any combination of Masters and Slaves across the ports.
Q: Does this module require a separate power supply? A: No, it draws all necessary operating power directly from the Quantum backplane.
Q: What is the maximum distance for the Modbus Plus port? A: Following standard Modbus Plus specifications, the segment can reach up to 450 meters (1,500 feet) without repeaters.
Q: Is this module compatible with Unity Pro software? A: Yes, the module can be integrated into Unity Pro (now EcoStruxure Control Expert) using the generic module profile or specific ProSoft configuration tools.
Similar Model Recommendations
- ProSoft 5301-MBP-MCM (Single serial port version)
- ProSoft MVI94-MCM (Flex I/O Modbus Master/Slave module)
- ProSoft MVI69-MCM (CompactLogix Modbus Serial module)
- Schneider Electric 140NOM21100 (Standard Quantum Modbus Plus module)
- ProSoft 5302-MBP-ASCII (Serial ASCII variant for the same platform)
For more information on the ProSoft 5302-MBP-MCM4 and other Quantum communication solutions, please contact our technical support team.
