Description

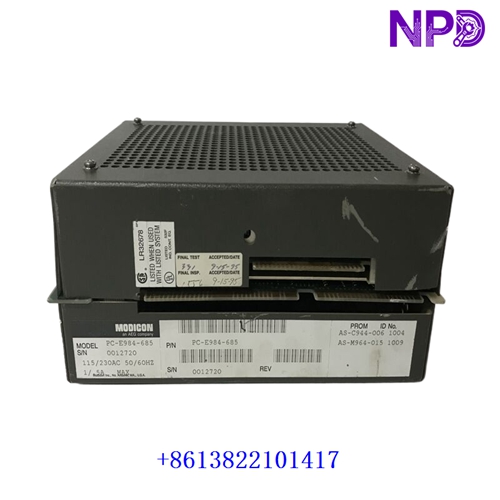

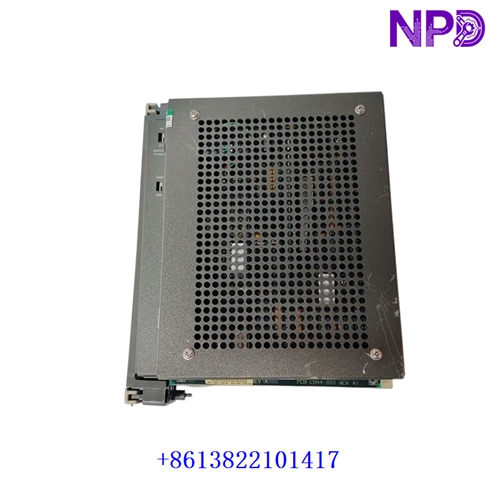

The Schneider Electric / Modicon PC-E984-685 is a legacy high-performance programmable controller module belonging to the renowned Modicon 984 family. Designed for robust industrial process control and automation applications, it integrates processing power, memory, and communication capabilities into a compact modular footprint compatible with Modicon 800-series I/O and mainframes.
| Parameter | Specification |
| Brand / Manufacturer | Schneider Electric / Modicon |
| Model / Part Number | PC-E984-685 |
| Product Type | 984 Compact Programmable Controller CPU Module |
| System Compatibility | Modicon 800 Series I/O and Legacy 984 Mainframes |
| Programming Language | Modsoft / Concept / ProWORX compatible (Ladder Logic / Relay Ladder Logic) |
| Communication Ports | Modbus Plus (MB+) high-speed peer-to-peer network port, Modbus RTU serial port |
| Power Requirements | Powered via system backplane / rack power supply |
| Product Status | Industrial Automation Spare Part / Legacy System Support |
First-Run Inspection Checklist
- ☑ Physical & Faceplate Integrity
Inspect the front-panel status LEDs, communication connectors, key switch, and rear backplane pins for any transit damage, bending, or dust accumulation.
- ☑ Rack Slot Alignment
Ensure that the target Modicon rack slot is clean, unobstructed, and correctly aligned to prevent backplane pin damage during module insertion.
- ☑ Battery & Memory Backup Check
Verify the status of the internal lithium backup battery to ensure user logic and retentive registers are preserved during power interruptions.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Ensure that industrial control enclosures housing Modicon 984 racks maintain stable operating temperatures and remain free of excessive dust, moisture, or corrosive agents.
- 🔌 Modbus Plus Network Inspection
Periodically inspect Modbus Plus cabling, tap connectors, and shield grounding to maintain reliable peer-to-peer communication across the control network.
Troubleshooting & Common Issues
- ⚠️ Controller Fault / Watchdog Error
If the internal watchdog or controller fault LED illuminates, verify program logic integrity, check backplane seating depth, and review diagnostic registers via programming software.
- ⚠️ Modbus Plus Communication Dropouts
If network communication fails, check cable continuity, verify proper 3-pin connector wiring polarity, and ensure network terminators are correctly installed at both ends of the trunk line.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, configuration, and hardware maintenance must be executed exclusively by certified automation technicians familiar with legacy Modicon 984 architecture and programming tools.
- ⚠️ Power Isolation
Always isolate and lock out system power before inserting or extracting the CPU module from the rack to prevent electrical arcing, module damage, or unexpected process restarts.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary role of the PC-E984-685 controller?
A: It acts as the central processing unit (CPU) for Modicon 984 control systems, executing ladder logic user programs and managing I/O data exchanges across connected racks and communication networks.
- ❓ Q2: What communication networks does this module support out of the box?
A: It features built-in support for Modbus Plus for high-speed peer-to-peer networking, alongside standard Modbus serial connectivity for programming and HMI interface integration.
