Description
- Model Number: AS-P892-000 (also known as 140CPS11420)
- Series: Modicon Quantum
- Input Voltage: 115 V / 230 V AC (Standalone/Single phase)
- Input Voltage Range: 93–132 V AC / 170–263 V AC
- Input Frequency: 47–63 Hz
- Output Voltage: 5.1 V DC
- Output Current: 11 A (Sum of all slots on the backplane)
- Power Requirement: 130 VA
Product Description The Schneider Electric AS-P892-000 is a high-capacity AC power supply module designed for the Modicon Quantum automation platform. It is the core energy provider for the Quantum backplane, converting utility AC power into the regulated 5.1 V DC required by the CPU, communication modules, and I/O cards. The module features built-in protection against overvoltage, overcurrent, and short circuits, ensuring the stability of the entire PLC rack. A front-panel LED provides immediate status indication, and a removable terminal block simplifies field wiring and module replacement.
Application Areas This power supply is a fundamental component of any Modicon Quantum system used in:
- Infrastructure Management: Water treatment plants and tunnel ventilation systems.
- Manufacturing: Automotive assembly lines and food and beverage processing.
- Energy: Small-scale power distribution and substation automation.
- Redundancy Systems: When used in specialized racks, it can support redundant power configurations for high-availability applications.

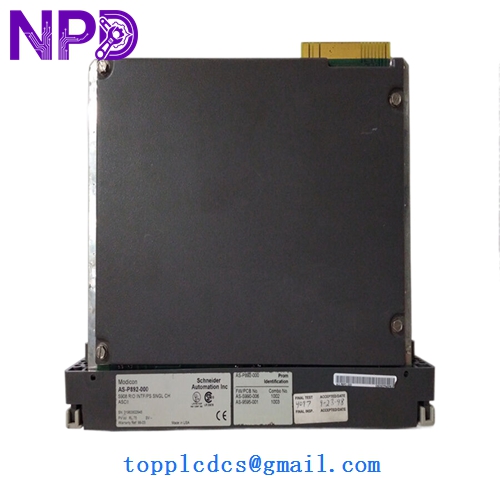

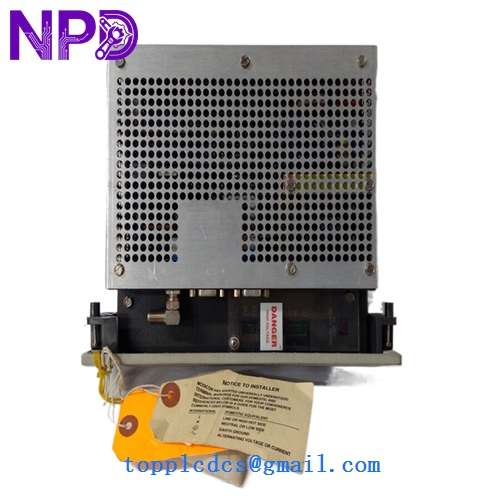

MODICON AS-P892-000
MODICON AS-P892-000
MODICON AS-P892-000
Product Specifications
- Weight: 1.30 kg
- Dimensions: 250 mm x 103.4 mm x 40.3 mm (Occupies 1 slot)
- Country of Origin: France / USA
- Inrush Current: 30 A (115 V) / 60 A (230 V)
Operational Precautions
- Voltage Selection: Ensure the input voltage selector (if applicable) or wiring configuration matches your local AC utility before applying power. Applying 230 V to a unit configured for 115 V will result in immediate hardware failure.
- Slot Placement: The power supply is typically installed in the leftmost slot (Slot 1) of the Quantum backplane. Ensure it is fully seated and the locking screws are tightened to maintain a solid electrical connection to the bus.
- Current Budgeting: While this module provides 11 A, you must calculate the total current draw of all modules in the rack. If the combined draw exceeds 11 A, the system may exhibit intermittent resets or failure to boot.
- Ventilation: Do not block the cooling vents on the top or bottom of the module. The Quantum system relies on natural convection; restricted airflow can lead to thermal shutdown and reduced component lifespan.
Recommended Similar Product Models
| Model Number | Product Category | Feature Set |
|---|---|---|
| 140CPS11100 | Power Supply | 115/230V AC (3A Output) |
| 140CPS11410 | Power Supply | 115/230V AC (8A Output) |
| 140CPS12420 | Power Supply | 115/230V AC (Redundant Capable) |
| 140CPS21400 | Power Supply | 24V DC Input (11A Output) |
| 140CPS52400 | Power Supply | 125V DC Input (8A Output) |
