Description
Technical Parameters
- Part Number: 490NRP25400
- Manufacturer: Schneider Electric (Modicon)
- Series: Quantum Automation Series
- Network Type: Remote I/O (RIO) S908
- Media Type: Fiber Optic to Fiber Optic (Multi-mode)
- Fiber Connector: ST Connectors
- Wavelength: 820 nm
- Max. Distance: Up to 3,000 meters (approx. 2 miles) depending on fiber quality
- Topology: Point-to-Point, Star, or Daisy-Chain
Product Description
The Schneider Modicon Quantum 490NRP25400 is a fiber optic repeater module designed to extend the distance and noise immunity of the Modicon S908 Remote I/O network. It converts electrical signals from the standard coaxial RIO cable into optical signals, allowing the network to traverse long distances or pass through high-interference environments where standard copper cabling would fail.
This module is essential for large-scale industrial sites where I/O racks are distributed across different buildings or floors. By using fiber optics, it provides total galvanic isolation between network segments, protecting the system from ground loop currents and lightning-induced surges.

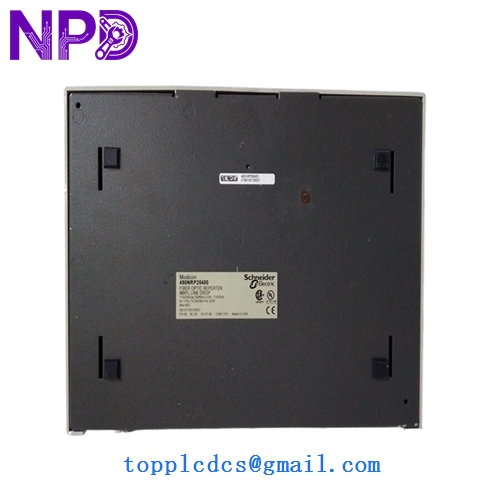

Schneider 490NRP25400
Application Areas
- Mining & Metal Processing: Connecting remote pit stations to a central control room over several kilometers.
- Water Treatment Plants: Networking distributed pumping stations and filtration bays across large facilities.
- High-EMC Environments: Running communication lines near high-voltage motor drives or arc furnaces without data corruption.
- Campus-Style Facilities: Linking different physical buildings into a single Quantum PLC control architecture.
Product Specifications
- Weight: 0.45 kg
- Dimensions: 250 mm x 40 mm x 103 mm (Standard Quantum Slot)
- Power Supply: Draws power directly from the Quantum Backplane
- Baud Rate: 1.544 Mbps (S908 Standard)
- Country of Origin: France / USA
Operating Precautions
- Fiber Type Compatibility: This module is designed for Multi-mode fiber. Do not attempt to use Single-mode fiber, as the core diameter difference will lead to massive signal loss and link failure.
- Connector Care: ST connectors must be kept clean. Use a specialized fiber cleaning pen or isopropyl alcohol wipes before inserting the cable to prevent “pitting” of the optical interface.
- Redundancy: If your RIO network is configured for cable redundancy, you must use two 490NRP25400 modules—one for Cable A and one for Cable B—to maintain full system availability.
- Optical Power Budget: Ensure the total attenuation (loss) of the fiber run and connectors does not exceed the module’s 12dB power budget to ensure reliable data transmission.
Recommended Similar Products
| Model Number | Product Description | Media Type |
|---|---|---|
| 490NRP25300 | Fiber Optic Repeater | Coax to Fiber |
| 490NRP95400 | Fiber Optic Repeater (Single Mode) | Single Mode Fiber |
| 140NOM21100 | Modbus Plus Network Module | Modbus Plus |
| 140CRP93100 | RIO Head Processor | RIO Main |
| 140CRA93100 | RIO Adapter Module | RIO Remote |
