Description
The Triconex DO3401 (Model 3401) is a 115V AC Triple Modular Redundant (TMR) Digital Output module designed for the Tricon safety system. It provides 16 isolated output points and is engineered for mission-critical safety instrumented systems (SIS) where high-voltage AC switching and maximum reliability are required.
Product Parameters (Datasheet)
- Model Number: 3401 (DO3401)
- Module Type: TMR Digital Output
- Output Voltage: 115V AC (Nominal)
- Voltage Range: 95–155V AC
- Number of Points: 16 (Isolated)
- Current Rating: 2A per point (Maximum)
- Surge Current: 10A (for 10ms)
- Minimum Load: 50mA
- Frequency: 47–63 Hz
- Self-Test Interval: Every 500ms
- Point Isolation: 1500V AC
- Hot-Swappable: Yes

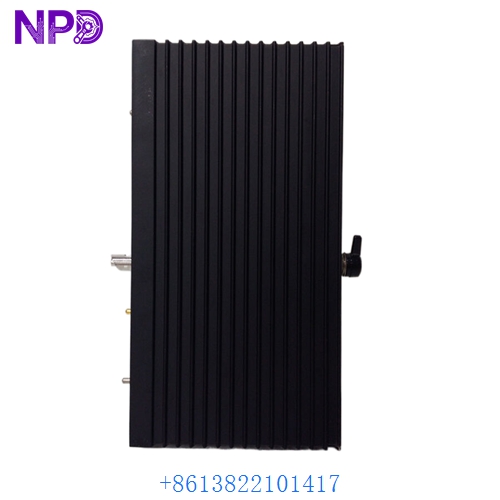

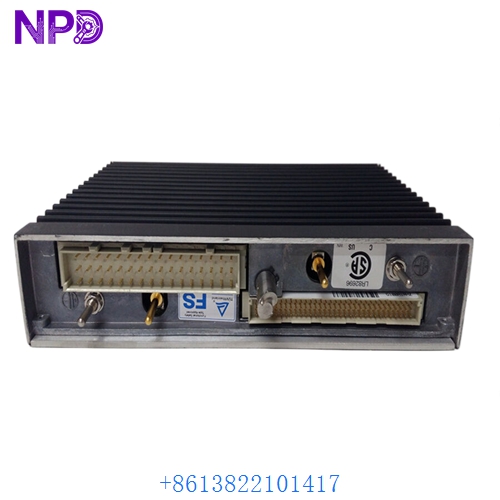

TRICONEX DO3401
TRICONEX DO3401
TRICONEX DO3401
Application Fields
The DO3401 is typically found in safety architectures managing high-voltage AC final elements:
- Burner Management Systems (BMS): Operating heavy-duty fuel and ignition valves in large boilers or furnaces.
- Emergency Shutdown (ESD): Controlling 115V AC motor-operated valves (MOVs) and isolation dampers.
- Fire & Gas (F&G): Activating high-power sirens, strobes, and suppression systems.
- Substation Control: Managing auxiliary relay logic and breaker control circuits.
- Material Handling: Safe-stop control for heavy industrial conveyor systems and lifts.
Product Usage & Installation
- Slot Placement: Insert the DO3401 into any I/O slot in a Tricon v9 or v10 chassis. The module is keyed to prevent insertion into low-voltage DC slots.
- Termination: This module must be paired with the correct External Termination Assembly (ETA) or Field Termination Assembly (FTA) designed for 115V AC signals.
- Fuse Protection: Ensure that field wiring is properly fused. While the module has internal diagnostic protection, external fusing is recommended to protect the module against field-side shorts.
- TMR Configuration: The module automatically participates in the Tricon “2-out-of-3” voting. No manual voter configuration is required on the hardware level.

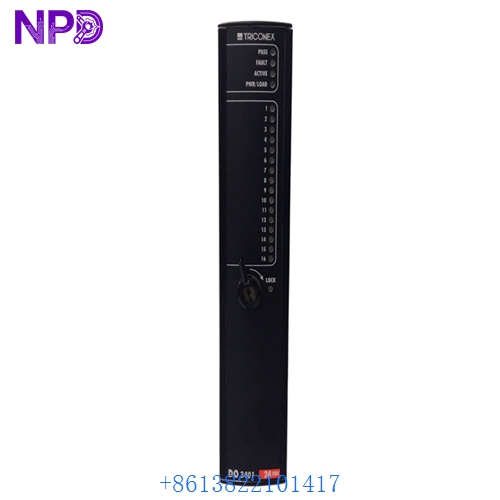

- Monitoring: Use the front-panel “PASS,” “FAULT,” and “ACTIVE” LEDs to verify health. A steady green “ACTIVE” LED indicates the module is correctly processing outputs from the Main Processors.
Product Technical Description
Technically, the DO3401 utilizes Triple Modular Redundant (TMR) architecture. Each of the 16 output points is governed by three independent legs of internal logic. These three legs are physically voted at the output stage. If one leg fails (either “stuck-on” or “stuck-off”), the remaining two legs ensure the output maintains the correct safety state.
A key feature of the DO3401 is the Output Voter Test (OVT). The module periodically pulses its output switches to verify they can change state. These pulses are so fast (<2ms) that they do not affect the state of the connected field load, allowing for continuous hidden-fault detection while the system is online.
Q&A (Common Questions)
Q: Can I use the DO3401 to switch DC loads? A: No. The DO3401 uses triac-based switching technology designed for AC current. Using it with DC will prevent the module from being able to turn off the load.
Q: What is the benefit of isolated points? A: Each point is individually isolated, meaning you can use different 115V AC sources for different points without risking cross-talk or ground loops between the channels.
Q: Does this module support line monitoring? A: Basic line monitoring for open circuits can be achieved when paired with specific Triconex supervised termination assemblies.
Q: What happens if I pull the module while it’s active? A: The Tricon system is designed for hot-swapping. If a “Hot Spare” module is present in the adjacent slot, it will take over seamlessly. If not, the outputs will remain in their last commanded state for a brief window until the system enters its programmed fail-safe mode.
Similar Model Recommendations
- Triconex 3700: 115V AC Digital Output (Alternative density/version).
- Triconex 3601E: 115V AC Digital Input module for high-voltage sensing.
- Triconex 3721: 24V DC Digital Output module (for low-voltage logic).
- Triconex 3501E: 115V AC/DC Digital Input (Universal voltage version).
- Triconex 3704E: High-density 120V AC Digital Output (32-point variant).
For technical datasheets or to check current stock for the Triconex DO3401, please contact our support team.
