ABB INNPM22 | Symphony Network Process Module

The ABB INNPM22 is a Network Processor Module used in ABB Bailey INFI 90 and Symphony control-system architectures. It functions as a network-processing interface between the control network and the controller-side communication architecture. ABB documentation identifies the INNPM22 as an INFI-Net network processor module, while the later SPNPM22 provides the corresponding fit-and-function replacement within Symphony Plus.

The module is designed to work with the INNIS21 network interface module. Together, these modules provide a Harmony control unit with access to the Control Network (Cnet). This makes the INNPM22 suitable for communication, network processing, controller integration, and maintenance of compatible legacy ABB Symphony control systems.

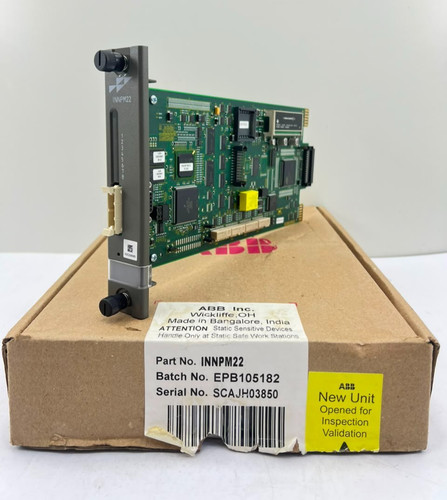

INNPM22

⚙️ Product Datasheet

Parameter	Specification
Brand	ABB
Model	INNPM22
Series	Symphony / INFI 90
Product Name	Network Processor Module
Module Type	INFI-Net Network Processor
Application	Industrial DCS Network Communication
Related Module	INNIS21
Country of Origin	Manufacturer configuration dependent
Condition / Status	New Surplus / Original Stock
Dimensions	Approx. 269 × 71 × 358 mm*
Weight	Approx. 1.84 kg*
Power	5 VDC; system configuration dependent

*Physical specifications may vary by mounting assembly and source configuration. The ABB product documentation identifies INNPM22 as a communication module; verify the installed hardware before replacement.

🔧 Key Features

🌐 INFI-Net network processing functionality
🏭 Designed for ABB Bailey INFI 90 / Symphony architectures
🔄 Works with the INNIS21 Network Interface Module
🧩 Provides network access for compatible Harmony control units
⚙️ Supports controller-to-network communication
🔌 Designed for Harmony rack installation
🔧 Suitable for legacy DCS maintenance and replacement
🔄 SPNPM22 is documented as a fit-and-function replacement for INNPM22 in Symphony Plus applications.

❓ Common Questions & Answers

Q: What is the ABB INNPM22?
A: It is an ABB Network Processor Module used in INFI-Net communication architectures for compatible Bailey and Symphony control systems.

Q: What does the INNPM22 do?
A: It provides network-processing functions that allow the associated control unit to communicate through the control network.

Q: Which module works with INNPM22?
A: The INNIS21 Network Interface Module is the associated network interface. ABB documentation describes the INNIS21 and INNPM22 as the main modules of the Cnet-to-HCU interface.

Q: Is INNPM22 compatible with Symphony Plus?
A: The later SPNPM22 is documented as a fit-and-function replacement for the INNPM22. Compatibility should still be confirmed against the specific system configuration.

Q: Is INNPM22 an I/O module?
A: No. It is primarily a communication/network processor module rather than a conventional analog or digital I/O module.

Q: What should be checked before replacement?
A: Confirm the complete part number, rack type, associated INNIS21 module, firmware/software requirements, network configuration, and existing system architecture.
