1. Product Description
The Bosch Rexroth VT-MVTW-1-16/D is an industrial hydraulic control module associated with the VT-HNC100 digital axis-control family. It is designed for closed-loop control of hydraulic axes in machinery requiring accurate positioning and coordinated motion, including industrial presses, metal-forming equipment, and automated production systems.
The VT-HNC100 family supports programmable numerical control functions for hydraulic drives, with position feedback and configurable control interfaces. Depending on the system configuration, the controller can interface with sensors, hydraulic valves, and higher-level automation systems through digital I/O and fieldbus connections. Verify the exact type code, hardware revision, and system configuration before selecting a replacement.

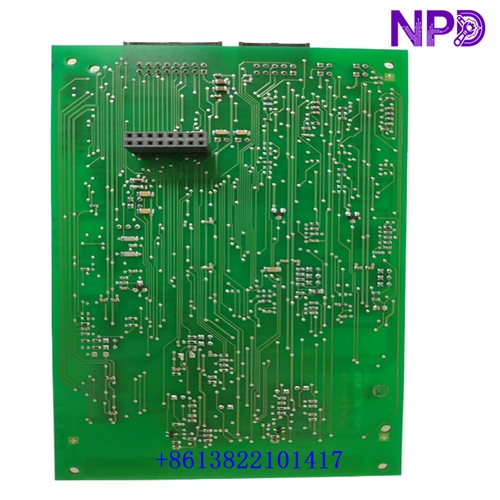

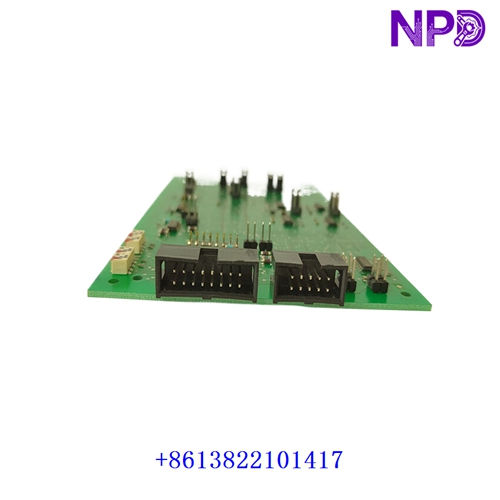

VT-MVTW-1-16/D
2. Product Parameters — Datasheet
Brand: Bosch Rexroth
Model: VT-MVTW-1-16/D
Product Name: Digital Hydraulic Axis Control Module
Product Series: VT-HNC100 / Hydraulic Axis Control
Product Type: Digital Control Electronics
Primary Function: Closed-loop hydraulic axis control
Control Application: Hydraulic positioning and motion control
Controlled Axes: Single hydraulic axis for the configuration associated with this designation; verify the exact variant
Digital I/O: Eight digital inputs/outputs reported for the associated configuration; confirm the manual
Fieldbus Interface: PROFIBUS-DP reported for related VT-HNC100 configurations; verify the exact hardware option
Position Feedback: Depends on the installed sensor and configured interface
Power Requirements: Confirm the voltage and current ratings from the unit label and applicable technical documentation
Programming: Configuration and control parameters depend on the supported VT-HNC software and firmware
Dimensions: Not independently confirmed for the exact model
Weight: Not independently confirmed
Place of Manufacture: Bosch Rexroth, Germany; verify the individual unit label
Country of Origin: Confirm from the product nameplate
Product Status: Availability depends on supplier stock; new surplus or used units may be available
Discontinued: Current lifecycle status not confirmed for this exact designation
Installation: Compatible hydraulic control cabinet or designated host equipment
Compatibility: Verify controller family, feedback sensor, I/O configuration, fieldbus option, and firmware before replacement
3. Recommended Bosch Rexroth Models
The following products are related to hydraulic axis control and proportional valve control. They are comparison and sourcing candidates, not guaranteed direct replacements for VT-MVTW-1-16/D.
- Bosch Rexroth VT-HNC100-1-23/W-08-P-0 — Digital hydraulic axis controller for closed-loop positioning applications.
- Bosch Rexroth VT-HNC100-1-22/W-08-C-0 — Related HNC100 controller configuration; verify its interfaces and control functions.
- Bosch Rexroth VT-HNC100-2-30/P-I-00/G02 — Related digital hydraulic control electronics designation.
- Bosch Rexroth VT-HNC100 — Controller family for programmable hydraulic axis control.
- Bosch Rexroth VT-HNC100-1 — Single-axis controller family designation; confirm the complete order code.
- Bosch Rexroth VT-HNC100-2 — Related controller family designation for configurations requiring a different axis arrangement.
- Bosch Rexroth VT-MVTW-1-16D — Closely related catalog designation; verify suffix and hardware revision before substitution.
- Bosch Rexroth VT-MRPA1-100-1X/V0/0 — Proportional valve amplifier for a valve with one solenoid and position feedback.
- Bosch Rexroth VT-MRPA2-1-1X/V0/0 — Proportional valve control amplifier for a two-solenoid configuration with position feedback.
- Bosch Rexroth VT-MSPA1-2X/A5/000/000 — Amplifier for a proportional valve with one solenoid and no position feedback.
- Bosch Rexroth VT-MSPA2-2X/A5/000/000 — Amplifier for a proportional valve with two solenoids and no position feedback.
- Bosch Rexroth VT-SSPA1-508-2X/V0/0 — Proportional valve amplifier for one-solenoid applications.
- Bosch Rexroth VT-VRPA1-100-1X/V0/0 — Valve amplifier for a control valve with position feedback.
- Bosch Rexroth VT-HMC-2-1X/M-0-00/00 — Hydraulic motion controller for two-axis applications.
- Bosch Rexroth VT-HPC-1-1X/M-0-00/00 — Hydraulic pump controller for pump displacement and pressure-related control functions.
For procurement, verify the complete VT-MVTW-1-16/D designation against the nameplate and original machine documentation. Pay particular attention to the axis configuration, sensor input, I/O arrangement, fieldbus interface, and firmware compatibility before replacing or commissioning the module.
