Description
Product Description

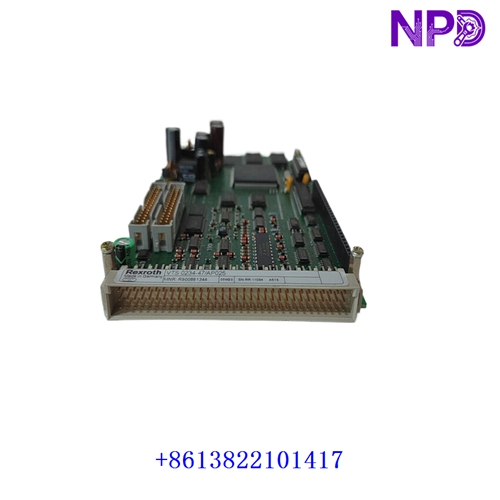

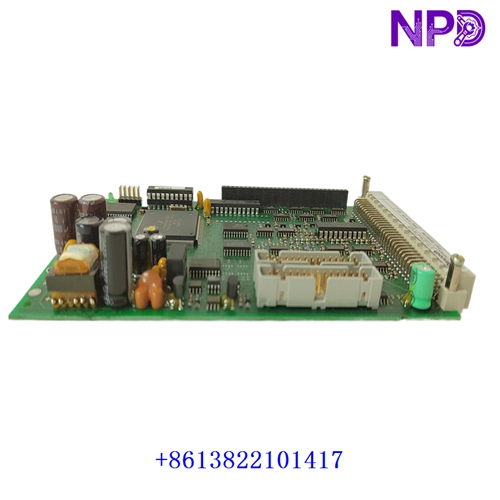

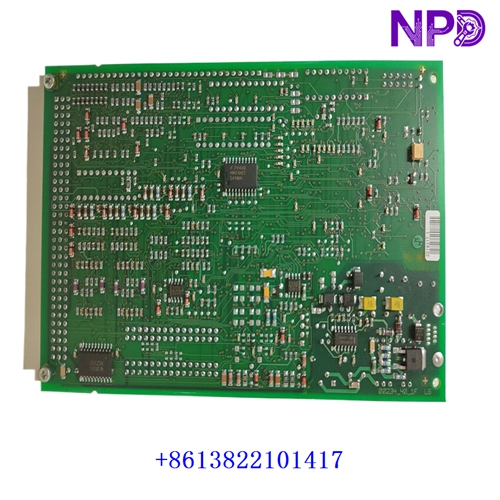

The Bosch Rexroth VTS0234-47/AP025 is an industrial electronic control module associated with electro-hydraulic control and servo-drive applications. It is listed by industrial suppliers as a digital closed-loop control module or servo control board. Such modules are used in control systems that regulate hydraulic actuators by processing command signals and feedback information.
The exact electrical characteristics and control functions of the VTS0234-47/AP025 have not been independently confirmed from an official technical datasheet. Before installation or replacement, verify the supply voltage, command signal type, output configuration, valve compatibility, and rack or connector arrangement against the original unit. Similar Rexroth VTS-series modules may have different functions and are not necessarily interchangeable. <Cite refs={[“turn203981search0″,”turn203981search4″,”turn203981search11”]}/>
VTS0234-47 AP025
Product Parameters
- Brand: Bosch Rexroth
- Model: VTS0234-47/AP025
- Series: VTS Electronic Control Module Series
- Product Name: Servo Valve Amplifier / Closed-Loop Control Module
- Product Type: Industrial electro-hydraulic control electronics
- Control Method: Closed-loop control, subject to configuration verification
- Application: Industrial hydraulic and motion-control systems
- Input Signal: To be confirmed from the applicable datasheet
- Output Configuration: To be confirmed
- Power Requirements: Not verified for this exact model; check the unit label before applying power
- Communication Interface: Not confirmed
- Mounting: Verify rack or panel mounting requirements
- Dimensions: Not confirmed
- Weight: Not confirmed
- Place of Manufacture: To be confirmed
- Country of Origin: Verify from the product label
- Product Status: Current availability and lifecycle status not confirmed
- Discontinued: Not confirmed
Recommended Models
The following are related Rexroth control and hydraulic automation products to investigate. They are not guaranteed direct replacements for the VTS0234-47/AP025.
- Rexroth VTS0234-46/AP025 — Related VTS-series amplifier designation; verify part number and electrical compatibility.
- Rexroth VTS0234-45/AP025 — Related amplifier variant; confirm the precise control function.
- Rexroth VTS0234-44/AP025 — Related VTS-series variant; verify the supported valve and input signals.
- Rexroth VTS0235 — Related VTS-series control hardware; check the complete model code.
- Rexroth VTS0236 — Related electronic control module; confirm its application.
- Rexroth VT-HNC100 — Hydraulic numerical control family for compatible systems.
- Rexroth VT-HNC100-1-23-W-08-P-0 — Hydraulic axis-control designation; verify the complete order number.
- Rexroth VT-HACD — Hydraulic axis control electronics for supported applications.
- Rexroth VT-MACAS — Industrial control electronics; confirm the required function.
- Rexroth VT-VPCD — Proportional valve control electronics; verify the exact variant.
- Rexroth VT-MVTW-1-16D — Related Rexroth control board designation; confirm system requirements.
- Rexroth VT 2000 Series — Proportional amplifier family; select only after checking valve specifications.
- Rexroth VT 3000 Series — Electronic amplifier family for compatible hydraulic applications.
- Rexroth IndraControl — Industrial control platform for machine automation.
- Rexroth IndraDrive — Industrial drive system family for motion-control applications.
For accurate sourcing, compare the full model code, nameplate, connector layout, and technical manual. A related series number alone does not establish interchangeability.
