Description
- Model: DS200DCFBG1BJB
- Brand: GE (General Electric)
- Series: Speedtronic Mark V
- Core Function: Provides power supply distribution and critical feedback signals for DC drive and turbine control systems.
- Product Type: DC Power Feedback Board
- Key Specs: 125 VDC Input support | Control pulse monitoring | Diagnostic circuitry
- Board Revision: G1BJB (Specific Group 1 version with BJB revision)
- Input Voltage: Typically monitors 125 VDC control power
- Feedback Loops: Interfaces with CTs (Current Transformers) and VTs (Voltage Transformers)
- Communication: Direct interface with the Mark V control rack via ribbon cables
- Fusing: Integrated onboard fuses for circuit protection
- Diagnostic Indicators: Onboard LEDs for visual status of power rails
- Connectors:
- PL Connectors: For control signals and feedback
- Screw Terminals: For high-power monitoring points
- Compatibility: Primarily used in GE Mark V Gas Turbine Control Systems (LM2500, LM6000, Frame 6/7/9)

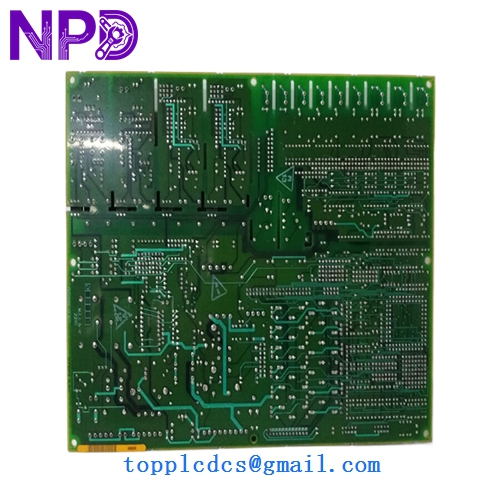

GE DS200DCFBG1BJB
GE DS200DCFBG1BJB
GE DS200DCFBG1BJB
Application Scenarios & Pain Points
The DS200DCFBG1BJB is a specialized board within the Mark V system. It acts as the “eyes” for the power distribution system. It monitors the health of the DC control power and provides essential feedback to the control processors. If this board fails, the Mark V system may lose its ability to verify that control power is present, leading to a “Controller Fault” or a fail-safe turbine trip.
Typical Application Scenarios:
- Gas Turbine Power Generation Monitoring the 125 VDC battery backup system to ensure the turbine can safely shut down or stay controlled during a utility power loss.
- Emergency Shutdown (ESD) Monitoring Ensuring that the feedback signals for critical solenoids and actuators are accurate and responsive.
- Legacy Mark V Maintenance Replacing aging boards that have developed “drift” in their analog feedback circuits due to long-term heat exposure in control cabinets.
Engineering Case Study: The “Phantom” Power Loss
Background: A peak-load power plant using a GE Frame 7EA turbine reported intermittent “DC Control Power Failure” alarms, even though the battery banks were healthy.
The Problem: The DS200DCFBG1BJB board had a failing opto-isolator in its feedback circuit. It was sending a false “Low Voltage” signal to the <R> core of the Mark V system, which nearly triggered a full emergency trip.
The Solution: We provided a replacement DS200DCFBG1BJB. During the swap, the engineer noticed that the “BJB” revision was required to match the specific firmware profile of their control rack.
Result: The “Phantom” alarm cleared immediately. The plant avoided an unplanned outage during a period of high demand, saving an estimated $150,000 in lost revenue.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| DS200DCFBG1BJB | DS200DCFBG1AAA | ⚠️ Hardware | Older revision | May not support BJB-specific logic |
| DS200DCFBG1BJB | DS215DCFB | ❌ Incompatible | Mark VI Series | Different physical size/connectors |
| DS200DCFBG1BJB | DS200DCFBG2BJB | ⚠️ Hardware | Group 2 Version | Check your specific voltage config |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to DS200DCFB | Quick Check | Action |
|---|---|---|---|---|
| Feedback Fault Alarm | Blown Board Fuse | ✅ High | Check F1/F2 fuses on the board. | Replace fuse or board. |
| LEDs Dim / Off | Logic Power Loss | ✅ High | Measure the 5V/15V rails on the board. | Check the power supply module. |
| Erratic Signal Data | Ribbon Cable Fault | ⚠️ Medium | Ensure PL connectors are tight. | Re-seat cables; clean pins. |
| Mark V “Diag” Error | Revision Mismatch | ✅ High | Check that “BJB” matches the old board. | Swap for correct revision. |
Engineer’s Pro-Tip: “When you’re swapping a DS200DCFBG1BJB, pay very close attention to the jumpers. These boards often have small Berg-style jumpers that configure the voltage scale and feedback ratios. If you don’t copy the jumper settings from the old board to the new one, your Mark V will see incorrect voltage levels and might trip the turbine. Also, these legacy boards use high-density connectors—always use a proper extraction tool or be extremely gentle to avoid bending the backplane pins!”
If you need the specific jumper configuration map for a 125V vs. 250V setup on this board, I can pull the GE Mark V instruction manual—just let me know.
