Description
The GE IC698CHS009 is a high-performance 9-slot chassis specifically designed for the PACSystems RX7i controller platform. This rack serves as the physical and electrical foundation for the RX7i system, utilizing a high-speed VME64 backplane to support rapid data exchange between the CPU, power supply, and various I/O or communication modules. Its rugged construction and advanced bus architecture make it a primary choice for large-scale industrial applications requiring high density and extreme processing power.
Technical Specifications and Datasheet
- Product Model: IC698CHS009
- Manufacturer: GE Fanuc / Emerson
- Series: PACSystems RX7i
- Number of Slots: 9 Slots
- Backplane Type: VME64 (Virtual Machine Environment 64-bit)
- Mounting Type: Panel Mount (Rack Mount)
- Slot 0 Requirement: Dedicated for RX7i Power Supply
- Dimensions: 482 mm x 180 mm x 300 mm
- Weight: 5.2 kg
- Country of Origin: USA
- Operating Temperature: 0 to 60°C (32 to 140°F)

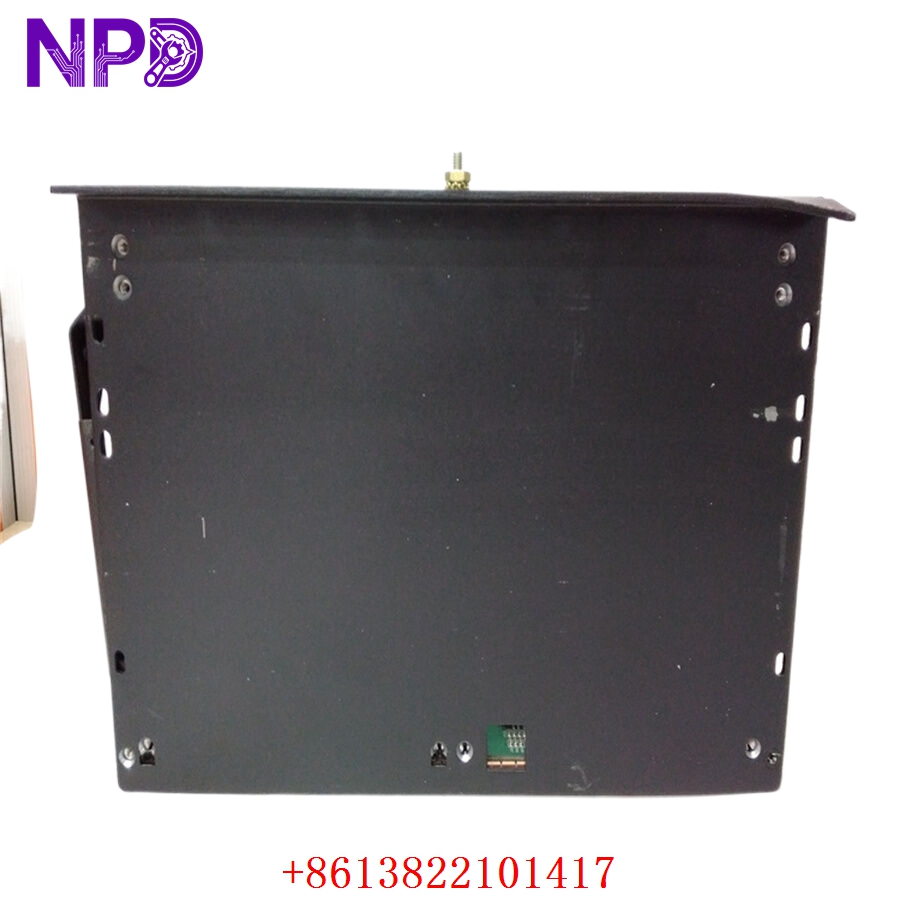

GE IC698CHS009

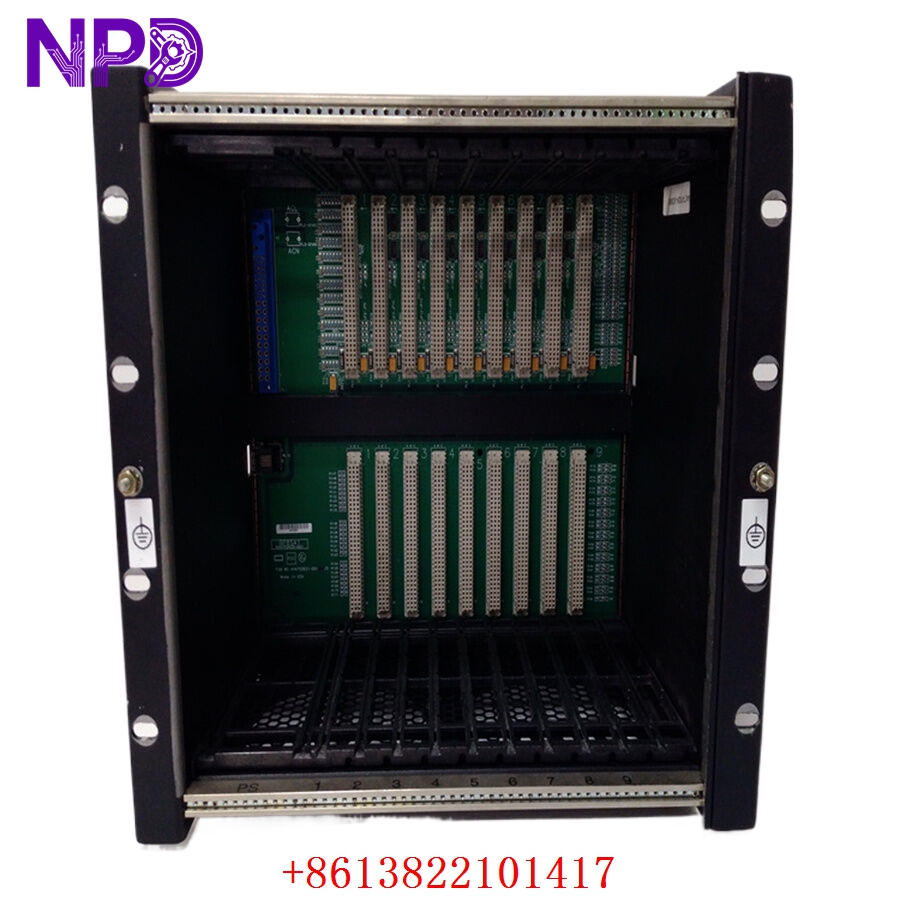

GE IC698CHS009
GE IC698CHS009
Application Areas
The IC698CHS009 is engineered for complex, mission-critical environments where data throughput is essential. Typical applications include:
- Large Power Plants: Managing complex turbine control and balance-of-plant logic.
- Heavy Manufacturing: Controlling high-speed production lines in steel mills and automotive plants.
- Infrastructure Control: Managing large-scale water treatment facilities or smart grid distribution.
- Legacy Upgrades: Providing a migration path for older VME-based systems to modern PAC technology.
Product Instructions
The IC698CHS009 must be installed in a well-ventilated enclosure to ensure proper heat dissipation. When assembling the system, the RX7i power supply must be placed in the leftmost slot (Slot 0). All other slots support a mix of RX7i CPUs, VME-compliant third-party modules, and standard I/O modules. Ensure that all modules are firmly seated into the VME64 connectors and secured with the retention screws to prevent vibration-induced connectivity issues. The rack includes a ground stud that must be connected to the system earth ground to minimize electromagnetic interference and ensure operator safety.
Frequently Asked Questions (Q&A)
Q: Can I use standard Series 90-70 modules in this rack? A: Yes, the PACSystems RX7i is designed for backward compatibility with many Series 90-70 VME-based modules, allowing for cost-effective system upgrades.
Q: Does the IC698CHS009 require a specific power supply? A: Yes, it is designed to work with IC698 series power supplies (such as the IC698PSA100 or PSA350) which occupy the dedicated Slot 0 on the backplane.
Q: Is it possible to connect multiple IC698CHS009 racks together? A: While the chassis itself is a standalone unit, the system can be expanded using Bus Transmitter and Receiver modules to link multiple racks for higher I/O counts.
