Description
The GE IS420UCSBH1A is a high-performance Universal Controller (UCSB) within the Mark VIe Distributed Control System (DCS) platform. As a core processing element, the UCSB serves as the “brain” for complex control applications, including gas and steam turbine management, heavy-duty industrial drive sequences, and plant-wide process automation. It is designed to handle high-speed, deterministic control logic, execute sophisticated mathematical algorithms, and facilitate real-time communication across the Mark VIe IONet, ensuring robust stability and safety for critical assets.
Technical Specifications and Datasheet
- Manufacturer: General Electric (GE) / Emerson
- Model Designation: IS420UCSBH1A
- Product Type: Universal Controller (UCSB)
- Dimensions: 26.5 cm x 17.8 cm x 4.2 cm (10.43 in x 7.01 in x 2.76 in)
- Weight: 0.95 kg (2.09 lbs)
- Country of Origin: USA
- Processor Architecture: High-speed, multi-core industrial microprocessor for real-time task scheduling
- Memory: ECC (Error Correction Code) protected RAM for high-reliability operations
- Communication: Dual Ethernet ports for redundant IONet/ControlNet connectivity
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Power Supply: 24 VDC redundant input capability
- Enclosure Rating: IP20, suitable for controlled rack environments

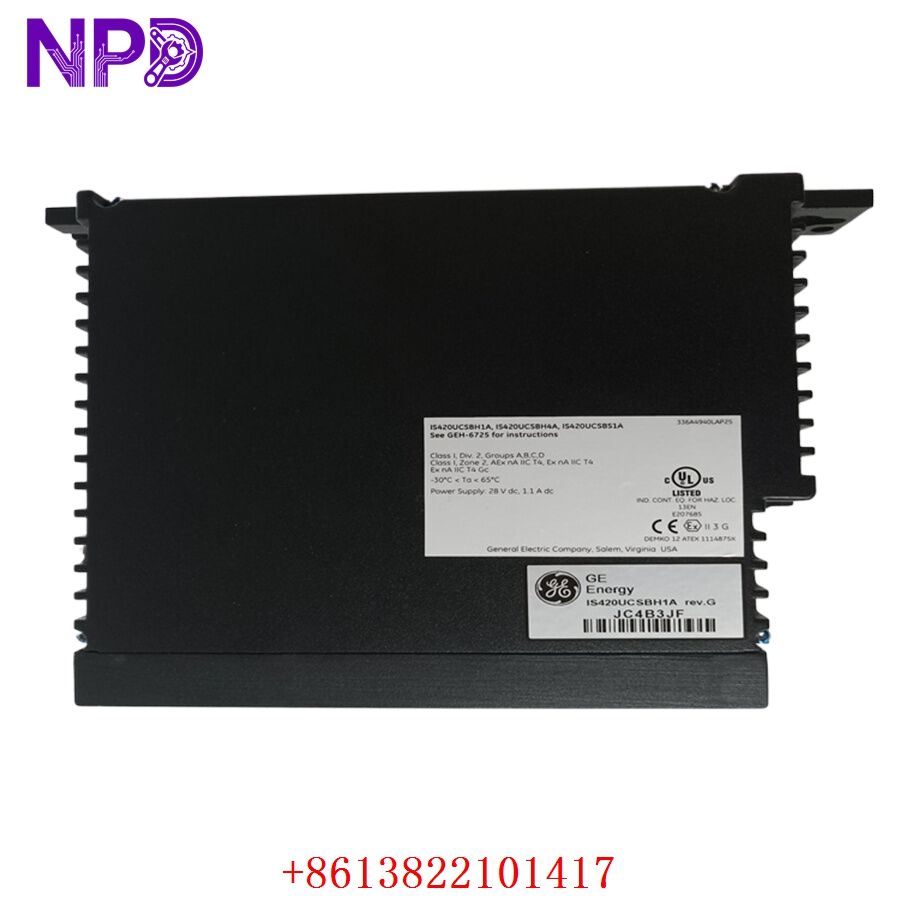

GE IS420UCSBH1A

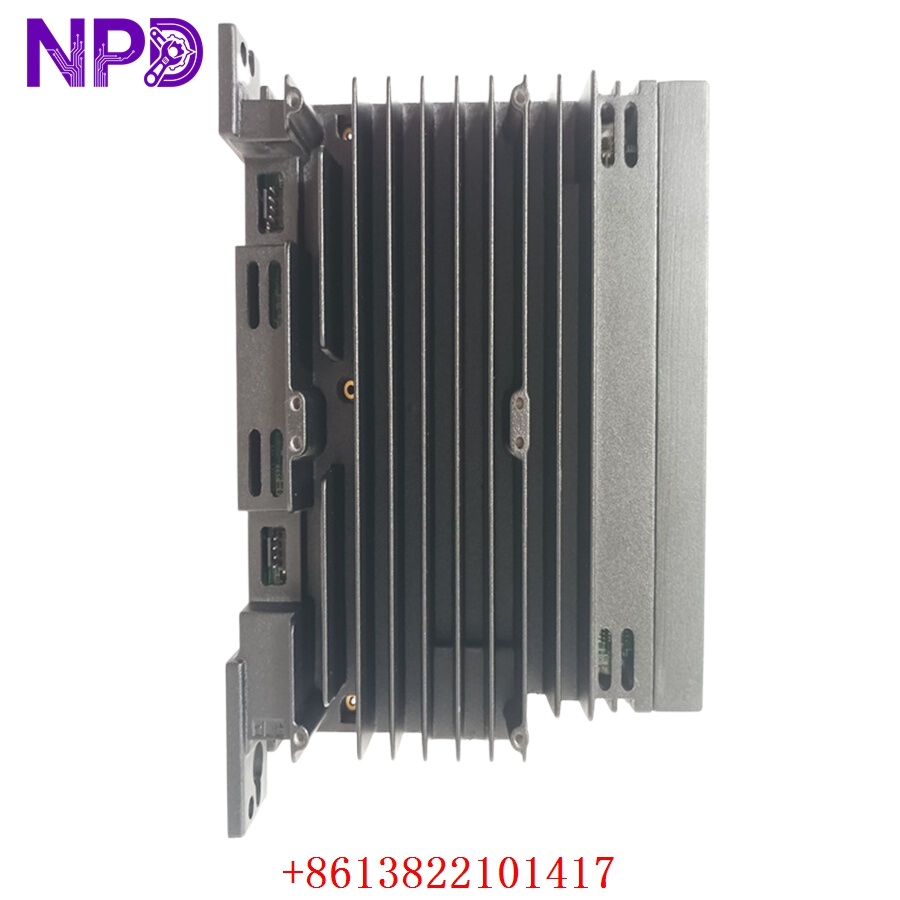

GE IS420UCSBH1A
GE IS420UCSBH1A
Application Fields
The IS420UCSBH1A is critical for mission-essential industrial operations:
- Turbine Control: Managing governor loops, fuel control, and startup/shutdown sequencing for gas and steam turbine power systems.
- Process Automation: Coordinating complex PID control loops in chemical processing and petrochemical refining.
- Plant-Wide Integration: Functioning as the supervisory node for distributed I/O systems and remote monitoring arrays.
- Energy Infrastructure: Providing high-availability logic for smart grid synchronization and protective relaying in utility substations.
Product User Instructions
- Chassis Installation: Mount the UCSB controller within the designated Mark VIe processor rack. Ensure the controller is fully seated in the backplane to prevent intermittent communication failures. Secure the controller using the integrated chassis locking mechanisms.
- Networking Setup: The UCSB is designed for redundant IONet communication. Connect both primary and secondary Ethernet ports to your managed industrial switch environment to ensure seamless failover in the event of a network cable or port fault.
- Configuration and Loading: Utilize the GE ControlST™ software suite to configure the controller’s hardware settings and download the application-specific control code (CME). Ensure the controller is in “Program” mode before attempting to load new logic files.
- Diagnostics: The faceplate provides vital status LEDs (e.g., Run, Fault, IONet Link). Use these indicators in conjunction with the ControlST diagnostic interface to monitor real-time health statistics, CPU usage, and network traffic efficiency.
Frequently Asked Questions (Q&A)
Q1: What is the difference between a UCSB and other Mark VIe controllers? A1: The UCSB (Universal Controller) is specifically optimized for high-speed, high-density I/O handling and complex logic execution, often found in larger, more resource-intensive control applications compared to smaller remote I/O processors.
Q2: Can I use an older UCSA controller as a direct replacement for a UCSB? A2: While they share the Mark VIe architecture, they are not always directly interchangeable due to hardware capabilities, firmware requirements, and specific port assignments. Always verify the GE “Hardware Compatibility Matrix” before upgrading or replacing components.
Q3: How do I handle a “Controller Not Responding” fault? A3: First, verify power to the rack. Second, check the Ethernet link LEDs on the faceplate. If physical integrity is confirmed, connect a laptop directly to the controller’s serial or Ethernet diagnostic port to view the internal log file via ControlST to pinpoint the software hang or hardware failure.
