Description

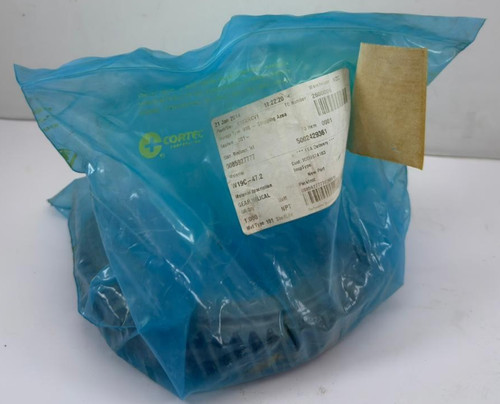

In the context of gas turbine mechanics, helical gears like the W19C-47.2 are critical for transferring torque between shafts that may be parallel or at slight angles. Unlike standard spur gears, helical gears have teeth cut at an angle to the face of the gear, which allows for smoother, quieter operation and higher load-carrying capacity—essential requirements for the high-RPM environments of turbine engines.
Technical Significance
- Application: These gears are frequently utilized in the Accessory Gearbox (AGB) or main reduction drive assemblies of Rolls-Royce aero and industrial gas turbines. They ensure that power extracted from the turbine shaft is correctly stepped down or redirected to power oil pumps, fuel pumps, generators, or starters.
- Mechanical Properties: Helical gears provide a “gradual engagement” of teeth, meaning the load is transferred progressively rather than all at once (as in spur gears). This reduces vibration and stress on the engine’s mechanical housing.
- Manufacturing Precision: Given the designation format (W19C-47.2), this part is manufactured to extremely tight aerospace tolerances, requiring specific metallurgy—typically high-strength, carburized, or nitrided alloy steels capable of maintaining integrity under the extreme thermal and rotational stresses of a turbine operating environment.
Identification & Maintenance
- Part Numbering: The designation “W19C-47.2” suggests it is a specific revision or production batch component. When sourcing or replacing such gears, it is vital to verify this exact string, as even minor changes in the tooth profile, helix angle, or heat treatment can affect the “mesh” (alignment) with mating gears.
- Inspection: If you are inspecting this gear, look for signs of pitting, spalling, or uneven wear patterns on the gear teeth flanks. Improper lubrication or misalignment in the gearbox housing is often the primary cause of premature failure in these components.
