Description
The WOODWARD 5466-258 is a high-performance industrial controller module designed for integration within Woodward’s premier MicroNet Digital Control Systems. Engineered primarily for the precise governance of large gas and steam turbines, as well as complex industrial reciprocating engines, this module provides the real-time processing speed and computational reliability necessary for critical power generation and process industries. It excels in managing complex control loops, system diagnostics, and high-speed communications, ensuring maximum uptime and system efficiency in demanding industrial environments.
Product Datasheet & Specifications
- Manufacturer: Woodward
- Part Number: 5466-258
- Product Type: Main CPU / Digital Control System Module
- System Compatibility: MicroNet Simplex / MicroNet TMR (Trisector Redundant) Systems
- Operating Voltage: 24 V DC (Standard System Bus Power)
- Approximate Dimensions: 26.5 cm x 18.2 cm x 3.5 cm
- Approximate Weight: 850 grams (0.85 kg)
- Country of Origin: United States (USA)
- Certification: CE, UL, CSA, ATEX Zone 2 Compliant
- Communication Interfaces: Ethernet, CAN, RS-232 / RS-485 Serial Ports

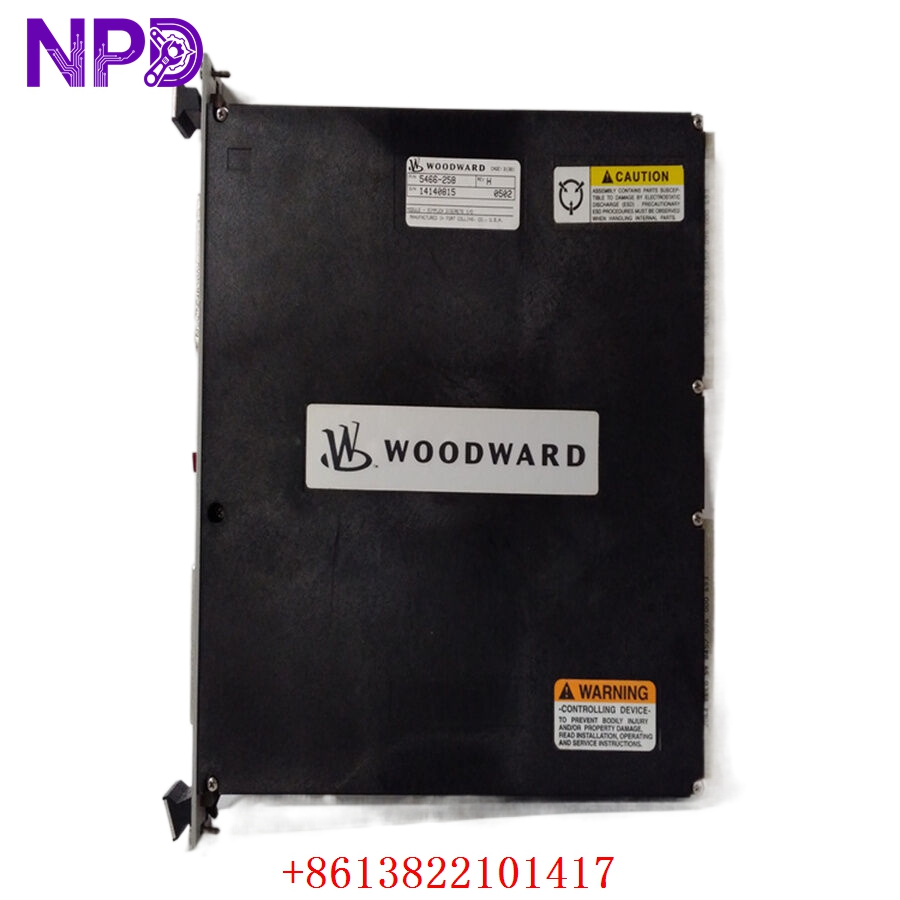

WOODWARD 5466-258

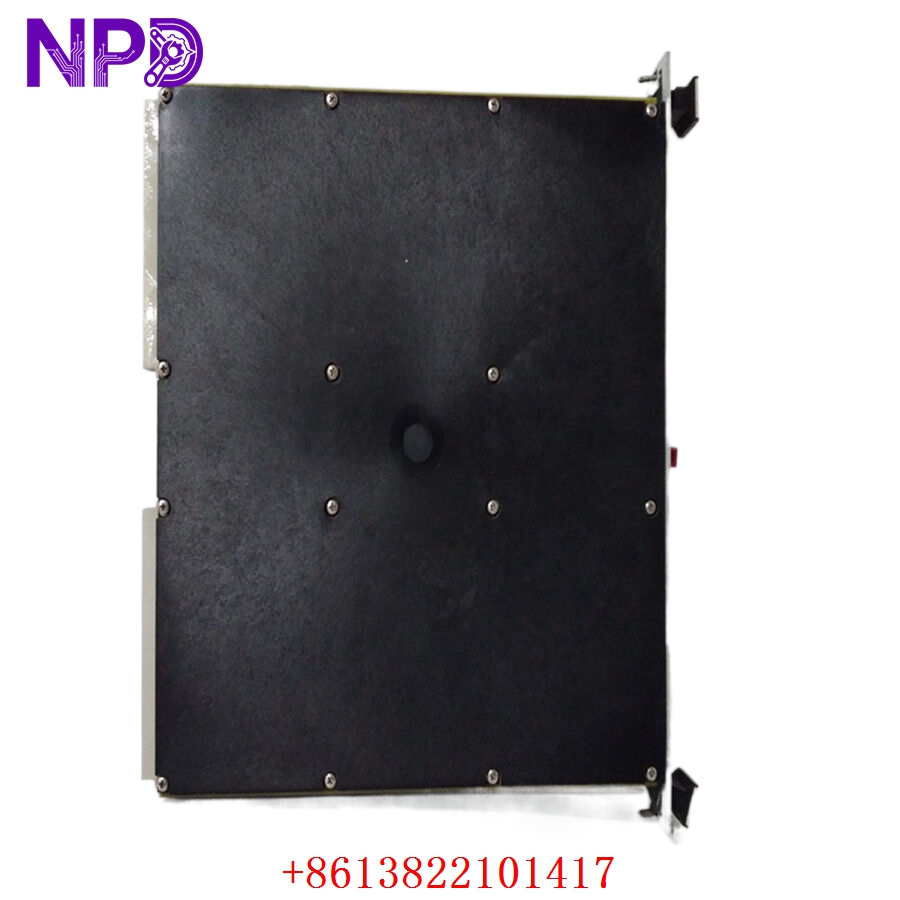

WOODWARD 5466-258
WOODWARD 5466-258
Key Application Fields
- Power Generation Plants: Main speed and load control for utility-scale steam and gas turbine generator sets.
- Oil & Gas Compression: Used in large-scale centrifugal and reciprocating compressor control architectures.
- Marine Propulsion Systems: Controls heavy-duty marine engines and power distribution grids aboard vessels.
- Petrochemical Refining: Manages complex chemical processing loops that require deterministic execution times.
- Distributed Control Systems (DCS): Functions as a critical processing node in plant-wide industrial automation networks.
Product Instructions & Guidelines
- Pre-Installation Check: Inspect the module physical casing for any signs of shipping damage. Ensure the model number 5466-258 matches the hardware configuration of your target MicroNet chassis slot.
- Chassis Insertion: Always discharge static electricity by wearing an anti-static wrist strap before handling the card. Carefully slide the module into its designated rack guides and press firmly until the faceplate latch mechanisms lock securely.
- Wiring and Connectivity: Connect network and communication lines to the front-panel ports using shielded twisted-pair cabling to minimize electromagnetic interference. Ensure all retaining screws on communication plugs are tightened.
- Firmware and Configuration: Use Woodward Gap™ or Toolkit software platforms to upload, configure, and monitor application software parameters specific to your turbine or engine operation.
- Environmental Maintenance: Ensure the MicroNet cabinet cooling fans are fully functional. Periodically inspect the backplane connections for dust accumulation and clean using low-pressure, dry, compressed air if necessary.
Q&A – Frequently Asked Questions
- Q: Can the Woodward 5466-258 module be inserted while the MicroNet chassis is powered on?
- A: For standard Simplex systems, it is recommended to power down the rack. However, in specific MicroNet Redundant (TMR) architectures configuration settings may allow for online replacement—always consult your specific system safety manual before attempting live service.
- Q: What is the main function of the onboard communication ports?
- A: The integrated Ethernet and serial ports allow the module to exchange high-speed control data with Human Machine Interfaces (HMIs), engineering workstations, and external PLCs.
- Q: How does this module handle system errors or communication drops?
- A: The module features built-in hardware watchdogs and advanced diagnostic routines that immediately flag errors via front-panel LED indicators and broadcast system alerts to the operator interface for swift troubleshooting.
- Q: What are the storage requirements for a spare 5466-258 module?
- A: Store the module in its original anti-static packaging within a clean, dry room maintained between -40°C and 85°C, with non-condensing relative humidity.
