Description
The Yokogawa AIP830 is a specialized industrial Operation Keyboard designed for use with Yokogawa’s Distributed Control Systems (DCS), specifically the CENTUM VP and CENTUM CS 3000 series. It serves as the primary tactile interface for process operators in control rooms, providing dedicated keys for rapid response and system navigation that standard office keyboards cannot offer.
Product Parameters (Datasheet)
- Model Number: AIP830
- Interface Type: USB (Compatible with standard Human Interface Station – HIS)
- Key Layout: Dedicated keys for Instrument Faceplates, Trend Screens, and Graphic Displays
- Function Keys: 64 user-definable function keys for custom logic/macros
- Sounder: Integrated internal speaker for alarm notification/audible feedback
- Dust/Water Resistance: Front panel designed for industrial environments (spill-resistant)
- Power Supply: Supplied via USB port (5V DC)
- Dimensions: Standard console-mount or desktop-mount form factor
- Compatibility: Windows-based HIS stations running CENTUM software

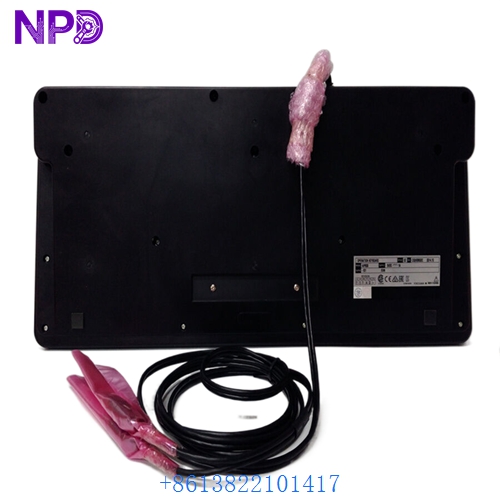

YOKOGAWA AIP830
YOKOGAWA AIP830
Country of Origin
This control interface was engineered and manufactured in Japan by Yokogawa Electric Corporation.
Application Fields
The AIP830 is the standard interface in high-stakes process industries, including:
- Petrochemical Refineries: Managing complex distillation and cracking units.
- Power Generation: Overseeing boiler and turbine control parameters.
- Pharmaceutical Manufacturing: Controlling batch processes with high precision.
- LNG Terminals: Monitoring safety-critical gas processing and storage.
- Iron & Steel: Managing furnace temperatures and automated rolling lines.
Product Usage Instructions
- Connection: Plug the AIP830 into an available USB port on the HIS (Human Interface Station) PC.
- Driver Setup: The keyboard is typically recognized automatically by the CENTUM software environment; however, the “Keyboard Configurator” utility must be used to map specific function keys.
- Mounting: The unit can be placed directly on a desk or flush-mounted into a custom control room console for a seamless aesthetic.
- Alarm Management: Use the dedicated “Silence” and “Acknowledge” keys to manage system-wide alarms efficiently without using a mouse.
- Navigation: Utilize the “Window Call” keys to instantly switch between critical process graphics, such as the “Overall Process Flow” and “Detailed Loop” views.
Product Technical Description
Technically, the AIP830 is much more than a peripheral; it is a specialized control tool. Unlike a standard keyboard, it features one-touch operation for critical DCS functions. For example, operators can call up specific instrument faceplates or silence global alarms with a single physical button press, which is significantly faster than navigating with a cursor during a process upset. The “dust-proof” construction ensures that even in environments where fine particles or occasional spills occur, the mechanical integrity of the switches remains intact. It often works in tandem with the Yokogawa “Dust-proof Mouse” to provide a complete industrial-grade operator station.
Q&A (Common Questions)
Q: Can I use the AIP830 with a regular Windows PC? A: While it connects via USB and may be recognized as a generic HID device, its specialized function keys only operate correctly when the Yokogawa CENTUM software and drivers are active.
Q: What is the difference between the AIP830 and the older AIP827? A: The AIP830 is the modern USB-based successor, whereas older models often used proprietary or PS/2 interfaces. The AIP830 also features improved tactile feedback and updated key labeling for CENTUM VP.
Q: Does it have a built-in pointing device (mouse)? A: No, the AIP830 is a dedicated keyboard. It is usually paired with a separate industrial mouse or trackball.
Q: Are the function keys illuminated? A: Yes, many versions feature backlit or LED-indicated keys to show the status of specific functions or active alarms.
Similar Model Recommendations
- Yokogawa AIP831: A variant often featuring different key groupings or branding.
- Yokogawa A1511UR: Industrial USB mouse frequently paired with the AIP830.
- Yokogawa PH202: Specialized process analyzers often monitored via this keyboard.
- Yokogawa VI702: Vnet/IP Interface card used in the same HIS station.
- Yokogawa AVR10D: Duplexed field control station components.
For technical documentation or to inquire about stock for the Yokogawa AIP830 and other CENTUM series DCS spares, please contact our support team.
