Product Parameters
- Model Number: 2093-AC05-MP1
- Product Series: Kinetix 2000
- Input Voltage: 230V AC (Three-Phase)
- Power Output: 3.0 kW (Converter Power)
- Continuous Output Current: 1.0 A (Module Output)
- Peak Output Current: 3.0 A
- Efficiency: 98% at rated load
- Communication Interface: SERCOS Interface support
Product Description

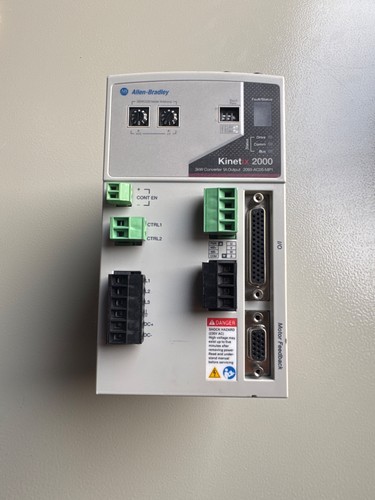

The Allen-Bradley 2093-AC05-MP1 is an integrated converter module designed for the Kinetix 2000 multi-axis servo drive system. It serves as the primary power entry point, converting three-phase AC input into a common DC bus to power multiple follower modules. This compact unit combines the functions of a power supply and a servo drive into a single, space-saving footprint. It is engineered for high-performance motion control, featuring advanced power management and rapid response times to dynamic load changes, ensuring smooth and precise motor operation across the entire drive string.
Application Fields
This converter module is predominantly used in high-speed packaging machinery, semiconductor assembly lines, and multi-axis robotics. It is ideal for modular machine designs where space is at a premium and synchronized motion between multiple axes is critical. Its integration within the Kinetix 2000 ecosystem makes it a standard choice for pharmaceutical labeling, food processing, and specialized material handling systems.
Product Specifications
- Weight: 1.32 kg
- Dimensions: 208 mm x 42 mm x 185 mm
- Origin: USA / Mexico
Operational Precautions
- Always verify that the DC bus voltage has completely dissipated (check the status LEDs) before performing any maintenance or wiring changes.
- Ensure the module is properly seated on the 2093-PRS power rail; failure to align the pins correctly can cause permanent damage to the backplane.
- Maintain strict environmental control, as excessive dust or moisture can lead to internal arcing within the high-density circuitry.
- Use only recommended Allen-Bradley motor cables to prevent electromagnetic interference (EMI) from disrupting the SERCOS communication signals.
Recommended Similar Product Models
| Model Number | Series | Primary Function | Power / Current |
| 2093-AC05-MP2 | Kinetix 2000 | Integrated Converter | 3.0 kW / 2.0 A |
| 2093-AC05-MP5 | Kinetix 2000 | Integrated Converter | 3.0 kW / 5.0 A |
| 2093-AM01 | Kinetix 2000 | Axis Module | 1.0 A Output |
| 2093-AM02 | Kinetix 2000 | Axis Module | 2.0 A Output |
| 2093-PRS1 | Kinetix 2000 | Power Rail | 1-Axis Support |
