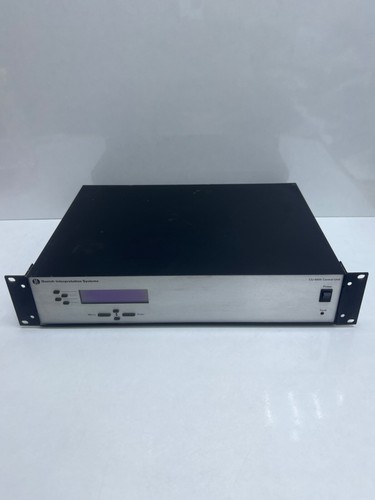

DIS Danish Interpretation System CU6005 Central Unit

Product Parameters

• Model Number: CU 6005
• Series: DCS 6000 Digital Conference System
• Power Supply: External PSU (48V DC)
• Conference Units: Up to 50 units (Expandable with additional power/hardware)
• Interpretation Channels: Supports up to 16 channels
• Audio Inputs: 2 x Analog XLR (Balanced)
• Audio Outputs: 4 x Analog XLR (Balanced)
• Network Protocol: DCS-LAN (Proprietary high-speed digital bus)
• Control Port: RS-232 / Ethernet for external control systems

Product Description The DIS (Danish Interpretation System) CU 6005 is a compact, high-performance central control unit designed for the DCS 6000 Digital Conference System. It serves as the primary processing hub for small to medium-sized international conferences, providing seamless management of delegate microphones and simultaneous interpretation. The CU 6005 utilizes a proprietary digital bus technology (DCS-LAN) to ensure high-fidelity audio transmission and control data over standard Cat5e (or higher) cabling. The unit features an intuitive front-panel display for quick configuration and integrates easily with third-party control systems like AMX or Crestron for automated meeting management.

Application Areas This central unit is widely used in government assembly halls, corporate boardrooms, and international NGO headquarters. It is specifically designed for environments where simultaneous language interpretation is required, allowing multiple interpreters to work in tandem while delegates select their preferred language via their individual conference units.

Product Specifications

• Weight: 2.8 kg
• Dimensions: 44 mm x 426 mm x 186 mm (1U Rack Space)
• Country of Origin: Denmark (Shure/DIS)
• Chassis Material: Steel/Aluminum

Operational Precautions

• Cabling Standards: Use only shielded Cat5e/Cat6 FTP or STP cables for the DCS-LAN connection; unshielded (UTP) cables can lead to electromagnetic interference and system instability.
• Redundancy: When configuring larger loops, ensure the DCS-LAN cable lengths between units do not exceed 200 meters to maintain signal integrity without the use of repeaters.
• Powering Up: Always connect the conference units to the CU 6005 before applying power to the central unit to ensure a proper handshake and address assignment on the bus.
• Firmware: Ensure the CU 6005 firmware is synchronized with the attached delegate units (e.g., DC 6990 or IS 6132) to prevent feature incompatibility.
