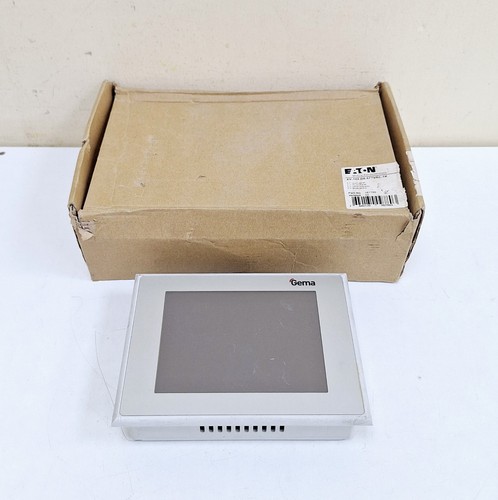

The Eaton XV-102-D6-57TVRC-1K (P.N. 167789) is a high-performance 5.7-inch HMI touch panel that seamlessly combines vivid VGA visualization with powerful PLC logic capabilities, providing an all-in-one industrial automation solution in a compact, robust German-engineered housing.
Product Parameters (Datasheet)
- Model: XV-102-D6-57TVRC-1K
- Part Number: 167789
- Display: 5.7″ TFT Color Display (64k colors)
- Resolution: 640 x 480 Pixels (VGA)
- Touch Screen: Resistive touch, glass-on-film
- Processor: RISC 32-bit, 400 MHz
- Onboard Memory: 64MB RAM, 128MB Flash
- Interfaces: Ethernet (10/100 Mbps), RS485, CANopen/easyNet, USB Device
- Expansion: 1x SD Card Slot
- Operating System: Windows CE 5.0 (Core License)
- Input Voltage: 24 VDC (Nominal)
- Protection Class: IP65 (Front side), IP20 (Rear side)
Country of Origin
This unit is designed and manufactured in Germany, adhering to the highest European industrial quality standards for longevity and precision.
Application Fields
The XV-102 series is widely applied in small to medium-scale machine automation, specifically in the food and beverage industry for packaging control, building management systems for HVAC monitoring, wastewater treatment plants for pump logic, and textile manufacturing for precision process visualization.
Product Usage Instructions
Installation requires a standard panel cutout (157x115mm) with the included mounting clamps. Connect a stable 24V DC power supply to the terminal block. For software configuration, use Eaton’s GALILEO or CODESYS environment to design the interface and logic. Always ensure the device is grounded properly via the earth terminal to prevent EMI issues.
Product Technical Description
As part of the XV100 Micro Panel family, this device functions as a “Human Machine Interface with PLC.” Technically, it utilizes a high-speed RISC architecture to process graphical data and control loops simultaneously. The integrated CANopen master interface allows it to manage complex networks of sensors and actuators, making it a decentralized control hub for modern smart factories.
Q&A (Common Questions)
Q: Does this model support external data logging? A: Yes, you can use the built-in SD card slot for extensive data logging, recipe storage, and trend backups.
Q: Can I program this unit while it is mounted? A: Certainly, programming and firmware updates can be performed via the Ethernet port or the USB device interface.
Q: Is the touch screen sensitive to industrial gloves? A: Yes, the resistive touch technology reacts to pressure, allowing operators to use the panel while wearing standard industrial gloves.
Q: What is the typical lifespan of the backlight? A: The LED backlight is designed for a service life of approximately 40,000 hours under standard operating temperatures.
Similar Model Recommendations
- Eaton XV-102-D8-57TVRC-1K (Extended communication features)
- Eaton XV-102-BE-35TQRC-1K (Compact 3.5″ variant)
- Eaton XV-152-D6-57TVRC-1K (Metal housing version)
- Eaton XV-102-A0-35TQRB-1K (Mono-display cost-effective version)
- Eaton XV-303-70-CE0-A00-1B (New generation 7″ capacitive touch)
Find more details on the Eaton XV-102-D6-57TVRC-1K and explore our full inventory of industrial automation components.
