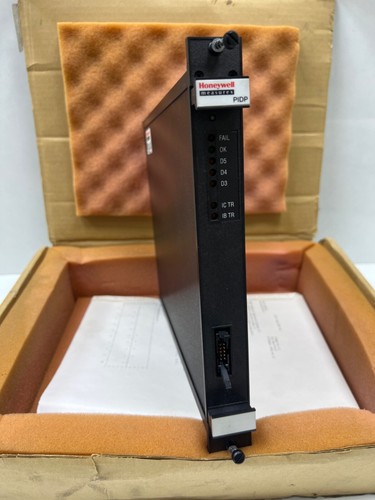

HONEYWELL MEASUREX PIDP PC BOARD 09437702

Product Parameters

• Model Number: 09437702
• Part Type: PIDP (Peripheral Interface & Display Processor) PC Board
• Manufacturer: Honeywell / Measurex
• Compatibility: Measurex 2002 / 2002 ET Series Systems
• Interface: High-speed Parallel/Serial System Bus
• Voltage Requirement: +5V DC, +/-12V DC (Standard Logic Supply)
• Processor Architecture: Dedicated Interface Processing Logic

Product Description The Honeywell Measurex 09437702 is a specialized Peripheral Interface and Display Processor (PIDP) board engineered for legacy Measurex control systems. It acts as a vital communication bridge between the central processing unit and the operator interface hardware. This board is designed to handle complex data throughput, managing the real-time display updates and peripheral commands necessary for precision process control. Its rugged construction ensures long-term stability in the demanding environments typical of paper mills, plastic film production, and sheet manufacturing lines.

Application Areas This PC board is primarily used in the pulp and paper industry, as well as in flat-sheet chemical processing. It is integrated into Honeywell Measurex quality control systems (QCS) to facilitate the monitoring and adjustment of production variables such as basis weight, moisture content, and caliper.

Product Specifications

• Weight: 1.15 kg
• Dimensions: 340 mm x 210 mm x 25 mm
• Country of Origin: USA
• Surface Finish: Gold-plated edge connectors for enhanced conductivity

Operational Precautions

• This board contains sensitive CMOS components; always use a grounded ESD wrist strap during handling and installation.
• Ensure the card cage guides are properly aligned before seating the board to avoid bending the backplane pins.
• Do not “hot-swap” the board; ensure the system power is completely discharged before removal.
• Periodically inspect the edge connectors for oxidation and clean only with approved non-residue electronic cleaners.
