Technical Parameters
- Part Number: M583100002 (SM_DI32)
- Manufacturer: Schneider Electric (Telvent)
- Input Channels: 32-Channel Digital Input
- Input Voltage: 24 VDC / 48 VDC (Configurable per model variant)
- System Architecture: OASyS DNA / RTU series
- Isolation: Opto-isolated channels for high noise immunity
- Interface: Plug-in module for high-density terminal bases
Product Description

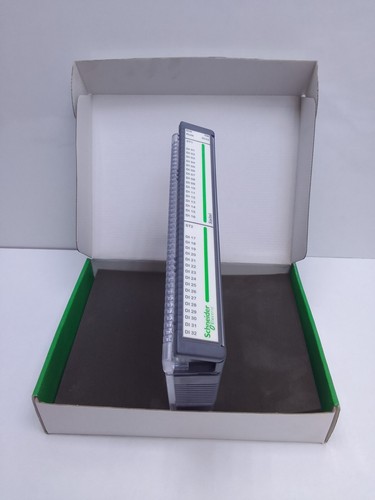

The Schneider Telvent SM_DI32 (M583100002) is a high-density digital input module specifically designed for the Telvent OASyS DNA SCADA and RTU ecosystems. It facilitates the monitoring of up to 32 discrete signals from field devices, such as switch statuses, alarms, and pulse counts. Engineered for the demanding requirements of infrastructure and utility automation, this module provides reliable signal conditioning and high-speed data acquisition, ensuring that real-time field data is accurately reported to the central control system.
Application Areas
- Oil & Gas Pipelines: Monitoring valve positions and leak detection sensor states over long distances.
- Water & Wastewater: Tracking pump status, level switches, and flow alarm triggers.
- Smart Grid Automation: Integration of breaker status and substation alarm monitoring.
- Smart Cities: Real-time monitoring of traffic control systems and environmental sensors.
Product Specifications
- Weight: 0.48 kg
- Dimensions: 14.5 cm x 4.2 cm x 12.0 cm
- Country of Origin: Spain / Canada
- Mounting: RTU Baseplate / DIN Rail Module Slot
Operating Precautions
- Input Polarity: Ensure that the common return line matches the field wiring configuration (Sinking/Sourcing) to prevent signal inversion.
- Field Wiring: Use shielded twisted-pair cables for long-distance runs to minimize inductive noise interference on high-density input banks.
- Module Seating: Confirm that the module is fully engaged and the locking mechanism is secured to prevent communication timeouts on the internal bus.
- Voltage Rating: Verify the field voltage levels do not exceed the module’s rated threshold, as overvoltage can damage the internal opto-couplers.
Recommended Similar Products
| Model Number | Product Description | System Series |
|---|---|---|
| SM_DO16 | 16-Channel Digital Output Module | OASyS DNA |
| SM_AI16 | 16-Channel Analog Input Module | OASyS DNA |
| M583200001 | Power Supply Module | Telvent RTU |
| SM_COM01 | Communication Interface Module | OASyS DNA |
| SM_DI16 | 16-Channel Digital Input Module | Telvent RTU |
