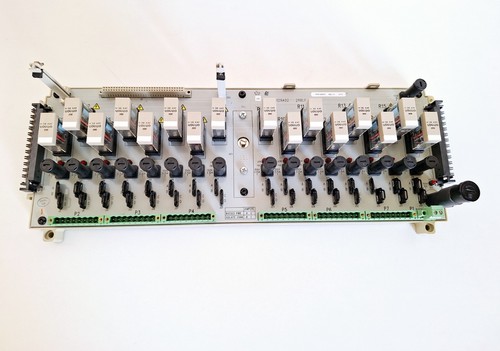

The Westinghouse 5X00431G01 (including revisions and assembly variants 1P00129A02/G01) is a high-reliability relay output module designed for the Ovation Distributed Control System (DCS), providing essential digital output switching for industrial process control.
Product Parameters (Datasheet)
- Model Number: 5X00431G01
- Assembly Numbers: 1P00129A02 / 1P00129G01
- Module Type: Digital Relay Output Module
- System Compatibility: Westinghouse / Emerson Ovation DCS
- Revision Level: Rev 03 / Rev 16 (specific to PCB and firmware iteration)
- Channels: Multiple independent relay contact outputs
- Contact Rating: Typically 2A at 120VAC or 30VDC (standard industrial relay specs)
- Isolation: Galvanic isolation between control logic and field circuits
- Form Factor: Standard Ovation I/O card for rack mounting
- Power Consumption: Low-power CMOS logic for internal operations
Country of Origin
This module is a legacy component originally manufactured by Westinghouse Process Control (now a part of Emerson Automation Solutions) in the United States.
Application Fields
The 5X00431G01 relay module is a critical component in large-scale utility and industrial control, specifically:
- Power Generation: Operating solenoid valves and motor starters in fossil and nuclear plants.
- Water Treatment: Controlling high-capacity pumps and chemical dosing equipment.
- Petrochemical: Managing safety interlocks and remote status signaling.
- Pulp and Paper: Sequencing complex conveyor systems and heavy machinery.
Product Usage Instructions
- Installation: Insert the module into the designated slot of the Ovation I/O branch. Ensure the locking tabs are engaged to maintain a solid backplane connection.
- Wiring: Use the standard Ovation terminal blocks. Ensure that field wiring for the relay contacts does not exceed the rated voltage and current specifications to prevent contact welding.
- Configuration: Define the point in the Ovation Developer Studio (or applicable software tools) as a digital output, assigning the hardware address corresponding to the slot.
- Hot-Swapping: While Ovation supports hot-swapping, always verify system redundancy and safety interlocks before removing a live relay module to avoid unintended process trips.
- Testing: Use the module’s onboard LED indicators to verify channel status during commissioning and troubleshooting.
Product Technical Description
The 5X00431G01 serves as the physical interface between the Ovation controller’s digital logic and high-power field devices. Technically, it converts low-level electronic signals into mechanical contact closures. The Rev 03/16 updates typically involve enhancements in trace durability or component longevity. The “1P” series numbers represent the specific sub-assembly and PCB artwork used during the manufacturing of the overall 5X module, ensuring strict adherence to the original Westinghouse engineering specifications for timing and isolation.
Q&A (Common Questions)
Q: Is the 5X00431G01 interchangeable with the G02 or G03 versions? A: Usually, yes, but “G” suffixes often denote different contact materials or voltage ranges. Always check the specific voltage rating on your original module before swapping.
Q: What is the difference between 1P00129A02 and 1P00129G01? A: These refer to different assembly levels of the same board; “A” usually signifies an assembly while “G” signifies a group or kit. Functionally, they serve the same role within the 5X00431G01 module.
Q: Can this module handle inductive loads directly? A: Yes, but for high-inductance loads (like large solenoids), it is highly recommended to use external surge suppression (RC snubbers or flyback diodes) to extend the life of the internal relays.
Q: How do I know if a specific relay channel has failed? A: If the software indicates the output is “ON” and the module LED is lit, but the field device does not activate, the mechanical relay contact on the board may be at its end-of-life.
Similar Model Recommendations
- Westinghouse 5X00481G01 (Digital Input Module)
- Westinghouse 1C31122G01 (Analog Output Module)
- Westinghouse 5X00226G01 (Ovation Controller Module)
- Westinghouse 1C31116G01 (High-Speed Logic Module)
- Westinghouse 1C31125G01 (Power Supply Module)
For professional technical assistance or to purchase the Westinghouse 5X00431G01, please contact our automation parts specialist team.
