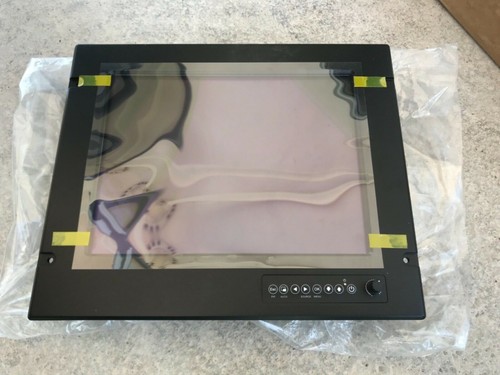

Winmate R15L600-MRM2 Marine Bridge System Display

Product Parameters

• Model Number: R15L600-MRM2
• Manufacturer: Winmate
• Display Size: 15-inch (4:3 aspect ratio)
• Resolution: 1024 x 768 (XGA)
• Brightness: 300 cd/m2 (Standard)
• Contrast Ratio: 2000:1
• Input Signals: 1x VGA, 1x DVI-D, 1x Composite Video (BNC), 1x S-Video
• Power Input: 24 Vdc (isolated) with Terminal Block
• Mounting: RAM Mount, VESA Mount, or Panel Mount
•

Product Description The R15L600-MRM2 is a 15-inch rugged display specifically engineered for marine bridge systems. It is part of Winmate’s “M-Series” Marine Line, which is built to withstand the extreme conditions of maritime environments, including salt spray, high humidity, and intense vibration. The display features a dimming knob that allows for full range brightness adjustment (0% to 100%), which is critical for maintaining visibility during both bright daylight and low-light night navigation. Its aluminum housing provides efficient heat dissipation and a sleek, professional appearance suitable for modern vessel cockpits.

Product Applications This display is primarily used in integrated bridge systems (IBS) for commercial shipping, luxury yachts, and naval vessels. It serves as the primary output for Electronic Chart Display and Information Systems (ECDIS), radar monitoring, sonar imaging, and engine room monitoring systems. Its multiple video inputs make it a versatile choice for displaying legacy analog video feeds alongside modern digital navigation data on a single, consolidated bridge console.

Product Specifications

• Weight: 4.2 kg
• Dimensions: 35.6 cm x 30.9 cm x 5.8 cm
• Country of Origin: Taiwan
• IP Rating: IP66 (Front side) / IP54 (Rear)
• Certifications: DNV GL (Maritime), IEC 60945, IACS E10

Operational Precautions

• Dimming Control: Use the front-panel dimming knob rather than software settings for night navigation to ensure the backlight is reduced to a safe level that does not impair the operator’s night vision.
• Connector Sealing: Ensure all unused rear ports are capped with the provided rubber seals to prevent salt air ingress and galvanic corrosion of the internal pins.
• Mounting Tension: When using the VESA mount in high-vibration environments (such as near engine rooms), use thread-locking fluid on all screws to prevent the display from loosening over time.
• Cleaning: Clean the glass surface only with a soft, lint-free cloth and distilled water or specialized screen cleaner; abrasive chemicals can damage the anti-reflective (AR) coating.
