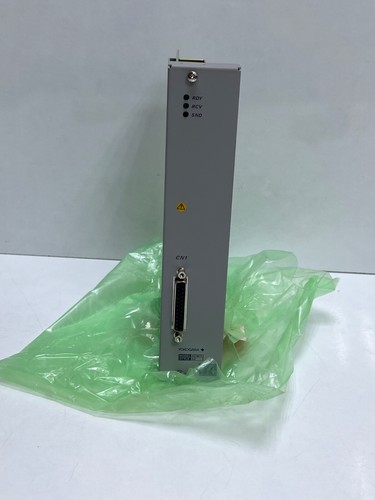

YOKOGAWA ACM11-S2 NSNP PLC MODULE

Product Parameters

• Model Number: ACM11-S2
• Type: Communication Module (Analog/Digital Combination)
• System Compatibility: CENTUM CS / CENTUM VP Systems
• Isolation: Galvanic isolation between field and system bus
• Power Consumption: 250 mA at 5 V DC
• Configuration: Dual-redundant support (with compatible baseplate)
• Signal Support: Integrated communication for field control units
• Connector Type: Specialized system interface pins

Product Description The Yokogawa ACM11-S2 is a high-reliability communication module designed for use within the CENTUM series of Distributed Control Systems (DCS). This module serves as a critical bridge for data acquisition and signal processing, facilitating the seamless flow of information between field-level devices and the central control processor. The “S2” version represents a specific hardware revision optimized for stable performance and enhanced resistance to industrial electrical noise. It is engineered for long-term deployment in mission-critical environments, providing the high-speed backplane communication necessary for real-time process monitoring and control.

Application Areas This PLC/DCS module is primarily used in large-scale process industries such as chemical manufacturing, oil and gas refining, and pharmaceutical production. It is typically installed in field control stations to manage complex automation loops and integrate diverse field instrumentation into the overarching plant management system.

Product Specifications

• Weight: 0.28 kg
• Dimensions: 130 mm x 115 mm x 32 mm
• Country of Origin: Japan
• Operating Temperature: 0°C to 50°C (Standard industrial grade)

Operational Precautions

• Ensure the system is powered down before inserting or removing the module to prevent electrical spikes that could damage the system bus.
• Inspect the connector pins for any signs of oxidation or physical deformation before installation.
• Verify that the module is correctly seated in the rack and the retaining screws are tightened to ensure a reliable ground connection.
• Maintain the control cabinet’s humidity levels within the specified range to prevent condensation on the module’s internal circuitry.
