ABB 3BSE008508R1 | S800 I/O DI810 Digital Input Module

The ABB 3BSE008508R1 (DI810) is a high-performance digital input module from the S800 I/O series. It is designed to interface with field-side digital sensors, providing 16 channels of 24V DC input. This module is renowned for its reliability, modularity, and ability to operate in demanding industrial environments, making it a cornerstone for distributed control systems (DCS) like the ABB Ability System 800xA.

Technical Specifications

Parameter	Detail
Product Model	DI810 / 3BSE008508R1
Manufacturer	ABB
Number of Channels	16 Digital Inputs
Voltage Rating	24V DC
Current Consumption	50 mA (typical)
Operating Temperature	-40°C to +70°C
Mounting	S800 I/O Mounting Base (TU810, TU812, etc.)
Dimensions (Approx.)	119mm x 45mm x 102mm
Weight	0.25 kg
Country of Origin	Sweden / Estonia

Application Fields

Process Automation: Oil & Gas, Petrochemical, and Chemical plant monitoring.
Power Generation: Boiler control and auxiliary equipment monitoring in power plants.
Manufacturing: Automated assembly lines and robotic cell integration.
Water Treatment: Monitoring flow meters, limit switches, and pressure sensors.

Usage Instructions

Mounting: Snap the module onto the appropriate S800 terminal unit (MTU). Ensure the module is securely locked in place with the mechanical release lever.
Wiring: Connect field signals to the corresponding terminals on the MTU. The DI810 supports standard 24V DC sensor signals.
Addressing: Configure the module via the control system software. Ensure the module address matches the physical slot assigned in the I/O configuration.
Indicators: Use the front-facing LED indicators (Channel Status and Fault) for real-time diagnostics. Green LEDs indicate active inputs, while red LEDs indicate hardware faults.
Hot Swapping: The DI810 supports hot swapping, allowing you to replace the module during operation without shutting down the entire control system (when used with appropriate power distribution).

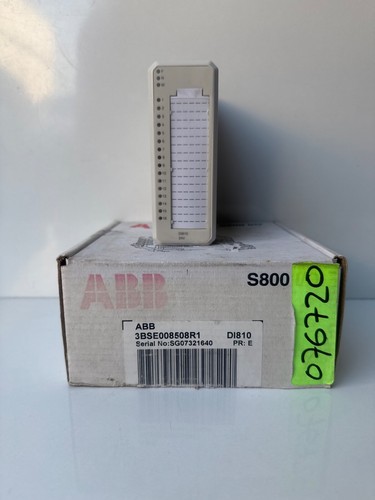

ABB 3BSE008508R1 Module S800 1/0 DI810 24V

Frequently Asked Questions (Q&A)

Q: Is the DI810 compatible with all S800 terminal units?
- A: It is compatible with most standard vertical and horizontal mounting bases (e.g., TU810, TU812). Always verify the specific MTU datasheet before installation.
Q: Does this module require an external power supply?
- A: Yes, 24V DC power is required for the field inputs, typically provided via the terminal unit’s power distribution terminals.
Q: Can I use this for safety-related applications?
- A: The DI810 is a general-purpose I/O module. For Safety Instrumented Systems (SIS), you should use the designated S800 High Integrity (HI) modules.
