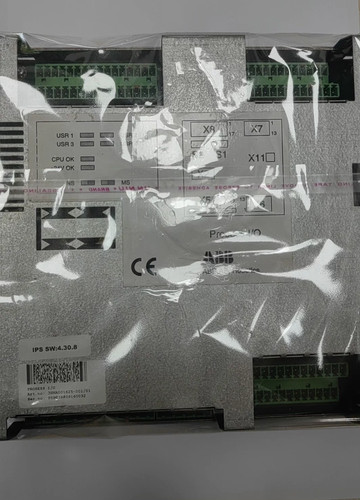

The ABB 3HNA001625-001/01 is an original main control unit printed circuit board (PCB) designed for ABB IRB industrial robotic arms. Functioning within the S4C, S4C+, or IRC5 controller generations (depending on the specific cabinet sub-architecture), this motherboard coordinates the central processor functions, path planning calculations, and real-time synchronization between the teach pendant and the drive system module. Built to military-grade industrial tolerances, it ensures smooth axis movement and precise positional reproducibility in heavy manufacturing environments.
Key Product Specifications
- Part Number: 3HNA001625-001/01
- Manufacturer: ABB Robotics
- Module Type: Main Controller Board / CPU Core Unit
- System Series: IRB Robotic Controllers (S4C+ / IRC5 series compatible)
- Communication Protocols: Interbus, Profibus, DeviceNet, and proprietary ABB serial links
- Memory: Integrated Flash memory for system booting, non-volatile RAM for robot positioning and user path programs
- Interface Connections: Connectors for main drive control interface, teach pendant communication, and localized digital I/O
- Dimensions: 260 mm x 210 mm x 30 mm
- Weight: 0.88 kg
- Country of Origin: Sweden / Germany
Application Fields
The 3HNA001625-001/01 serves as the central logic unit across a variety of robotic tasks:
- Automotive Welding: Executing rapid and continuous path trajectories for spot and arc welding robots.
- Material Handling & Pick-and-Place: Coordinating high-speed vision tracking and gripping sequences in packaging rows.
- Precision Painting & Coating: Synchronizing arm speed with fluid delivery valves to maintain consistent layer thickness.
- Palletizing & Logistics: Managing the heavy-payload kinetics of multi-axis stacking arms in distribution hubs.
Usage & Installation Instructions
- De-energize Equipment: Before opening the robot controller cabinet, turn off the main breaker and disconnect the incoming power supply. Wait at least 5 to 10 minutes for the internal drive capacitors to fully discharge.
- Anti-Static Precautions: This control board features dense microprocessor networks that are highly vulnerable to Electrostatic Discharge (ESD). Always wear an ESD wrist strap bonded to the cabinet chassis during handling.
- Cable Labeling: Carefully tag and log every ribbon cable, fiber-optic connector, and power lead before removing them from the faulty control board to prevent incorrect wiring during reassembly.
- Board Seat Verification: Slide the new 3HNA001625-001/01 into its rack guide slot. Push gently until the rear pins mesh cleanly into the backplane. Fasten the faceplate screws securely to establish a proper chassis ground.
- Firmware Restoration: Upon powering up, you may need to reload the robot’s base parameters and system configuration (
sys.cfg) via the teach pendant or RobotStudio to align the new PCB with the specific mechanical parameters of your IRB arm model.
Q&A – Frequently Asked Questions
Q: Can a 3HNA001625-001/01 directly replace a board with a different dash number suffix (e.g., -001/02)? A: Suffix revisions like /01 or /02 frequently mean internal circuit layout updates or minor chip modifications. While they are usually backward compatible, you must confirm that your current system software version recognizes the specific hardware ID of the /01 card.
Q: What are the primary symptoms of this board failing? A: Typical failure indicators include persistent “Communication Lost with Controller” errors on the teach pendant, a failure of the system to clear its boot sequence, status LED patterns frozen on red, or erratic path deviations during routine program loops.
Q: Does this card contain an onboard battery? A: Yes. Many ABB robot control unit motherboards feature a small lithium backup battery to retain volatile RAM and critical axis calibration data when main power is cut. If changing this board, verify if the backup battery needs to be initialized.
Product News: Keeping Robotic Production Lines Moving
The 3HNA001625-001/01 ABB remains a crucial replacement part for facilities looking to avoid the massive expenditures of upgrading entire functional robotic cells to modern IRC5 or OmniCore setups. Because these original PCBs are essential for maintaining older IRB configurations, specialized automation suppliers keep fully tested, static-shielded inventory ready for hot-delivery. Recent repair workflows utilize advanced automated testing equipment to simulate multi-hour operational cycles, guaranteeing that these legacy-support boards deliver the exact millimetric precision required for fast-paced modern manufacturing environments.
