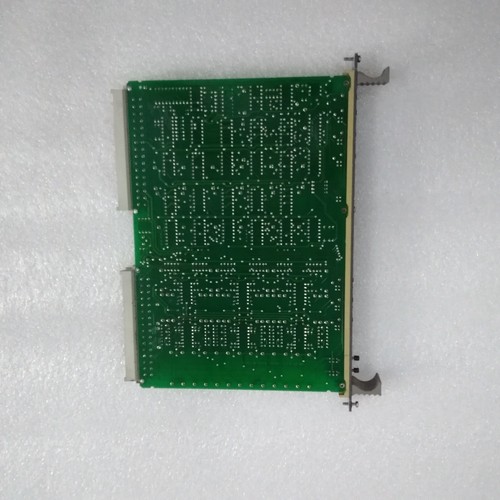

The ABB HIEE400103R1 CSA463AE is a high-performance control interface board designed for integration within ABB’s specialized industrial automation and excitation systems. Engineered for precision and reliability, this module serves as a critical communication and processing node, ensuring seamless data exchange between controller units and field devices. Its robust architecture is built to withstand demanding industrial environments while maintaining high-speed signal integrity.
Product Specifications
Technical Parameters
- Model Identification: HIEE400103R1 / CSA463AE
- Manufacturer: ABB
- Function: Control and Interface Board
- Input Voltage: Standard system-level DC supply
- Communication Protocols: Proprietary ABB high-speed bus
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
Physical Datasheet
- Dimensions: 230mm x 160mm x 25mm
- Weight: 0.45 kg (approx. 1.0 lbs)
- Country of Origin: Switzerland
- Mounting Type: Rack-mounted / Plug-in module
Application Fields
This module is primarily utilized in large-scale power generation and heavy industrial sectors. Specific applications include:
- Static Excitation Systems (SES): Managing the field current of synchronous generators.
- Power Plant Automation: Serving as a bridge in DCS (Distributed Control Systems).
- Industrial Drive Systems: High-power motor control and monitoring.
- Grid Stabilization: Integration into voltage regulation hardware.
Product Usage Instructions
- Pre-Installation Inspection: Before handling the board, ensure you are wearing an anti-static wrist strap to prevent ESD damage. Check the pins for any physical deformities.
- Installation: Power down the rack before insertion. Align the CSA463AE board with the designated slot rails and push firmly until the connectors are fully seated. Secure the faceplate screws.
- Configuration: Depending on the system firmware, you may need to set jumpers or dip switches on the board to match the specific bus address required for your system architecture.
- Maintenance: Periodically check for dust accumulation. Use dry, compressed air for cleaning and ensure cooling fans in the rack remain functional to prevent overheating.
Q&A – Frequently Asked Questions
Q: Is the HIEE400103R1 interchangeable with other CSA series boards? A: While it belongs to the CSA family, the HIEE400103R1 has specific firmware compatibility requirements. Always verify the revision number of your existing hardware before replacement.
Q: What is the typical lead time for this component? A: Due to its specialized nature in power systems, availability can vary. For stock status and pricing, you can reach out through our ABB HIEE400103R1 CSA463AE Inquiry Portal.
Q: Does this board support hot-swapping? A: It is highly recommended to power off the sub-rack before removing or inserting the module to avoid electrical transients that could damage the sensitive logic circuits.
