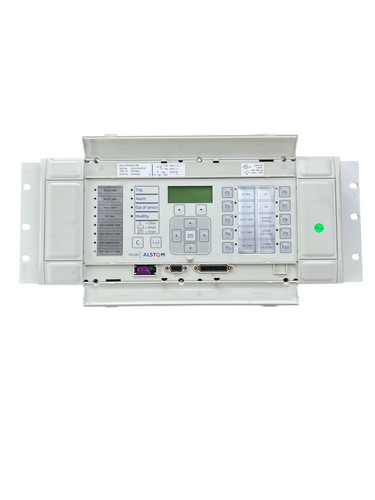

The Alstom (now Schneider Electric) MiCOM P443 is a highly reliable distance protection relay designed for the protection of high-voltage transmission lines. It provides comprehensive protection, control, and monitoring functions in a single, compact unit. Known for its high-speed fault clearance and advanced digital signal processing, the P443 is a trusted solution for utility and industrial transmission networks worldwide.
Product Specifications
| Feature | Specification |
| Model | Alstom MiCOM P443 |
| Part Number | P44331NF6N0710M |
| Protection Type | Full Scheme Distance Protection |
| Series | MiCOM P400 |
| Voltage Range | Suitable for HV/EHV Transmission |
| Weight | Approx. 6.5 kg |
| Origin | United Kingdom / Global |
Applications
The P443 is specialized for high-voltage grid stability:
- Transmission Line Protection: Distance protection for overhead lines and underground cables.
- Backup Protection: Acts as a reliable backup for busbar and transformer protection.
- High-Speed Clearing: Critical for maintaining system stability during phase-to-phase and phase-to-earth faults.
- Auto-Reclose: Integrated single-phase and three-phase auto-reclose functionality.
- Fault Locating: Accurate distance-to-fault calculation to minimize repair downtime.
Usage Instructions
- Installation: Rack-mount the relay in a standard 19-inch switchgear panel. Ensure the chassis is securely grounded to a low-impedance substation earth.
- Wiring: Connect CT (Current Transformer) and VT (Voltage Transformer) inputs to the rear terminals. Verify the phase sequence and polarities carefully to ensure distance measurement accuracy.
- Configuration: Use the MiCOM S1 or Epsilon software to upload the relay settings. Configure the distance zones (Zone 1, Zone 2, etc.) based on the transmission line impedance calculations.
- Commissioning: Perform secondary injection testing to verify trip logic, zone reaches, and timing.
- Monitoring: Regularly check the relay front panel for alarm status and event logs to monitor line health.
Frequently Asked Questions (Q&A)
Q: Is the P443 suitable for series-compensated lines?
A: Yes, specific versions of the P443 are capable of handling series-compensated lines, provided the relay settings and logic are configured correctly.
Q: What is the primary function of the “P44331…” part number?
A: This code defines the specific hardware and software features, such as communication interfaces, auxiliary power range, and I/O count. It is critical to match this exactly for spare parts replacements.
Q: Can this relay be integrated into a SCADA system?
A: Yes, it supports multiple communication protocols like IEC 60870-5-103 or DNP3 to integrate seamlessly with substation automation systems.
