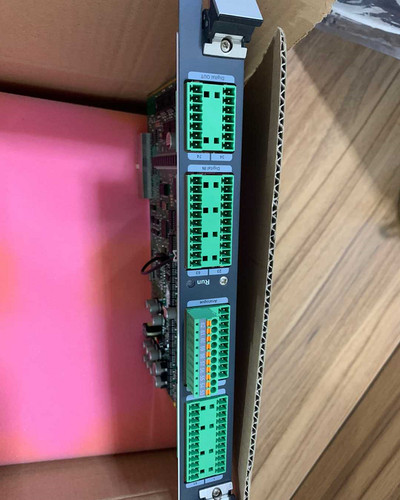

The Deif PCM5.1 is a sophisticated control module designed for modern power management and engine control applications. As part of Deif’s specialized controller lineup, the PCM5.1 provides a versatile platform for monitoring, protecting, and managing generators and power distribution systems. This module is renowned for its reliability in marine, offshore, and land-based power plant environments, offering a high degree of flexibility through programmable logic and robust communication interfaces.
Key Product Specifications
- Module Type: Power Control and Management Module
- Model: PCM5.1
- Operating Voltage: 12/24 V DC (8 V DC to 36 V DC continuous)
- Power Consumption: Max. 10 W
- Inputs/Outputs: Configurable digital and analog I/O ports
- Communication: CAN bus, RS485, and Ethernet (Modbus protocol support)
- Protection Rating: IP20 (Rear), IP65 (Front when panel mounted)
- Dimensions: 160 mm x 120 mm x 55 mm
- Weight: 0.85 kg
- Country of Origin: Denmark
Application Fields
The PCM5.1 is a preferred choice for critical power applications, including:
- Marine Power Management: Controlling shipboard generators and handling load-sharing duties.
- Offshore Platforms: Managing emergency power systems in harsh maritime environments.
- Data Centers: Ensuring seamless transition and synchronization of backup power units.
- Critical Infrastructure: Providing reliable control for hospital and telecommunication power plants.
Usage Instructions
- Mechanical Installation: Mount the PCM5.1 in a standard cutout on the control cabinet door or on a DIN rail inside the enclosure using the appropriate mounting brackets.
- Wiring and Connection: Connect the DC power supply to the designated terminals. Ensure all CT (Current Transformer) and VT (Voltage Transformer) connections are phased correctly to ensure accurate power measurement.
- Software Configuration: Use the Deif Utility Software to configure the control parameters. Define the protection setpoints, alarm levels, and logic sequences required for your specific engine or generator type.
- Commissioning: Perform a functional test by simulating various alarm conditions (e.g., overspeed, low oil pressure) to verify that the PCM5.1 triggers the correct protective actions.
Q&A – Frequently Asked Questions
Q: Does the PCM5.1 support remote monitoring? A: Yes, via its integrated communication ports, the PCM5.1 can be connected to a SCADA system or a remote HMI for real-time data visualization and control.
Q: Can this module be used for parallel operation of multiple generators? A: Absolutely. The PCM5.1 is specifically designed to handle complex load-sharing and synchronization tasks for multi-generator systems.
Q: What happens if the module loses DC power? A: The PCM5.1 features non-volatile memory that stores all configuration data and event logs, ensuring that no critical information is lost during a power interruption.
Product News: Advancing Sustainable Power Management
The latest updates to the Deif PCM5.1 firmware now include enhanced support for hybrid power systems, allowing for better integration with battery storage and renewable energy sources. Deif continues to invest in the PCM series to meet the rigorous Tier 4 Final and Stage V emission control requirements, providing operators with the tools needed for more efficient and environmentally friendly power generation. Specialized technical distributors are reporting a significant increase in the adoption of PCM5.1 modules for retrofitting older power plants, citing its ease of integration and superior diagnostic capabilities as key factors for the upgrade.
